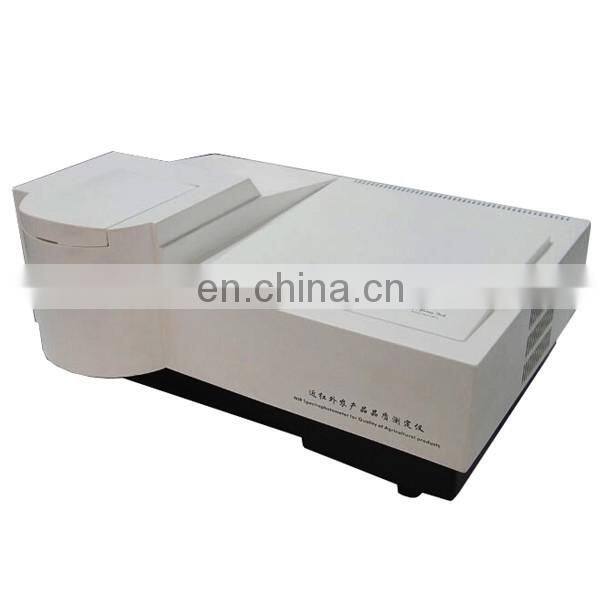

S400 near infrared agricultural product quality analyzer

Brief introduction:

NIRS S400 is grating diffuse type, high precision of near infrared photometric, can be applied to the determination,

Mainly used for the solid, powder and granule, coating sample chemical and physical properties, such as fast nondestructive quantitative and qualitative analysis.

Features:

1. Nir qualitative and quantitative analysis software packages, random provide external laptop computer, data collection and analysis process control software can run Windows interface, implement single channel spectral scan, self-checking correction, machine modeling, testing and transfer model, sample analysis, multi-channel operation, channel scan curve store/display more/print reports, and other functions;

2. Japan imported from PBS detector with refrigeration, integral ball reflectivity by more than 95%;

3. The rotary sample background is fixed, the sample can rotate as multifaceted, solve the problem of uneven mixing;

4. Overhead type sample pool, 2 kinds of sample pool for different sample;

5. The scanning speed is less than 2 min.

Technical parameters:

Wavelength range: 1300-2500 nm

Wavelength repeatability: 1 nm or less

The scan interval: 4, 8, 16

Absorbance repeatability: 0.002 A or less

Signal to noise ratio: 103 or higher

Display: 800 x 600 true color LCD

Interface: serial communication port

Print: standard ink jet printer
