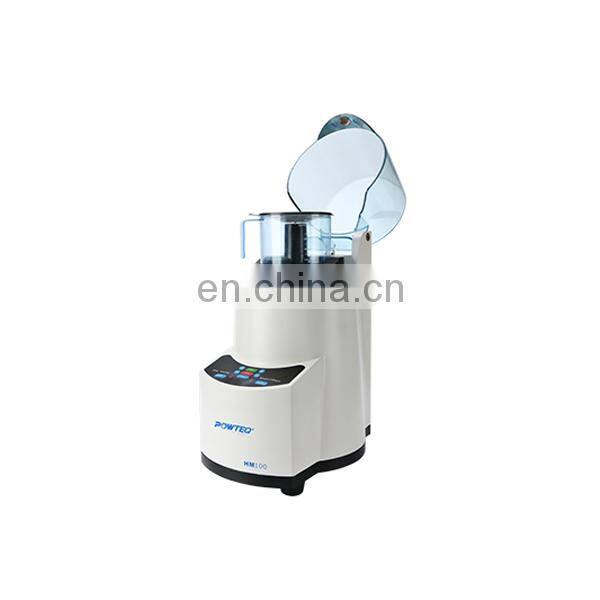

HM100 Knife Mill Grinding Machine

Introduction
The HM100 Knife Grinder is an instrument specially designed for pulverization and homogenization. It can pulverize the sample to analytical fineness in a few seconds, and the pulverization result is highly homogenized to meet laboratory operation and analysis. Various professional requirements set forth in the process.
The HM100 has a two-blade cutter head placed at the center of the bottom of the grinding cup. The cutter heads maintain a certain height between the cutter heads and start to rotate under the motor drive of 900 watts. Reliable comminution and homogenization results through the cutting action of a sharp steel edge. Depending on the direction of rotation, a blunt surface can be selected for coarse comminution of large samples, or a tough surface for fine comminution of samples. The motor speed is electronically controlled and preselectable. The constant speed ensures efficient and high quality pulverization and homogenization. It takes only 10 to 30 seconds to comminute the more difficult-to-treat sample to obtain an analytical grade homogenized sample.
Application field
Suitable for sample types: water-containing, oil-containing, fat-containing, elastic, fibrous, soft, and tough samples
Typical sample application
*Agriculture: grain, grain, feed, etc.
* Biology: mouse tissue, plant leaves, seeds, seedlings, germs, etc.
* Drugs: Chinese herbal medicines, tablets, etc.
* Food: dried melon, vegetables, frozen food, cocoa, candy, candied fruit, meat
Performance advantage
* Industrial motor, powerful, 900 watts, controllable speed
* Sample volume up to 700 ml
*The instrument has an electromagnetic lock that cannot be opened during the grinding process.
* Accessories can be autoclaved
* The operating mode can be directly selected on the control panel
* With automatic intermittent mode, forward rotation mode, reverse rotation mode and click mode
* Can store multiple sets of programs
* coarse crushing and fine grinding in one step
* A variety of materials for the grinding cup to choose from
* Easy to operate and quick to start
* The product has passed CE certification.

Technical Parameters
Injection size: 10~60 mm
Sample size: < 300 microns
Speed: 2000~10000 rpm (maximum speed up to 15000 rpm), digital display, adjustable speed
Time range: 0:01~9:59 (minutes/second), digital display
Sample batch throughput: 50~700ml
Number of blades: 2
Head diameter: 119mm
Maximum speed around the cutter head: 62m/s
Intermittent drive: Yes
Rated power: 900 watts
Rated voltage: 220 volts, 50 Hz
Instrument size (horizontal * vertical * height): 260 * 343 * 454 mm
Package size (horizontal * vertical * height): 466 * 516 * 630 mm
Instrument weight: 16 kg
