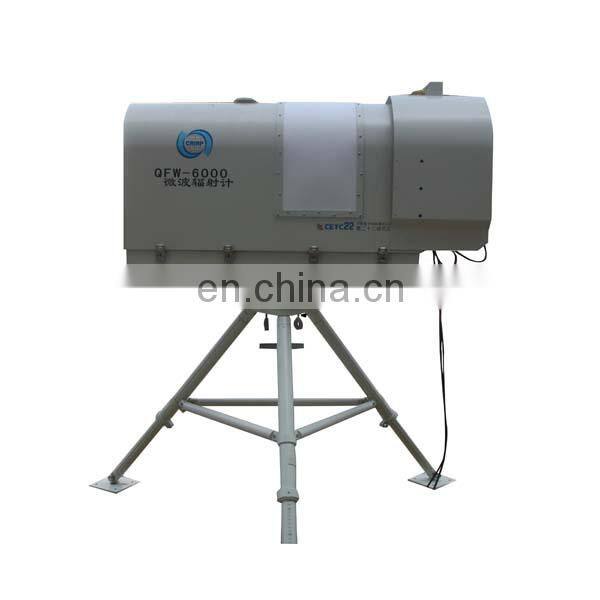

QFW-6000 Atmospheric Microwave Radiometer

Introduction:

Microwave radiometer (QFW-6000) is based on meteorological observation equipment of atmospheric microwave remote sensing technology. Through remote sensing measurement of atmospheric microwave radiation, inversion of tropospheric atmospheric temperature, humidity profile, atmospheric integrated water vapor volume and integral cloud water content are obtained. It can realize the monitoring and early warning of the atmospheric stratification of the mesoscale strong weather system, analyze the structure of the inversion layer, evaluate the atmospheric stability, identify the smog level, and say the diffusion trend of the ash pollution. It is a useful supplement to conventional high-altitude observations.

Features:

All-weather, automatic long-term stable operation, effective detection below the moderate rain.

It has the ability to detect atmospheric temperature profiles, humidity profiles, atmospheric integrated water vapor content, path liquid water content, cloud bottom temperature and altitude within the troposphere.

The detection of the atmospheric temperature profile of the boundary layer can be carried out.

In the daily operation process, it can automatically set the calibration in real time, and has the ability to perform absolute calibration from time to time.

It adopts modular structure design, stable and reliable operation, easy to install and adjust, convenient for maintenance and repair, and can be expanded according to actual needs.

The external computer application software has complete control and data processing functions, and the operation interface is simple and convenient to use.

It has the ability to resist external electromagnetic interference and is not affected by radio frequency signals such as radio and mobile phones.

The equipment has strong adaptability to the environment, reasonable structure of the body, and the ability to withstand wind and moisture.

The integral components and electrical performance meet the safety requirements such as lightning protection.

It has the functions of remote monitoring and alarming of equipment running status.

Technical Parameters:

 Integration time: the minimum integration time is ≤1s, and the integration time is user adjustable;

Profile sampling rate: the lowest sampling rate ≤ 10s, the sampling rate is user adjustable;

Outdoor equipment working temperature: -40 ° C ~ +50 ° C, storage temperature: -40 ° C ~ +60 ° C;

Relative humidity of outdoor equipment: 0% to 100%;

Indoor equipment working temperature: 0 ° C ~ +40 ° C, relative humidity: 20% ~ 80%;

Atmospheric pressure: 650 hPa to 1100 hPa;

Power supply voltage: 220V ± 22V;

Frequency: 50Hz ± 1Hz;

Power supply: ≤300W (the rain-proof drying module heating module is not turned on).
