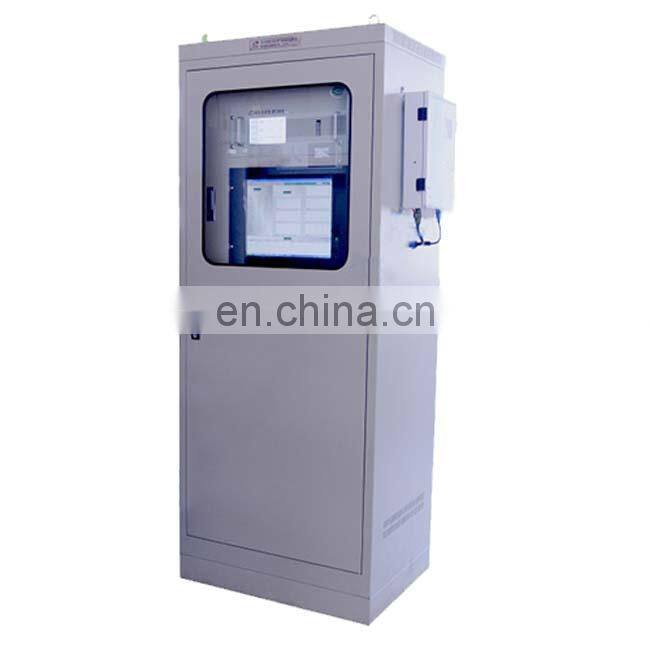

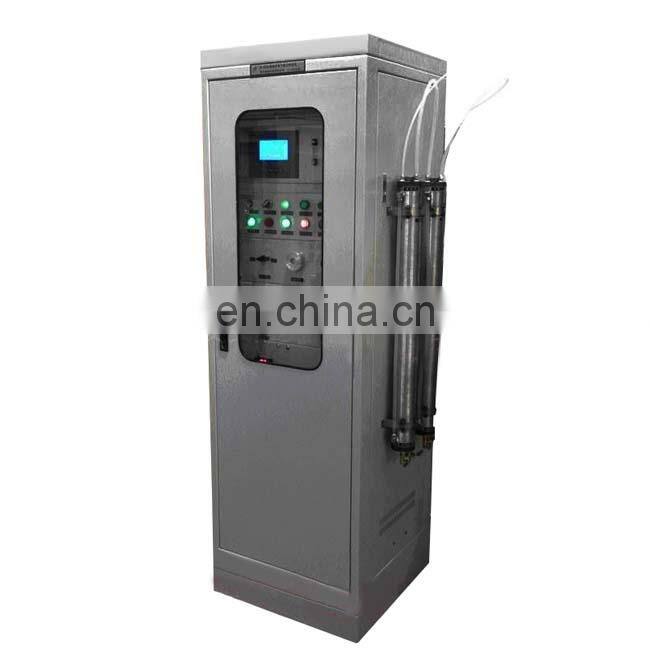

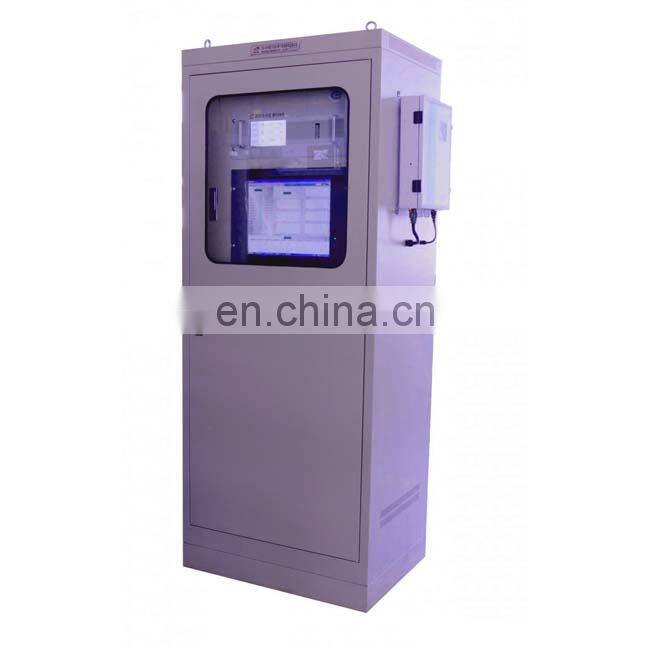

TR-9300 continuous emission monitoring system for flue gas emissions

Name: TR-9300 continuous emission monitoring system for flue gas emissions
Brand: JUNENG
Price: USD $3,980 - 42,000 / Set

FOB Price

USD $3,980 - $42,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

JUNENG

Place of Origin:

Shaanxi, China

Model Number:

TR-9300

Product Description

1. Overview

The TR-9300 flue gas continuous monitoring system is a combination of the world's advanced online analytical technology and China's environmental monitoring technology, and has been carefully crafted through our company's many years of experience in the industrial process field. The system complies with the environmental protection industry standard HJ/T76-2007 of the People's Republic of China and has obtained the “Environmental Protection Product Certification Certificate” issued by China Environmental Protection Industry Association. The system is applied to the on-line monitoring of gaseous pollutants (SO2, NOx, CO, CO2, O2) and solid pollutant dust in the flue gas as well as temperature, pressure, humidity and flow, and generates maps and environmental reports through the data acquisition and processing system. Data can be passed to all levels of environmental protection.

2. Composition

Gaseous pollutant monitoring subsystem (SO2, NO, O2, CO, CO2, etc.)

Particle monitoring subsystem (dust)

Flue gas parameter monitoring subsystem (flue gas temperature, pressure, flow rate, humidity)

Data Processing Subsystem (DAS System)

The data transmission system is composed.

3. System features

Small system maintenance

System modular structure design, flexible configuration

Strong anti-interference performance

Easy system operation and easy maintenance

High system measurement accuracy

High system data acquisition accuracy

Long system life

4. Application field

The system is applied to various power plants, chemical plants, steel plants, heating plants, cement plants, waste incineration plants, and various types of fuel oil, coal, gas boilers.

5. Technical parameters

Monitoring item	Measurement method	Measurement range	Zero drift	Range drift	Response time (T90)	Linear error	Output signal
SO2	Infrared or ultraviolet	0~100~2000PPm	±1%FS/7d	±1%FS/7d	≤12	≤±1%FS	RS-232/485 4~20mA
NOx	Infrared or ultraviolet	0~100~2000PPm	±1%FS/7d	±1%FS/7d	≤12		RS-232/485 4~20mA
CO	Non-dispersive infrared absorption method	0~100~2000PPm	±1%FS/7d	±1%FS/7d	≤12		RS-232/485 4~20mA
O2	Electrochemical or Magnetic pressure type	0~25%	±1%FS/7d	±1%FS/7d	≤10		RS-232/485 4~20mA
particulates	Optical method or laser	0~100~2000mg/m3	±2%FS/7d	±2%FS/7d	≤1	≤±3%FS	4~20mA
Flow rate	Differential pressure sensing	0~40m/S	±5%FS/7d	±5%FS/7d	≤15	≤±1%FS	4~20mA
pressure	Differential pressure sensing	-40~40KPa	±2%FS/7d	±2%FS/7d		≤±1%FS	4~20mA
temperature	Thermocouple	0~250℃	±1%FS/7d	±1%FS/7d		≤±1%FS	4~20mA
humidity	Capacitance method	0~100%	±2%FS/7d	±2%FS/7d	≤10	≤±1.5%FS	4~20mA
