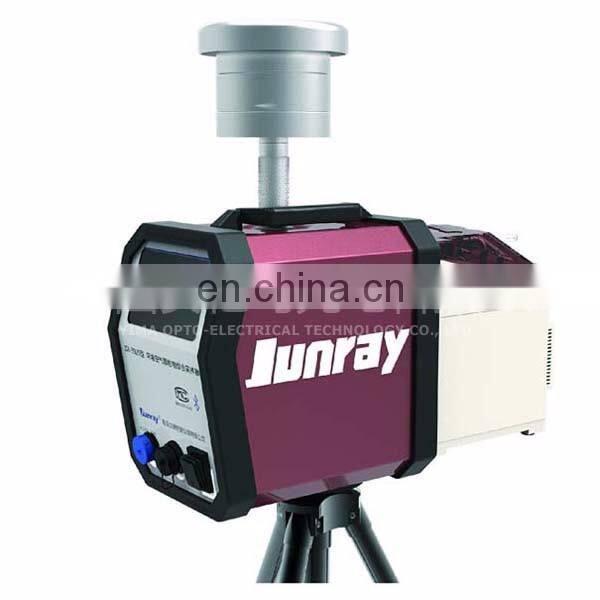

ZR-3920G -type air particulate samplers ( high negative pressure type ) application filter weighing method of capturing the ambient atmosphere of total suspended particulates (TSP) and respirable suspended particulates (PM10, PM2.5). For environmental protection , health, labor , safety supervision , military , scientific research, education and other departments for routine monitoring of aerosols , especially for heavy metals or SVOC ambient air sampling .
Imported high vacuum brushless pump , load capacity greater than 20kPa;
Brownout protection, automatic memory power-down time , power outages continue to sample and then calls ;
Automatic measuring atmospheric pressure , according to the pressure, temperature to calculate the cumulative sample size ;
TSP / PM10 / PM2.5 sampling head made of aluminum alloy material , anti-static adsorption ;
Private guards, when field work, can prevent rain and snow ;
Chinese large-screen black and white display for bright light outside observation equipment
Operational data ;
USB data export function , optional sampling data print function ;
Optional SVOC canister samples were SVOC .
Technical Specifications
main parameters |
Parameter range |
Resolution |
Accuracy |
Sampling flow |
(50~200)L/min |
0.1L/min |
Better than ±5.0% |
The maximum sampling volume |
9999999.9L |
0.1L |
Better than ±2.0% |
Sampling time |
1min~99h59min |
1min |
Better than ±0.2% |
Atmospheric pressure |
(80~106)kPa |
0.01kPa |
Better than±0.53kP |
Load capacity |
100L / min flow rate when the load capacity of > 20kPa |
||
Operating Temperature |
(-20~50)℃ |
||
Operating Voltage |
AC220V±10% 50Hz |
||
Noise |
<68dB(A) |
||
Host size W × D × H |
(340×380×430)mm |
||
Total Weight |
About 12kg |
||
