Product Details
| Brand Name | CF | Place of Origin | Beijing, China | |
| Model Number | CF-06 GPS Radiosonde |
Product Description
1. Product Overview
The Beidou / GPS Radiosonde System consists of ground receiver equipment and radiosonde. The radiosonde can be launched to the air through different platforms for conducting detection missions and collecting the meteorological information and environmental information during its flight. The ground receiver equipment can receive the radio signals transmitted by the radiosonde, and then demodulate the humidity, temperature, pressure, wind direction, wind speed and other meteorological data through calculation. The system utilizes the high-precision positioning function of the Beidou/GPS satellite to perform auto-tracing on the radiosonde. The detection data is accurate with high level of automation.
2. Product Composition
The Beidou/GPS Radiosonde System mainly has two components: the ground receiver equipment and the radiosonde.
3. Radiosonde Product Series
3.1. Balloon-carried Radiosonde Series
The balloon-carried radiosonde is launched to the air by being carried by a weather balloon. It can provide the temperature, humidity, pressure and wind data at high level. The product supports high data-obtaining rate and controls the data quality through error detection and correction.

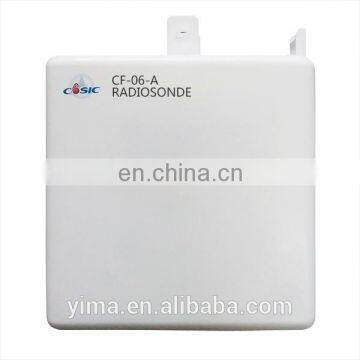

Fig. Balloon-carried radiosonde
Fig. Releasing of balloon-carried radiosonde
Technical parameters:
Temperature sensor | |
Type | Bead resistance |
Measurement range | -90℃~ +60℃ |
Resolution | 0.1℃ |
Accuracy | 0.5℃ |
Humidity sensor | |
Type | Film capacitor |
Measurement range | 0 ~100%RH |
Resolution | 1%RH |
Accuracy | 5%RH |
Air pressure measurement | |
Measurement range | 3hPa ~ 1080hPa |
Resolution | 0.1hPa |
Accuracy | 100hPa ~1080hPa: 1.0hPa |
3hPa~100hPa: 0.5hPa | |
Wind measurement | |
Wind speed accuracy | 0.15m/s |
Wind speed resolution | 0.1 m/s |
Wind direction accuracy | 2° |
Wind direction resolution | 0.1° |
Size and Weight | |
Size | 220×110 ×70(mm*mm) |
Weight | 200g±20g |
Dry-cell battery | |
Voltage | 6V nominal |
Working time | >140mins |
Remote measurement | |
Frequency range | 400~406MHz or 425~443MHz |
Output power | 100mW (maximum) |
Modulation mode | FSK |
Data transmission rate | 2400bit/s |
Measurement cycle | 1 Hz |
Product series:
Model | Function |
| ||||
Temperature (T) | Humidity (H) | Air Pressure (P) | GPS Positioning | Beidou Positioning | Remarks | |
CF-06-A | √ | √ | √ | √ |
| No air pressure sensor; air pressure is obtained by reverse calculation of height data |
CF-06-AP | √ | √ | √ | √ |
| Obtaining air pressure data from the air pressure sensor |
CF-06-W |
|
|
| √ |
| Measuring the wind only |
CF-06-WT | √ |
|
| √ |
| Measuring the wind and temperature |
CF13ANP | √ | √ | √ |
| √ | No air pressure sensor; air pressure is obtained by reverse calculation of height data |
CF13A | √ | √ | √ |
| √ | Obtaining air pressure data from the air pressure sensor |
CF13AW |
|
|
|
| √ | Measuring the wind |
CF13AWT | √ |
|
|
| √ | Measuring the wind and temperature |
