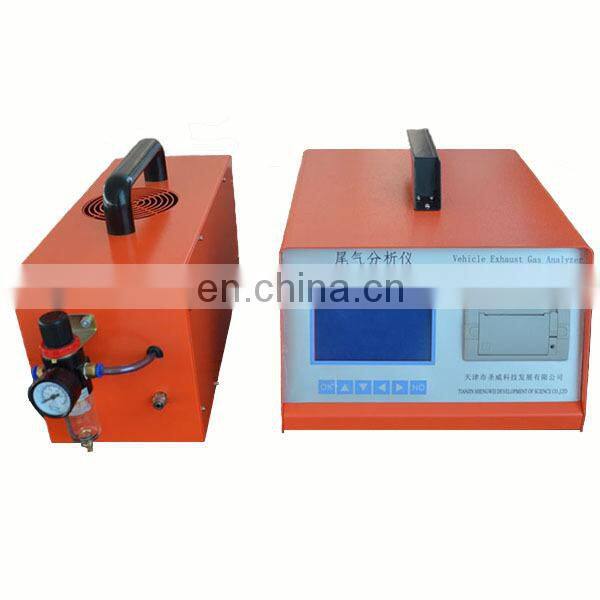

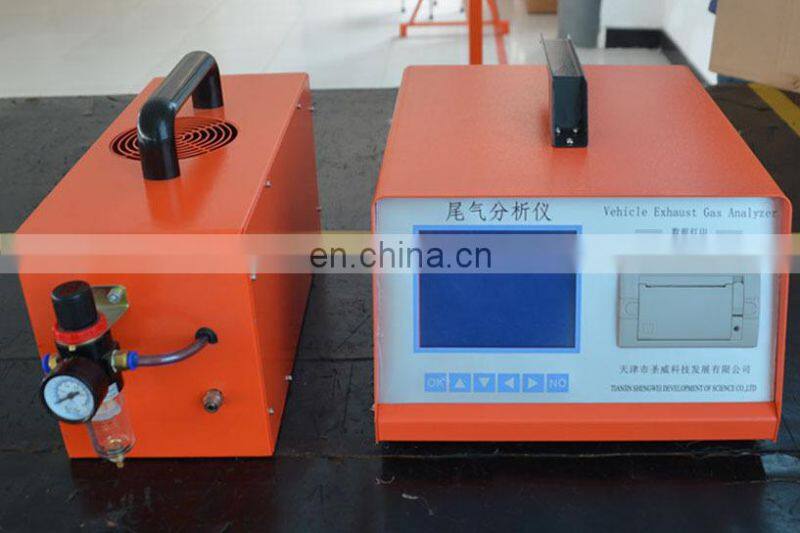

SV-5QHD Diesel Exhaust Component Analyzer Vehicle Emission Gas Detector

SV-5QCD Diesel exhaust component analyzer

Introduction

It applies to the environmental protection department, mining-related business sector, automobile and motorcycle manufacturers, engine manufacturers, car repair business, police testing station, traffic detection stations and research departments of vehicle maintenance, vehicle factual, road inspection and scientific research and other vehicles exhaust gas component inspection.

Main features

♦ based on national GB / T18285-2005 standards and upgrades for testing for diesel exhaust gas component concentration, meet JJG688-2007 verification procedures more than up to the national level I verification standards.

♦ Use Japan HORIBA imported movement, uses the principle of non-dispersive infrared absorption method, measure vehicle emissions of HC, CO, CO2 analysis by microcomputer, using an electrochemical measurement principle O2, NO concentrations.

♦ Add visible particulate matter emissions from diesel vehicles dedicated cleaning filter, reducing particulate contamination damage to the movement of imports, more accurate measurement of diesel exhaust gas component content in a variety of gases.

♦ with idle, two-speed idle test function, it can be equipped with the oil temperature and speed measurements.

♦ Configuration 7-inch high-brightness LCD display with support for multilingual operating menu.

♦ Automatic calculation, display the value of the excess air ratio λ.

♦ equipped with RS-232C digital serial communication interface to facilitate networking.

♦ with more than 500 groups of data storage, access function.

♦ built-in printer, print can input and output the license plate number and detection time.

♦ Configurable car power inverter, easy to carry out vehicle exhaust testing.

The main technical parameters

♦ Environmental conditions:

 Temperature: 0 ~ 40 ℃

 Humidity: 95%

 Atmospheric pressure: 70.0 ~ 106kPa

 Power: AC220V ± 10%; 50Hz ± 1Hz

♦ Measure range:

CO:    0~15  10^-2vol
HC:     0~10000  10^-6vol
CO2:  0~20  10^-2vol
O2:     0~25  10^-2vol
NO:    0~5000  10^-6vol

λ:   0.8-1.2 (effective value)
Speed(RPM):     0rpm~9990rpm (optical)
Oil temperature: 0℃~150℃ (optical)

♦ Indication Error:

♦ Preheating time:10 min.

♦ Weight :10kg
♦ Volume:Control unit :420*320*250(mm)

                     Test   unit: 170*200*400(mm)
