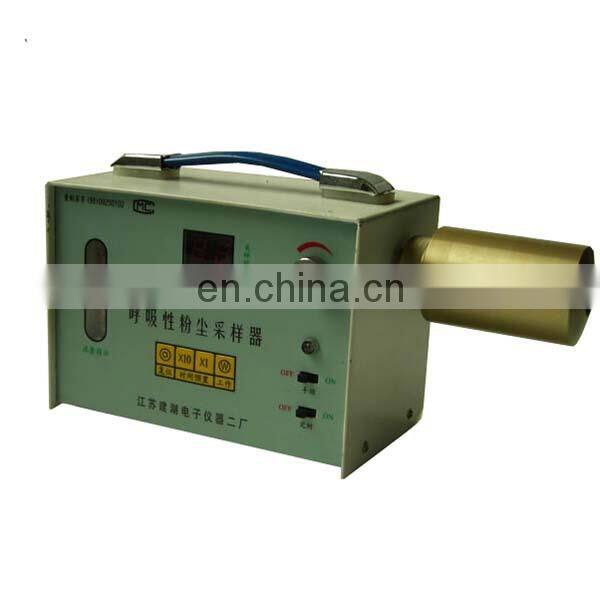

BFC-35B Respirable Constant Sampling Rate Dust Sampler

    BFC-35B type respirable dust sampler, is our latest development of total dust and respirable dust sampler dual . Respirable dust sampling head collected dust particle consistent with BMRC curve. Achieve GB16225-1996, GB-16248-1996, GB16238-1996 three countries respirable dust hygiene standards. Dust-laden air that is collected kinetic diameters were 7.07um or less, and an aerodynamic diameter 5um dust collection rate of 50% . Due to the special design of the blade of the pump, the flow is stable, no pulse, accurate measurement.

 Features

 1.Micro processing technology, humanized design, liquid crystal display

 2.With buit-in  high performence nimh battery it can work continuously for a long time

 3.Charging and Undervoltage indication

 4.simple operation and durable

 5.highly accurate timing

 6. AC/DC compatible

 7 easy and fast to choose time ,1-999 mins

Technical parameters

1, the sample flow
a, total dust : Sample flow : 10 ~ 25L / min;
b, respirable dust : Sample Flow : 20 L / min.
2, the working voltage : 7.2V
3, the system of negative pressure :> 3000Pa
4. Timing range : 0 ~ 99min
5, the continuous working time :> 120min
6 , using the conditions: temperature : -5 ~ 40 ℃ Humidity: < 95%
7 , the measured dust error: < 2%
8. Noise LWA: <70dB
9 , respirable dust particle consistent with BMRC curve
10 , Weight : 1.8kg
11 , Volume : 200 × 140 × 80 (mm3)
