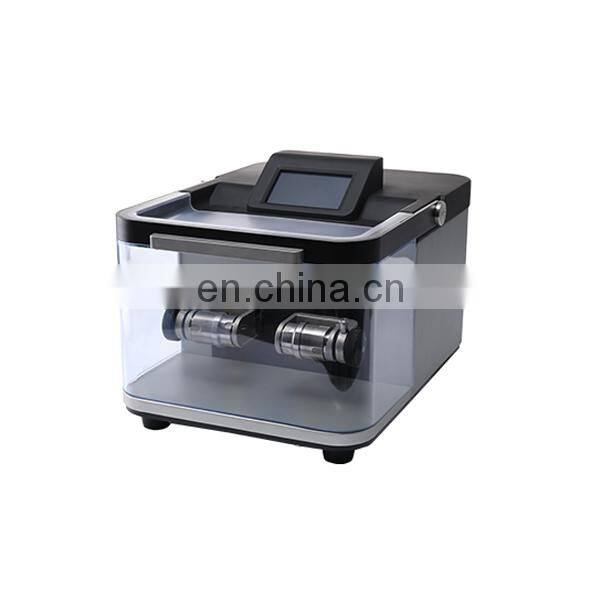

GT300 Vibration Mill Grinding Machine

Introduction
The vibratory ball mill GT300 is stable and versatile, and is suitable for high-intensity, multi-frequency use. It can perform rapid dry grinding, wet grinding or freeze grinding on small quantities, large batches of samples, such as plants, animal tissue cells, and small samples. With a typical grinding time of 30 seconds, it can process two or more samples at the same time. The sample volume ranges from 0.2 ml up to 50 ml, which is very good for high-flux grinding.
working principle
The vibratory ball mill GT300 can pulverize up to 2 x 96 samples quickly and efficiently in just 1-3 minutes. The pulverization is carried out by placing the pretreated sample into a grinding container (such as a stainless steel tank or a centrifuge tube/adaptor), and the grinding jar or the adapter is subjected to a circular radial oscillating motion in a horizontal direction, and under the action of high frequency oscillating, the grinding tank is ground. The small ball hits the sample at high speed to complete. When a large number of small balls (such as glass balls) are used, the biological cells can be broken, and the frictional collision between the balls and the balls can effectively cause the cells to break.
Applications
Sample properties: hard, soft, elastic and fibrous samples
Typical sample:
* Roots, stems, leaves, grains, seeds of plants
* Human and animal tissues, internal organs, bones, hair
* Ore, soil, glass, ceramics
* Rubber, plastic products, solid waste, e-waste
* Paper, textiles; chemicals, pharmaceuticals, Chinese herbal medicines, food
Recommended for special applications:
Plant tissue nucleic acid extraction, rapid extraction of genomic DNA from cultured cells for PCR analysis, 96-well high-flux disruption of yeast, lysis of bacterial cells (halophilic bacteria and bacilli)
Performance advantage
* Dry grinding, wet grinding, freezing grinding
* Very short grinding time
* High-throughput grinding design for up to 192 samples
* Universal high efficiency grinding and mixing
* Grinding cans and related accessories in a variety of materials and sizes are available for a wider range of needs
* Experimental parameters can be preset by digital, and the grinding results are highly repeatable
* The transparent cover on the cover allows the user to keep track of the grinding situation.
* The upper cover is equipped with a safety interlock. Once the upper cover is opened during the grinding process, the motor will stop running to ensure the safety of the user.
* Program setting operation time, intermittent grinding, method storage, etc.
* 5-inch LED touch display screen

Technical Parameters
Injection size: <10 mm
Sample size: <5 microns
Speed: 180~1800 rpm
Time range: 00:01~99:59 (minutes/second)
Sample throughput: 0.2~20 ml
Working mode: continuousintermittent
Microporous tube treatment quantity: Simultaneous treatment of 4*2, 5*2, 6*2, 10*2, 24*2, 96*2 samples
Grinding kit material: hard steel, stainless steel, tungsten carbide, agate, zirconia, Teflon
Grinding tank size: 0.2ml, 1.2ml, 1.5ml, 2.0ml, 5.0ml, 50ml, and 96-well deep-well plate
Rated power: 200 watts
Rated voltage: 220 volts, 50 Hz
Instrument size (horizontal * vertical * height): 380 * 480 * 281 mm
Package size (horizontal * vertical * height): 460 * 380 * 660 mm
Instrument weight: 34 kg
