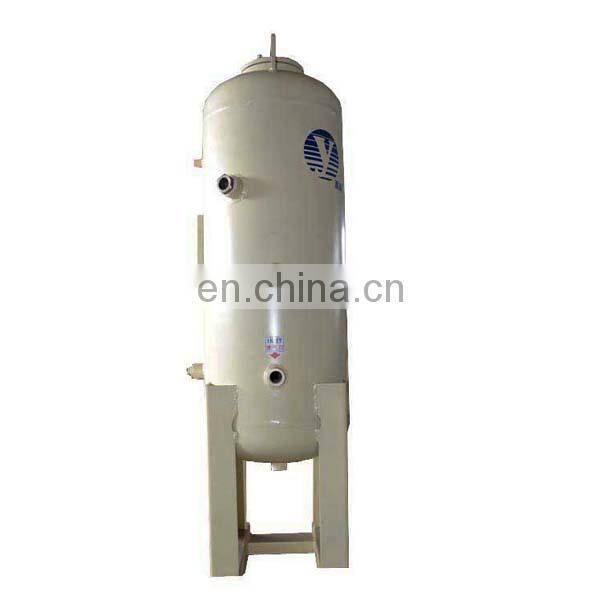

TF-DHS type dissolution dryer
- 30 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
Product Details
Brand Name: | SHTF | Place of Origin: | Shaanxi, China | Model Number: | TF-HMR |
Power: | Electronic |
Product Description
Introduction:
The non-powered dissolving dryer is installed in order to remove the moisture in the air duct, and is provided with refined clean compressed air for the terminal gas equipment. The compressed air containing moisture enters the chemical reaction of the solvent from the low-end inlet of the pressure vessel. The shrinkage is discharged by gravity to the bottom of the pressure vessel and discharged through the sewage outlet. The layer of dissolved agent deposited by the compressed air in the pressure vessel is naturally upward, gradually absorbed by the solvent, and the dissolved agent itself is melted and discharged from the drain port in a liquid form. The purified clean compressed air after drying is discharged from the upper end air outlet of the pressure vessel, and the discharged compressed air does not pollute the environment and the equipment used. There is a sight glass at the height of the pressure vessel 2/3 (see the figure below). The dissolution rate of the solvent can be known by the sight glass. If no solvent is observed in the sight glass, it means that the solvent needs to be added and unscrewed. The filling port at the top of the container can be used, and the power supply is not used in the whole process, so it is an energy-saving and environmentally friendly product.
Features:
1. The non-powered dissolving dryer (machine) can absorb the moisture in the compressed air without providing power supply, and the operation and management of the product is simple and convenient.
2. Solve the problem of the original complex working principle according to the dehumidification principle, and design it into a dryer that anyone can manage.
3. The internal solvent volume can be confirmed by the sight glass on both sides of the tank, and no additional management is required except for the replenishment of the solvent 2 to 3 times a year.
4. Because the parts are used less, there is no maintenance cost, and it is more economical than the refrigerating dryer.
5. And it does not have the danger of cold freezing of the machine, it is the only air dryer that can be installed outdoors.
Technical Parameters:
| Processing capacity | Weight | Dimensions | Export | Initial volume | Annual dissolved agent consumption |
Nm³/min | Kg | LxWxH(mm) | Kg | |||
TF-DHS-10 | 2.0 | 125 | 400X400X1260 | G3/4 | 50 | 43 |
TF-DHS-20 | 3.0 | 130 | 540X500X1500 | G3/4 | 75 | 72 |
TF-DHS-30 | 5.0 | 170 | 590X580X1620 | G1 | 175 | 168 |
TF-DHS-50 | 8.0 | 200 | 690X660X1650 | G11-2 | 225 | 216 |
TF-DHS-100 | 15 | 270 | 850X770X1770 | G2 | 325 | 312 |
TF-DHS-125 | 20 | 300 | 960X770X1770 | DN65 | 400 | 384 |
TF-DHS-180 | 25 | 360 | 1160X920X1880 | DN65 | 525 | 512 |
TF-DHS-220 | 30 | 590 | 1030X1030X2320 | DN80 | 625 | 600 |
TF-DHS-250 | 35 | 710 | 1230X1230X2400 | DN100 | 800 | 760 |
