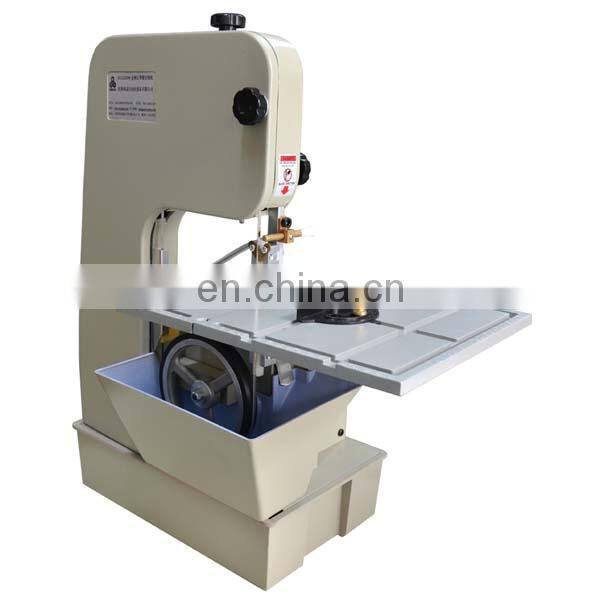

SYJ-D2000 Diamond Band Saw Cutting Machine

Introduction:

SYJ-D2000 diamond band saw cutting machine is a small diamond band saw cutting machine, suitable for cutting glass, ceramics, jade, marble, concrete and other brittle materials. This machine can not only achieve linear cutting, but also can perform certain angle cutting and curve cutting. It is an ideal tool for cutting brittle materials in the laboratory.

Technical Parameters:

Power supply: 110V/220V 60/50Hz

Input power: 120W

Saw blade circumference: 945mm

Sawing width: <1mm

Cutting thickness: <30mm

Working table size: 300mm×250mm

Instrument size: 380mm × 270mm × 560mm;

Weight: 11.5kg

Installation conditions:

This equipment is required to be used at altitudes below 1000m, temperature 25°C±15°C, and humidity 55%Rh±10%Rh.

1. Water: The equipment is equipped with a self-circulating water tank (filled with purified water or deionized water)

2, electricity: AC220V 50Hz, must have a good ground

3, gas: no

4, table: size 600mm × 600mm × 700mm, load-bearing more than 50kg

5, ventilation device: need

Standard accessories:

Cutting ruler: 1

Diamond band saw blade: 1

Water box: 1

Water pump: 1
