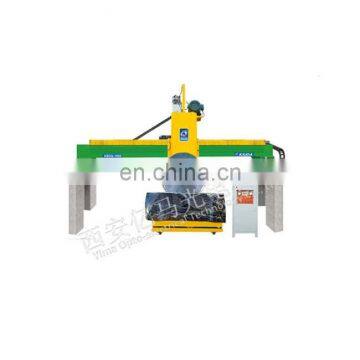

XBDQ-1600 Hydraulic Bridge Trimming Machine

XBDQ-1600 Hydraulic Bridge Trimming Machine thumbnail-1
XBDQ-1600 Hydraulic Bridge Trimming Machine thumbnail-2
XBDQ-1600 Hydraulic Bridge Trimming Machine photo-1
XBDQ-1600 Hydraulic Bridge Trimming Machine photo-2
US$ 32,000 - 37,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KD-W
Place of Origin:
Shaanxi, China
Type:
Bridge Saw
Contact Supplier Request Quote Chat Now
Lixian Instrument Scientific Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KD-W
Place of Origin Shaanxi, China
Type Bridge Saw
Use Marble
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Weight 11000kg
Dimension(L*W*H) 7500mm*4000mm*7500mm
Production Capacity other
Condition New
Voltage 220V/380V
Power(W) 37kw

Brief introduction

This machine uses invert to control left-right feeding. Adjusts speed according to the stone material.It uses hydraulic lifting system(screw lifting system).and the forward-backward slicing uses high-precision screw nut driving. Automatic slicing. Main spare parts adopt imported good-quality materials;the whole machine is featured with high cutting efficiency,high slicing precising,flatness of plate after cutting,high stability.easy-operation.

Technical data

Appellation

XBDQ-1600

Max cutting length

3000mm

Max cutting width

2000mm

Max cutting height

2000mm

Number of Blade

1pcs

Max blade

1800mm

Main motor power

37kw

Overall dimensions

7500mm*4000mm*7500mm

Approximate weight

11000kg

Water consumption

6m³/h



Dear customer



 You see on our website products quotation, just a market reference price. We can according to customer specific requirements to give the actual price.

XBDQ-1600 Hydraulic bridge trimming machine
