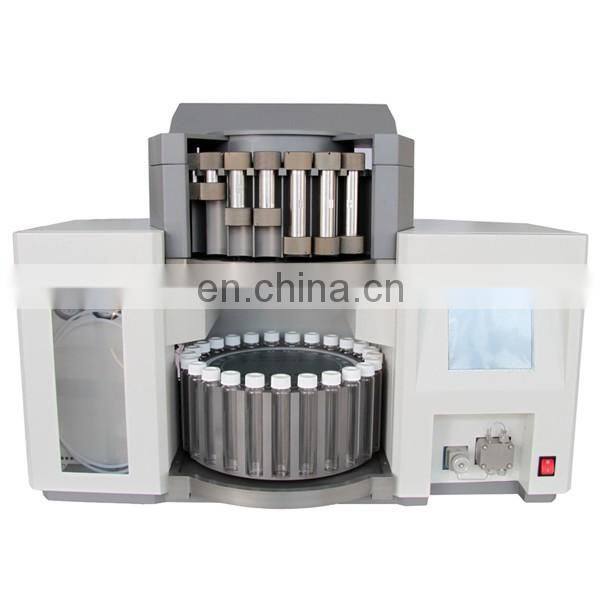

APLE-3000 automatic fast solvent extraction apparatus
Instruction
APLE - 3000 is big volume multi-channel automatic fast solvent extraction device, equipped with 100 ml extraction pool below, especially suitable for extraction of natural products or type, such as the preparation of Chinese herbal medicine research or half preparation sample processing, can deal with continuously 12 samples of the same or different organization.Many sample extraction mode, sample processing large flux, high extraction efficiency, mainly suitable for pharmaceutical, natural product extracts, and other fields.
Feature
1 A high performance
APLE series in a sequential extraction mode of sample processing, automatic online cleaning system, on-line filtration purification and online operation, high efficiency, simple to use, convenient and quick.
2 extraction quickly
APLE processing each sample average time is 8 ~ 20 min, compared with the traditional extraction technology to save a lot of time, and in APLE extraction samples at the same time, the experimental personnel can also be other aspects of work.
3 environmental health
APLE significantly reduces the amount of solvent extraction is used, each sample solvent consumption is only a few ml to dozens of ml, and APLE the extraction process using automated completely closed processing, effectively reduce the volatilization of the organic solvent and workers exposure to organic solvents, green environmental protection, health and safety.
4 conditions optimization of convenient and flexible
Sample extraction parameters include: extraction pressure, extraction temperature, extraction time, flush volume, extraction times, sample room cleaning, etc., the user can be flexible, convenient and flexible for the optimization of the extraction conditions.
5 a high degree of automation
Automatic type APLE sample extraction process can be completely unattended, the whole sample extraction process: loading solvent, heating, pressure, extraction, collection, filtration, purification, cleaning all step to complete automation.APLE - 3000 can automatically complete 12 continuously the extraction of the sample.
Technical Parameter
1 The temperature range : at room temperature to 200 ℃;
2 pressure range: atmospheric pressure ~ 20 mpa;
3 extraction pool size: 1 ml and 5 ml, 10 ml, 22 ml, 34 ml, 66 ml, 100 ml;
4 furnace: double heating furnace, ± 1 ℃ temperature control;
5 new solvent mixer, and can realize a variety of automatic matching of the solvent and the switching between different solvents;
6 extraction time: 8 min ~ 20 min;
7 extract can automatic filtering, automatic purification;
8 built-in temperature, pressure control and overvoltage protection system, to ensure the safety and reliability of the operation of the instrument;
9 the pressure control unit: the balanced pressure control, plus or minus 0.3 MPa to control pressure;
10 in line with the GB/T 19649-2006 standard method.
|
Dear customer: We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history . Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science. Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system. If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba. We firmly believe that science and technology is no boundaries. Our mission is to make every effort to contribute to all humanity. |
