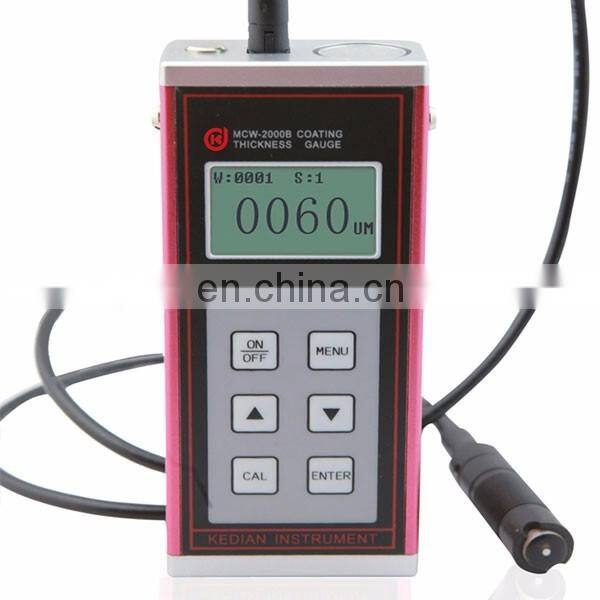

MCW-2000B Coating Thickness Gauge

Introduction

MCW-2000B (eddy current) coating thickness gauge is the crystallization of high-tech, it uses SCM technology, high precision, digital display, indication stability, low power consumption, easy operation, no correction knob, single probe full range measurement , Small size, light weight; and with storage, read out, low-voltage instructions, the performance of contemporary international similar instruments to the advanced level.

Applications:

MCW-2000B (eddy current) coating thickness gauge, is a small instrument, the use of eddy current measurement principle, can be easily non-destructive measurement of non-ferrous metal substrate on the paint, plastic, rubber coating, or aluminum substrate Anodic oxide film thickness. The instrument is widely used in machinery, automobiles, shipbuilding, petroleum, chemical, electroplating, spray, enamel, plastics and other industries.

Features

1, measuring range: 0 ~ 1200um

2, the measurement error: <3% ± 1um

3, the minimum indication: 1um

4, Display: 4-digit LCD digital display

5, the main function:

(1). Measurement: single probe full-range thickness measurement

(2). Store, delete: can be stored in the measurement data 600, the measurement of a single suspicious data can be deleted, you can delete all the data in the storage area.

(3) .Read: Read out the measured data that has been stored

(4). Statistics: There are three statistics, the average maximum value of the minimum

(5). Calibration: can be zero calibration, two-point calibration and system calibration

(6). Power: with under-voltage display

(7). Print: Printable measurement, optional micro-printer

(8). Shutdown: with automatic shutdown and manual shutdown two methods

6, power: two 1.5v battery

7, power consumption: maximum power consumption 100mw

8, shape to make inch: 51mm * 126mm * 27mm

9, Weight: 160g (with battery)

10, the use of ambient temperature: 0 ℃ ~ +40 ℃ Relative Humidity: not more than 90%

11, the minimum thickness of the substrate: 0.3mm

12, the minimum diameter of the substrate: 7mm

13, the minimum radius of curvature: convex: 1.5mm concave: 6mm

14, under voltage indication: the upper right corner shows ""

* The critical thickness of small: the workpiece substrate thickness greater than 1mm, the coating thickness of the substrate thickness measurement is not affected.
