7230G Type Visible Spectrophotometer
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | YiDian | Place of Origin | Shaanxi, China | |
| Model Number | 7230G |
Product Description

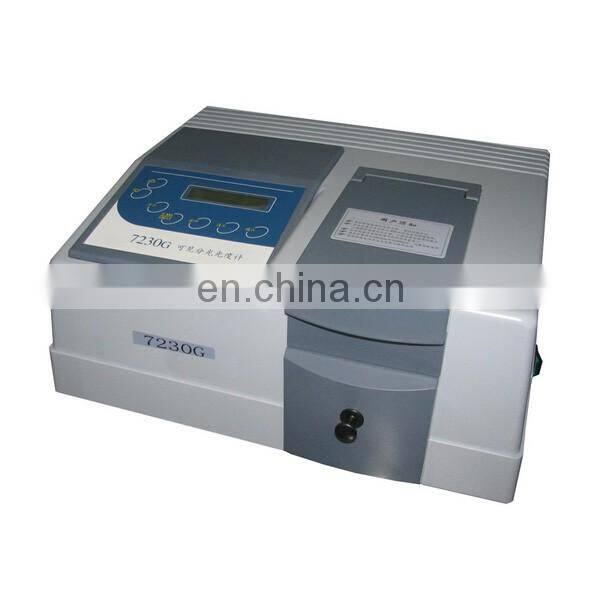

7230G type visible spectrophotometer
Introduction
The instrument built-in microcomputer to realize the man-machine dialogue, the operation is simple, functional, can be widely used in petroleum, chemical, pharmaceutical, environmental protection, universities and colleges, materials science and other fields, is indispensable to scientific research, production, teaching analysis instrument.
Features
1.723 type USES low stray light visible spectrophotometer, high resolution single-beam optical path structure.
2. The instrument has a good stability and reproducibility.
3. The application of new processing technology, microcomputer make the operation more simple, can more quickly complete the test.
4. With automatic adjustment control functions such as 0% 100% T and T.
5. Have a variety of methods of data processing function.
6. LCD digital display can display parameters such as transmittance, absorbance and the concentration and the wavelength reading, improve the precision instrument readings.
7. Print output, equipped with a serial port, can be connected directly to the printer, print the experimental data.
Technical Parameter
Optical system | Single beam, 1200 / mm diffraction gratings |
Spectral bandwidth | 4 nm |
Wavelength range | 325-1000 nm |
Wavelength accuracy | ±1 nm |
Wavelength repeatability | ≤0.5 nm |
Wavelength readability | 0.1 nm |
Stray light | ≤0.3%T Λ360 nm,420 nm |
Baseline linear model | ±0.004 A |
Stability | ≤0.004 A / 30min / 500 nm (after 30min warmup) |
Light source | Tungsten halogen lamp 12 v / 20 W |
Show | LCD |
Data output | RS-232C |
Detector | Silicon photodiode |
power supply | AC 220V/ 50Hz 300W |
Dimensions | 440*370*200 mm |
Weight | 17 kg |
