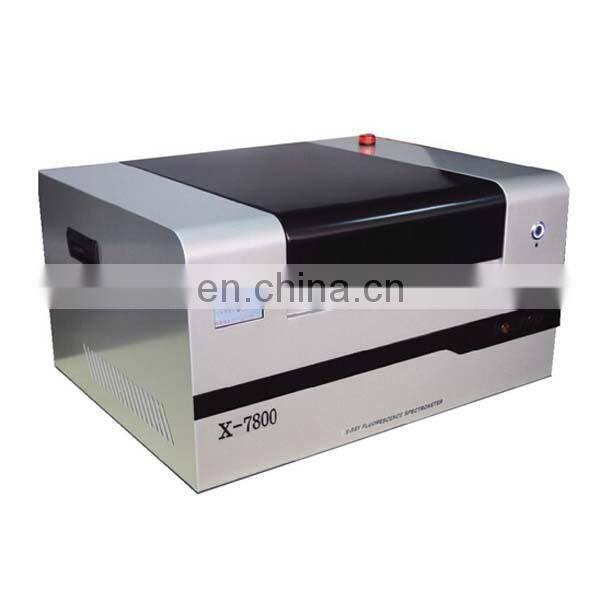

X-7800 Precious Metal Detector

Introduction
X-7800 -type precious metal detector using low-power X -ray tube target for efficient excitation source , high-resolution digital X-123 detector system integration , multiple collimators and filters , plus our specially developed application software , give full play to the excellent performance of the various components to ensure that the entire high-resolution instruments and general adaptability. Wherever needed while multi-element analysis , is the place it has much to offer .

Features

Instrument detection capability , high resolution, related industries and precious metals suitable for non-destructive testing of different elements . In the analysis of different working environments range from Al ( the 13th element ) to U ( 92 elements ) . Non-destructive analysis without sample preparation , rapid detection test time is adjustable from seconds to minutes , the detection accuracy 1PPM to Wan grade level .

Technical Parameters

1. Analysis of a range of elements : aluminum (Al) element 13 - uranium (U) 92 elements
2. Elemental analysis content range : 1ppm to 99.99%
3. element analysis capability : 40 kinds of elements
4. The measurement sample patterns : solid , powder , liquid
5. Detector : Integrated high-resolution digital X-123 detector system
6. High Voltage Power Supply : Maximum 50KV, 1mA

7. mobile platforms : Increase movable bearing platform

8. Machine Resolution: Resolution is 145 ± 10eV ( in full compliance with GB / T 18043
9 . High resolution X-123 digital integrated detector system
10. Measuring Time : 5 seconds to 600 seconds adjustable, one -touch speed measuring 3.5 seconds may be the result
11. Other applications: testing procedures increase the RoHS, halogen and other toxic substances in toxic and harmful elements and precious metals testing process
12. Dimensions : 650mm × 500mm × 340mm
13. The sample compartment size : 363mm × 386mm × 112mm, opening measurements: infinite , easy inspection of large samples
14. Instrument Weight : 60 kg
