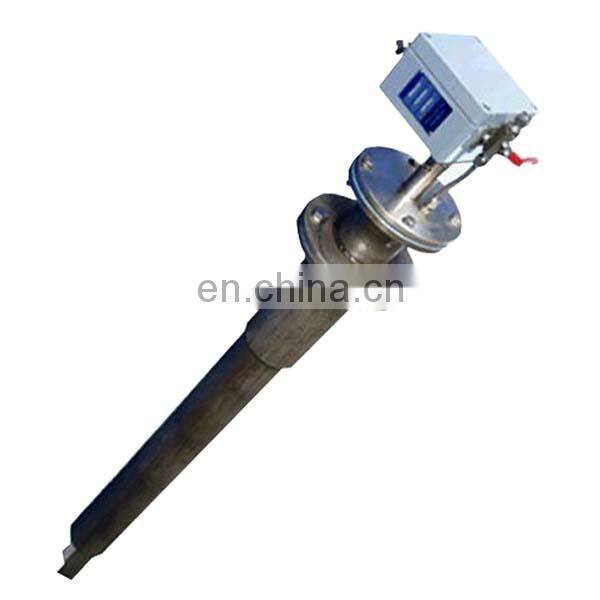

JNYQ-O-13 Zirconia Oxygen Analyzer

JNYQ-O-13 zirconia oxygen analyzer

Features
1 . Anti- cross-interference , advanced digital processing technology ;
2 . Life: 3 years to 5 years ;
3 . Measurement signal output linear expression ;
4 . Manual / zero / finish calibration ;
5 . Variety of state signal output : sound, light, picture , relays , communication and information ;
6 . Brownout protection , starting from the restoration ;
7 . Digital temperature compensation ;
8 . Shown in the oxygen content , the potential value of switching between working furnace ;

Application
JNYQ-O-13C -based analytical instruments can be used for thermal power, metallurgy , heating, building materials, electronics , power plants, industrial boilers and combustion systems for all types of auto exhaust oxygen content analysis .
Detection principle
JNYQ-O-13C -type oxygen analyzer for the split zirconia, Westinghouse technology uses sensors to microprocessor as the core of the intelligent signal converter and zirconia detector , is used for online detection test gas oxygen content .

Technical parameters
1 . Measurement range : 0.0 to 5.0 % 0.0 10 % 0.0 to 25% optional ;
2 . Accuracy : ± 2% F.S;
3 . Stability: Zero drift ≤ ± 2% FS / 7d; Span drift ≤ ± 2% FS/7d;
4 . Repeatability : ± 1.5%;
5 . Response time : T90 ≤ 5 s;
6 . Working temperature : 650 °C;
7 . Warm-up time : ≤15 minutes;

8 . Contact capacity: ( second table ) 120VAC, 1A 24VDC, 1A;
9 . Output signal: ( second table ) 4 ~ 20mA or 0 ~ 10mA DC optional ;
10 . Power supply : 220VAC ± 10%, 50Hz ± 5%;
11 . Second table Dimensions: plate mounted : 160mm ( W ) × 80mm ( height ) × 265mm ( depth ) ;
Wall Mount : 147mm ( W ) × 260mm ( height ) × 77mm ( depth ) ;
12 . Second table hole size: dial mounted : 150mm ( W ) × 75mm ( height ) ;
13 . Detector length : 0.4m, 0.6m, 0.8m, 1.0m, 1.2m, 1.5m optional ;
