Digital Type 500N Garment Button Pull Out Test Equipment
- 200 Set / Sets per Month
- Shenzhen
- T/T Credit Card
- China High Quality Mini Temperature And Humidity Test Chamber
- Hot Sale Cardboard Internal Ply Bond Testing Equipment Price
- ASTM D3574 Flexible Celluar Material Urethane Foam Indentation Hardness Testing Equipment
- China New Product PLC Controller 50 Ton Heated Hydraulic Press For Sale
- ASR-5644 Mobile Phone Coating Abrasion Tester Price
- Coating Click Marking Test Machine Click Line Life Test Machine
Product Details
Brand Name: | RIGHT | Place of Origin: | Guangdong, China | Model Number: | RT-201B |
Power: | Electronic |
Product Description
Digital Type 500N Garment Button Pull Out Test Equipment
What is the Specification of Adhesive Peel Tension Testing Machine / UTM?
Name | High Precision Ball Screw Plastic Film Tensile Test Equipment |
Maximum load | 50N,100N,200N, 500N, 1KN,2KN(optional ) |
Accurate grade | 1grade / 0.5 grade |
Effective measuring range | Force from 0.2% to 100% / from 0.4% to 100% |
Measuring accuracy | the value ±1% / the value ±0.5% |
Tester resolution | Max load: 1/200000, constant the resolution |
Load sensor | Basic configuration sensor max load: one |
Effective tensile stoke | 500mm (can be increased the tensile space according to customers requirement ) |
Testing speed | From 0.001 to 500mm/min |
Accuracy of displacement measurement | Tolerance:±0.5% / tolerance: ±0.2% |
Safety | Electronic-limit protection |
Testing platform moving device | Fast /slow( two speeds to control ),can jog |
Return Back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
Overload protection | Overload 10%, automatic protection |

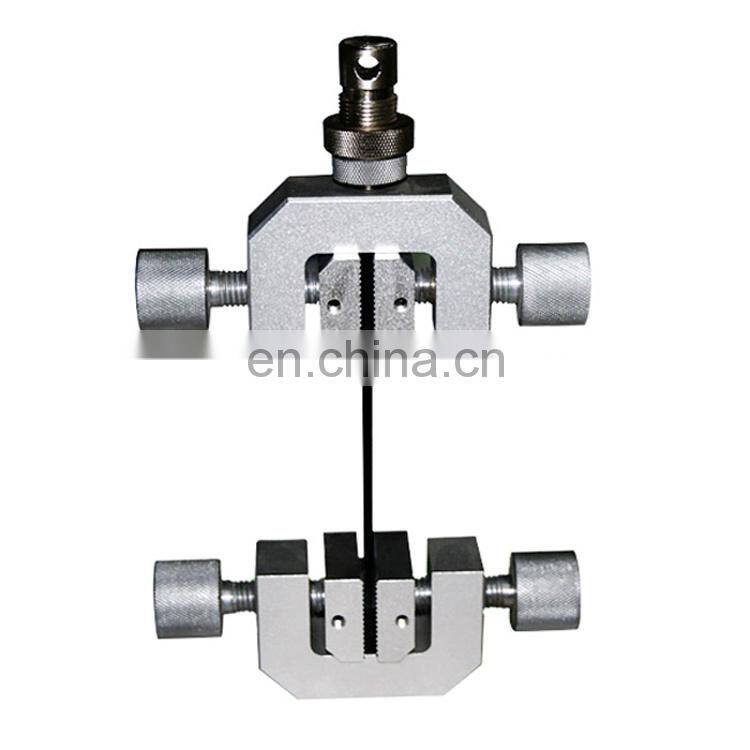

fixture | A set of tensile clamp |

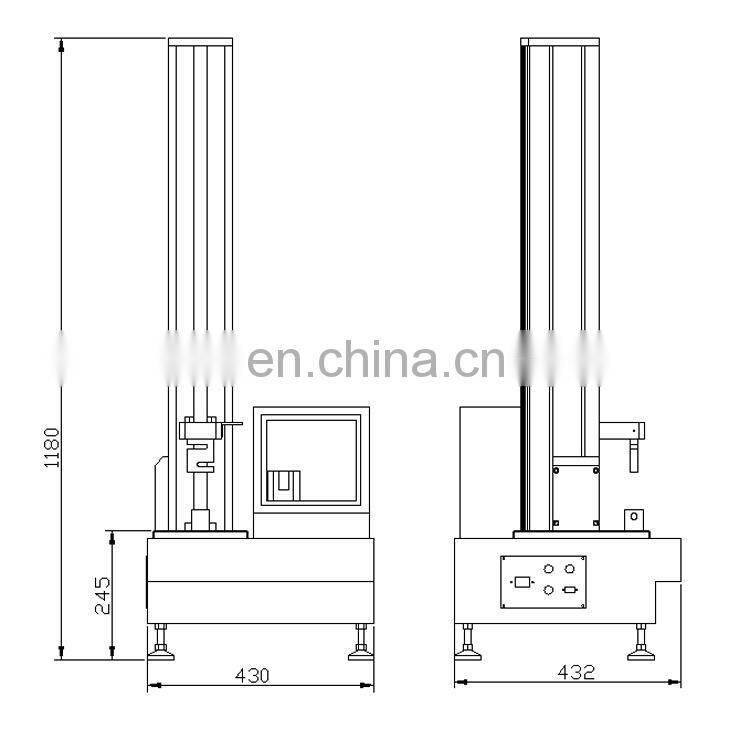

Machine size | 45x58x135cm (L*W*H) |
Motor | Delta AC servo motor and drive |
Power supply | 220V , 50HZ or according to the requirement |
Power | 0.4KW ( depending on different demand of force,using different motor) |
weight | About 75KG |
Unit | KG,N,LB, TON can be exchanged. |
Equipment summary:
High Precision Ball Screw Plastic Film Tensile Test Equipment is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. This series of machine using single-space structure, operational space at the bottom,it is mainly applied to test non-metallic and metallic material ,which the load is less than 2kN , it has the parameters, such as stress,strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.
Main function:
High Precision Ball Screw Plastic Film Tensile Test Equipment can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons,thread, spring, wood,medicine packaging materials, tapes etc.
Main features:

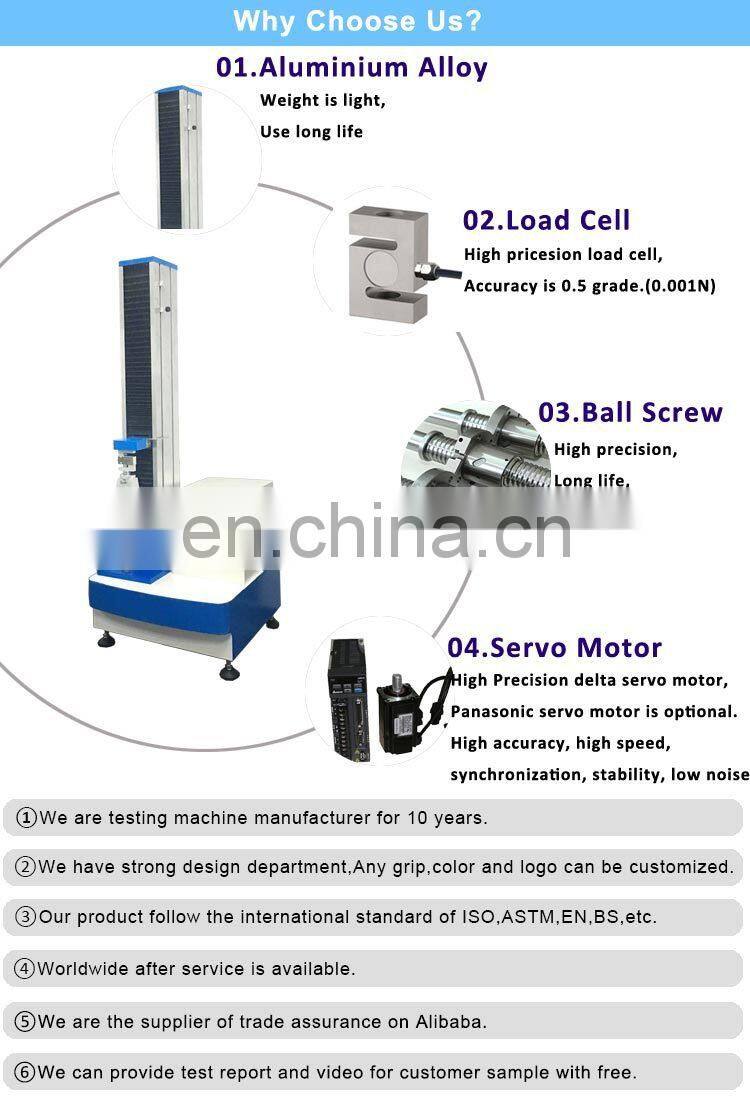

1. Adopt Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curves can be transferred out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves.
5. the testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
Applicable industry:
High Precision Ball Screw Plastic Film Tensile Test Equipment is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
Click for More Information!!!
Product Pictures
Click for More Information!!!
*Shippment
-By sea
-By plane
-By couriers, TNT, DHL, FEDEX, UPS, etc.
*Standard Export carton
1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.
Dongguan Right Testing Machine Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.
Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.
If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Q1: How long is the delivery time?
A:Normally 5-10 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
