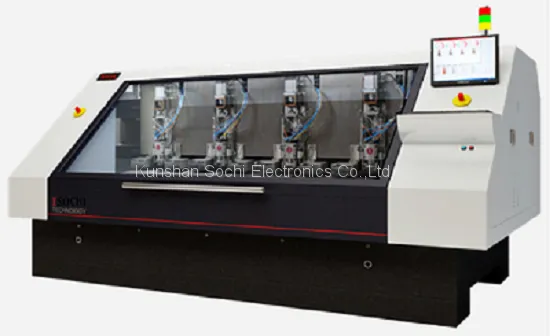

PCB CNC Industry High Precision Machine 4-Axis Drilling&Router Machine Good Quality

Customized & new generation PCB drilling machine

QIC System: Large and small pressure foot switching function to ensure small PCB board’s accuracy.

The CBDT electric contact automatic detection broken tool function is the timely response, and the hole can be used to monitor the edge collapse. It can be used as a fast drilling function.

Spindle configuration：

ABL/WESTWIND 160-180KTDM High-speed air-floating spindle for stable 100μm micro-hole machining, good macro hole and slot machining.

Drive System：

Imported high-function, high-torque motor to ensure fast transmission speed.

Transmission system：

Japan NSK high precision lead screw (fast, quiet).

German Rexroth P-precision Linear Guideway（High precision，long lasting）.

Tool magazine selection

Upper-tool magazine：

Capacity 220 / pcs/ axis, can achieve full diameter tool without collar, short tool change time, easy to operate the upper and lower plates, don’t rotate the tool change.

Lower-tool magazine：

Large capacity of 300, easy to arrange the knife automatically, operate, replace the tool change, clean the tool, have little effect on the spindle.

ontrol software：

Mature, stable advanced software control system, friendly interface and graphical simulation function, easy learning.

Feedback system：

Imported as a closed grating ruler, dustproof and antifouling effect is very good.

Tool Detection：

Imported Tool detection can realize tool length and tool diameter detection to ensure the accuracy of the drill.
