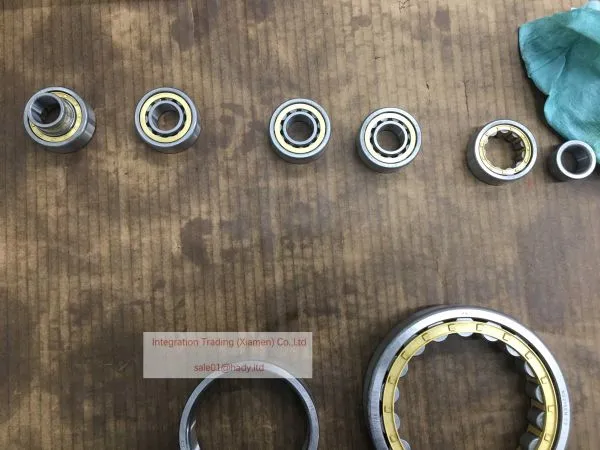

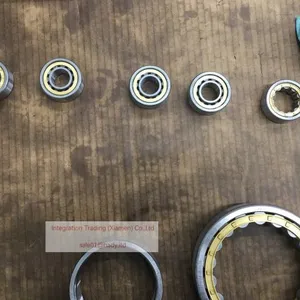

NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303 Cylindrical Roller Bearings thumbnail-1
NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303 Cylindrical Roller Bearings thumbnail-2
NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303 Cylindrical Roller Bearings thumbnail-3
NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303 Cylindrical Roller Bearings photo-1
NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303 Cylindrical Roller Bearings photo-2
NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303 Cylindrical Roller Bearings photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HPC or Natural or OEM
Place of Origin:
China
Model Number:
NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303
Contact Supplier Request Quote Chat Now
Integration Trading (Xiamen) Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HPC or Natural or OEM
Place of Origin China
Model Number NU 202 E NJ 203 NU 203 M NU 203 EM NU 2203 E NJ 2203 E NUP 2203 E NU 303
Number of Row Single Row
Seals Type Open
Precision Rating P6
Outside Diameter 35, 47
Bore Size 15, 17

Please contact with us via sale01@hady.Ltd directly or whatsapp/wechat +86 136 0603 6591 for rush case support.



 Principal dimensions Basic load ratings Speed limits Weight Radius Dimensions
Part   number Bore Outer Width Dynamic Static Grease Oil

d D B C Co rpm Kg rs min r1s min F E

mm kN 1 min−1 mm mm
NU 202 E 15 35 11 13,5 11,2 18000 22000 0,052 0,6 0,3 19,3
NJ 203 17 40 12 11,2 9 17000 20000 0,091 0,6 0,3 22,1
NU 203 M 17 40 12 14,5 12,8 18000 20000 0,08 0,6 0,3 22,1
NU 203 EM 17 40 12 17,6 14,6 18000 18000 0,01 0,6 0,3 22,1
NU 2203 E 17 40 16 22,4 19,8 16000 19000 0,097 0,6 0,3 22,1
NJ 2203 E 17 40 16 22,1 19,8 16000 19000 0,097 0,6 0,3 22,1
NUP 2203 E 17 40 16 22,4 19,8 16000 19000 0,089 0,6 0,3 22,1
NU 303 17 47 14 16,4 13 13000 16000 0,12 1 0,6 25,1


Cylindrical roller bearings are manufactured in a number of designs as indicated below.The predominant

type being the single row roller. The roller and cage assembly are guided axially by the integral

flanges (ribs) on one of the bearing rings. This design facilitates ease of mounting and dismounting,

particularly where both races are an interference fit on their seatings. Roller bearings with flanges (ribs)

on one race only do not provide any end location. Various roller bearings with ribs on both races provide

axial location, and are capable of carrying light or intermittent axial loading. These patterns are of

the NJ, NUP and NJ+HJ types. If used for axial location and light axial loads, the contact between the

flanges (ribs) and the roller ends is that of a sliding bearing, not rolling bearing; therefore

lubrication is of paramount importance.

Alignment is much more critical than that of a ball bearing; as a general guide, this is limited to

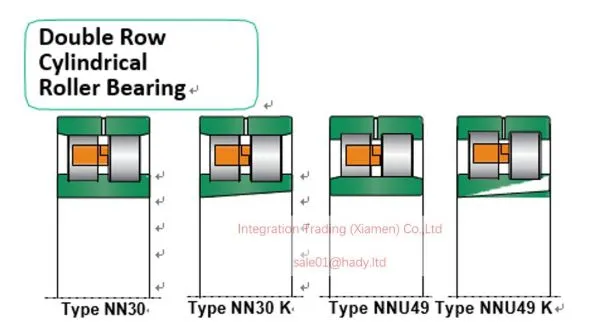

approximately .003 radians. Double and multi-row bearings are also manufactured

- see NN and NNU series.

Dimensions in accordance with ISO 15-2011


Of these bearings, the NJ, NUP and NJH types can also

carry light or intermittent thrust loads between the guide rib

and the end of the rollers. Several arrangements of locating

ribs are available, as illustrated. The choice between these

types is usually decided by consideration of assembly procedure

or machine clearances. The bearings utilizing machined

bronze cages are suitable for high speed operation. The NN

30 and NN 30 K series are available in high precision tolerances

and, due to their extreme rigidity, are particularly suited

for use in machine tool spindles.

Typical suffixs used for cylindrical roller bearings:


E - Increased loading capacity

NA - Non-interchangeable components

M - Brass cage guided on the rollers

EM - Increased loading capacity and brass cage guided on the rollers

EMA - Increased loading capacity and brass cage guided on the outer ring





Product Tags: NU 202 E , NJ 203 E , NU 203 M , NU 203 EM , NU 2203 EM , NJ 2203 EM , NUP 2203 EM , NU 303 EM , NUP 303 EM
