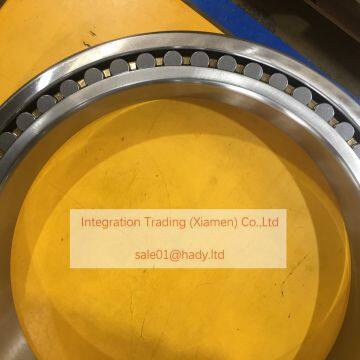

238/1000 CA 249/1000 CA 230/1000 CA 240/1000 CA 231/1000 CA 241/1000 CA 238/1060 CA 248/1060 CA 239/1060 CA 249/1060 CA 230/1060 CA 240/1060 CA，Spherical Roller Bearings

Please contact with us via sale01@hady.Ltd directly or whatsapp/wechat +86 136 0603 6591 for rush case support.

Spherical roller bearings are designed to sustain heavy loads, shaft misalignment and deflection. They contain two symmetrical or asymmetrical rows of barrel-shaped rollers, which align themselves in the outer race sphered track. They are, therefore, able to carry very heavy radial loads and axial loads in either direction.

Roller guidance is achieved by the fixed flanges on the inner ring for the CA, EX, MB, VS and MA - design or a floating ring for the C design. For further information, see roller guidance design on next page.

Misalignment

The table below gives figures for permitted misalignment in the different bearing series. Dimensions in accordance with ISO 15:2011

EX                       : 1 piece brass cage, roller guided between 2 inner ring flanges. Cage is guided on the rollers. Assymetrical roller position.

C                          : 2 pressed sheet steel cages, roller guided on a floating rings.

CA                       : 1 piece brass cage, roller guided between 2 inner ring flanges. Cage is guided on the rollers. Assymetrical roller position.

MB                      : 2 piece brass cage, roller guided between 2 inner ring flanges and one central rib. Cage is guided on the inner ring.

VS C4 F80          : 1 piece brass cage, roller guided between 2 inner ring flanges. Cage is guided on the outer ring.

MA C4 F80         : 2 piece brass cage, roller guided between 2 inner ring flanges and one central rib. Cage is guided on the outer ring.

C 2RS                  : Steel cage with 2 NBR seals

EX meet the higher exigency of the market. EX bearings are produced with higher grade steel, enhanced heat treatment process, higher machining accuracy and better surface roughness. These improvements are resulting in bearings that run with less noise and less vibrations and have a improved energy efficiency.

     C 2RS type is a sealed spherical roller bearing with a steel cage C and 2 NBR seals. High temperature seals 2VS are available as well. Sealed bearings are filled with lithium based grease. Due to the seal, misaligment is reduced. As well for some types the bearing with differs from the standard width.

Spherical roller bearings are manufactured with tapered bore-K(1:12) and K30 (1:30) with lubrication groove and 3 lubrication holes on the outside diameter W33. All our sphericals have the W33 feature.

Tolerances

Spherical roller bearings with cylindrical and tapered bore are generally manufactured to “PO” precision class. Radial Clearance

Spherical roller bearings with cylindrical and tapered bore are generally manufactured to normal (CN), C2, C3, C4 and C5 clearances. Heat Treatment

Spherical roller bearings with outside diameter D>240mm of all series given in this catalog can be used to an operating temperature of +150°C (+302°F). Small size bearings operate normally at temperatures up to +120°C (+248°F).
