Home > Products > Feeder > I- PULSE Series Pneumatic Feeder Corrector Smt Calibration Kit L500*W350*H500

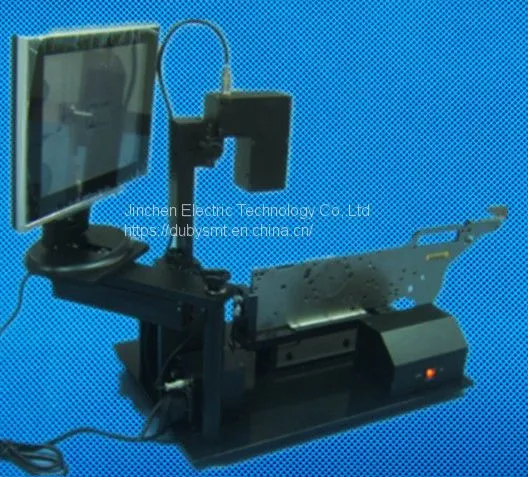

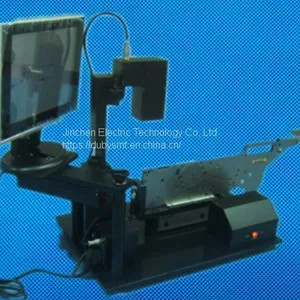

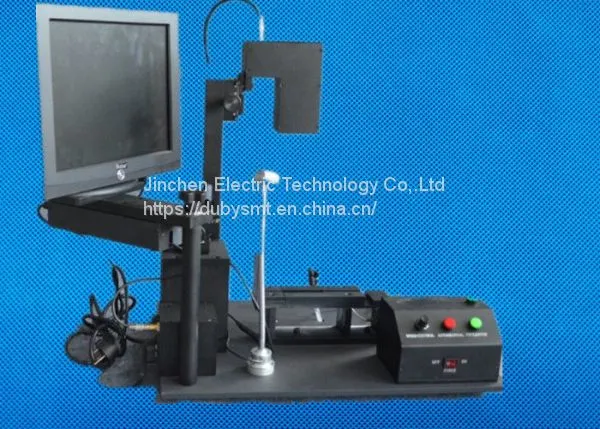

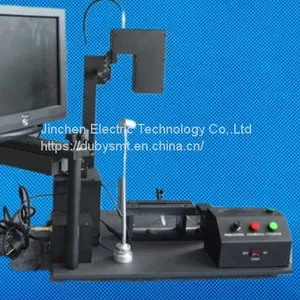

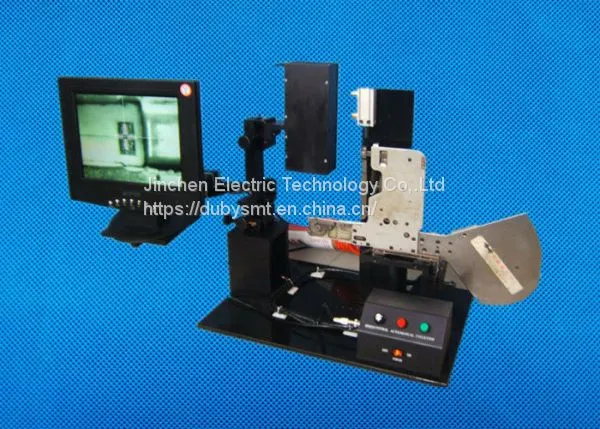

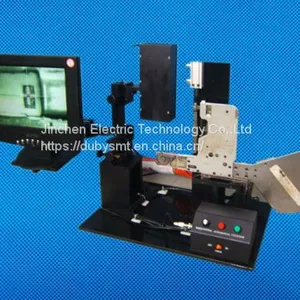

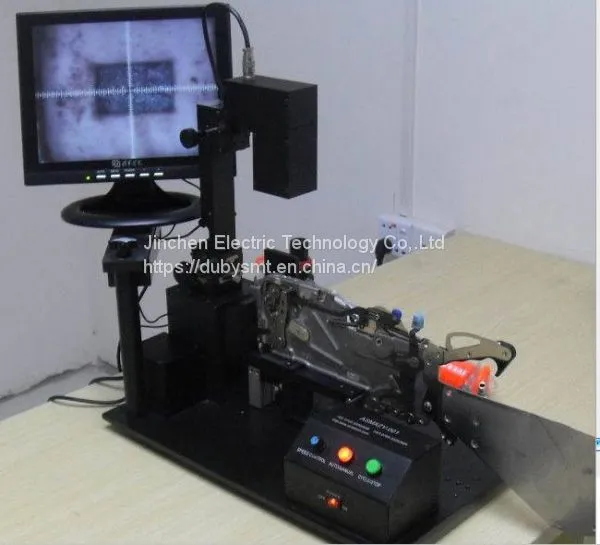

I- PULSE Series Pneumatic Feeder Corrector Smt Calibration Kit L500*W350*H500
- 1 Piece / Pieces per Month
- shenzhen
- T/T
- 3 days
- Low Cost 2D Electronic Compass
- XCG series circular connector plug socket XCG39T62Z1P3(X) XCG39F62K1D3(X)
- MS series circular connector plug socket MS3116F16-26P MS3116F16-26S
- MS series circular connector plug socket MS3116F14-19P MS3116F14-19S
- MS series circular connector plug socket MS3116F12-10S MS3116F12-10P
- MS series circular connector plug socket MS3116F10-6P MS3116F10-6S
Product Details
Brand Name: | SMT | Place of Origin: | China | Model Number: | SMT |
Product Description
1. Precise X-Y-Z axis adjustment;
2. A shaft camera that can be directly adjusted;
3. Built-in 220V DC power supply;
4, cross with scale cursor;
5, automatic and stepping function;
6, super bright LED display;
7. Precise feeder control fixture;
8, accurate 8 * 2mm / 12 * 4mm / 16 * 8mm and 24 * 8mm feeder control belt.
SMT FEEDER Calibrator Pneumatic
1, 12-inch LCD monitor;
2, a set of 50 times color CCD camera with scale cross;
3, lighting
4. One calibration ruler;
5. A set of three-axis adjustment platforms for X, Y and Z;
6, power control box;
7, Feida fixed seat
8. High pressure gas pipeline (6 meters);
9. Air pressure regulation table;
10, 220V power cord
11. A manual;
K87-M1310-00X BODY ASSY 1 |
2 K87-M1112-00X KNOCK PIN (FRONT) 1 |
3 K87-M1313-00X KNOCK PIN (REAR) 1 |
4 K87-M1114-00X NEEDLE ROLLER 2 |
5 K87-M1115-00X CIRCULAR RIVET 2 |
6 K87-M111A-00X SPRING 1 |
7 K87-M111B-00X BACK STOPPER AXIS 1 |
8 K87-M111C-00X PLANE WASHER 1 |
9 K87-M111D-00X PUSH PIN 1 |
10 K87-M111E-00X SPRING 1 |
11 K87-M111F-00X STOPPER PIN 1 |
12 K87-M111G-00X PUSH PIN 1 |
13 K87-M131H-00X BACK STOPPER 1 |
14 K87-M111L-00X BARB CONNECTOR STRAIGHT 1 |
15 K87-M111M-00X GASKET 1 |
16 K87-M111N-00X SCREW,PAN HEAD + 1 |
17 K87-M111P-00X SCREW,FLAT HEAD + 1 |
18 K87-M111R-00X SCREW,SET 4 |
19 K87-M1320-00X SPROCKET 1 |
20 K87-M132A-00X RACKING LEVER ASSY 1 |
21 K87-M112D-00X COIL SPRING 1 |
22 K87-M112L-00X SPROCKET AXIS ASSY |
K87-M111S-00X SCREW,FLAT HEAD + 2 |
2 K87-M111T-00X SCREW,SET 1 |
3 K87-M111W-00X SCREW,PAN HEAD + 1 |
4 K87-M111X-00X SCREW,SET 1 |
5 K87-M1132-00X CLAMP LEVER ASSY 1 |
6 K87-M113L-00X CLAMP LEVER AXIS 1 |
7 K87-M1340-00X TAPE GUIDE ASSY 1 2002/7 |
8 K87-M114A-00X LOCK LEVER ASSY 1 |
9 K87-M114L-00X SUPPORT PLATE 1 |
10 K87-M114N-00X GUIDE AXIS 2 |
11 K87-M114R-00X FRONT COVER 1 |
K87-M138K-00X RATCHET PITCH STICKER 2 |
2 K87-M1173-00X MAIN ARM ASSY 1 |
3 K87-M117B-00X PLANE WASHER 1 |
4 K87-M1181-00X ROD CONNECT 1 |
5 K87-M1182-00X ARM 1 |
6 K87-M1183-00X CYLINDER HOLDER 1 |
7 K87-M1184-00X CONNECT PIN 1 |
8 K87-M1185-00X MULTI CYLINDER 1 |
9 K87-M1186-00X BARB CONNECTOR STRAIGHT 1 |
10 K87-M11B1-00X AIR HOSE (145) 1 |
11 K87-M11B2-00X SCREW,FLAT HEAD + 1 |
12 K87-M11B3-00X SCREW,FLAT HEAD + 1 |
13 K87-M11B5-00X BOLT,HEXAGON SOCKET HEAD 2 |
14 K87-M11B6-00X PLANE WASHER 1 |
15 K87-M11B7-00X SPRING LOCK WASHER 1 |
16 K87-M11B8-00X SCREW NUT 1 |
17 K87-M11B9-00X CIRCLIP E 2 |
18 K87-M11BB-00X SCREW,FLAT HEAD + IB 1 |
19 K87-M11B4-00X SCREW,FLAT HEAD +IB |
K87-M1160-00X BACK PLATE ASSY 1 |
2 K87-M1166-00X GUIDE PLATE 1 |
3 K87-M1169-00X GUIDE PLATE 1 |
4 K87-M1191-00X DRIVE ROLLER UNIT 1 |
5 K87-M1192-00X INDENTATION LEVER ASSY 1 |
6 K87-M1196-00X SUB LEVER ASSY 1 |
7 K87-M1199-00X DRIVE GEAR ASSY 1 |
8 K87-M117B-00X PLANE WASHER 1 |
9 K87-M11BB-00X SCREW,FLAT HEAD + IB 1 |
10 K87-M119C-00X LEVER METAL ASSY 1 |
11 K87-M11BC-00X SCREW,FLAT HEAD + 2 |
12 K87-M119G-00X DRIVE ROLLER 1 |
13 K87-M119J-00X THRUST WASHER 1 |
14 K87-M119K-00X SPRING 1 |
15 K87-M119L-00X IDLE ROLLER ASSY 1 |
16 K87-M117B-00X PLANE WASHER 2 |
17 K87-M11BB-00X SCREW,FLAT HEAD + IB 2 |
18 K87-M119P-00X SPRING 1 |
19 K87-M11A1-00X LOWER GUIDE PLATE 1 |
20 K87-M11A3-00X LOWER GUIDE PLATE 1 |
21 K87-M11B9-00X CIRCLIP E 1 |
22 K87-M11BE-00X PLANE WASHER 6 |
23 K87-M11BF-00X SCREW,FLAT HEAD +IB 2 |
24 K87-M111N-00X SCREW,PAN HEAD + |
Any need,please ask me.
Thanks
