Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > 32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings

32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings

Integration Trading (Xiamen) Co.,Ltd Business license
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings thumbnail-1
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings thumbnail-2
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings thumbnail-3
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings thumbnail-4
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings photo-1
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings photo-2
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings photo-3
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A, Taper Roller Bearings photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HPC or Natural or OEM
Place of Origin:
China
Model Number:
32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HPC or Natural or OEM
Place of Origin China
Model Number 32026 X 30226 32226 30326 31326 32326 32028 30228 A 32228 30328 A 32328 A
Number of Row Single Row
Outside Diameter 200, 300
Bore Size 130, 140

Please contact with us via sale01@hady.Ltd directly or whatsapp/wechat +86 136 0603 6591 for rush case support.



Principal dimensionsLoad ratingsSpeed limitsWeight

DimensionsCalculation factors
Part   numberBoreOuterWidthDynamicStaticGreaseOilBC

dDTCCorpmKg

r1/r2r3/r4r5aeYYo

mmkN1 min−1

mmmm
32026 XA13020045326550170022004,9345342,52143,30,431,380,76
30226 A13023043,75366521150020006,944034431450,431,40,8
32226 A13023067,755508301500200011,56454431560,431,40,8
30326 A13028063,7562780013001800175849541,5510,351,70,9
31326 A130280726057801600240018,56644541,5870,830,70,4
32326 A13028098,7585811801100160030,59378541,5660,351,70,9
32028 A14021045330580160021005,2845342,520,6460,461,30,7
30228 A14025045,75405540140019008,84236431470,441,40,76
32228 A14025071,7564410001400190014,56858431600,431,40,8
30328 A14030067,756709451200170021,2625355

0,351,70,96
32328 A140300107,75109016301200170035,810285554740,371,60,9


etails   part number:
- Suffix A:
increased load capacity

Single row tapered roller   bearings can be supplied  matched  in “DB”    or “DF” arrangement. These matched bearings are manufactured so that,  when    mounted opposite each other, the pair should have an established   initial axial clearance and a uniform distribution of the loading. Matched   bearings are used when the load carrying capacity of a single bearing is   insufficient, or when the thrust loads have to be carried at     a certain axial clearance in both   directions.
Dimensions in accordance with   ISO 355-2007


Tapered roller bearings are designed to take radial and thrust loads from one direction.

They consist of the inner race (cone), with cage guided rollers, and the outer race (cup).

The track has the same profile as the tapered rollers. The extension of the contact lines

meet at a common point on the bearing axis of rotation. The cone and cup are

seperable. By using two bearings as opposed mountings, they can carry thrust loadings

in both directions.

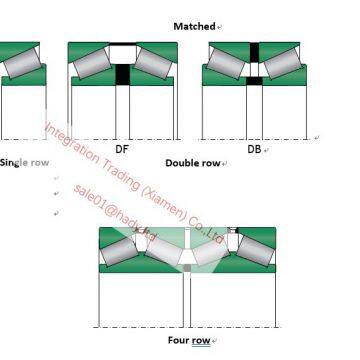

Single row tapered roller bearings can be supplied matched in “DB” or “DF”

arrangement. These matched bearings are manufactured so that, when mounted

opposite each other, the pair should have an established initial axial clearance and a

uniform distribution of the loading. Matched bearings are used when the load carrying

capacity of a single bearing is insufficient, or when the thrust loads have to be carried at

a certain axial clearance in both directions.

Dimensions in accordance with ISO 355-2007

Axial clearance

The axial clearance of single tapered roller bearings is adjusted on assembly. With matched bearings, as with double and 4 row bearings,

axial clearance is achieved by the addition of spacer rings ground to give the required clearance. Radial clearances for double

and four row tapered roller bearings are shown in the technical section. The radial clearance is transformed into axial clearance by the

following relation:

Axial clearance =   Radial clearance / 2 tan a

a = contact angle between rollers and the outer ring raceway


Product Tags: 32026 XA , 30226 A , 32226 A , 30326 A , 32326 A , 32028 A , 30228 A , 30328 A , 32328 A , 32228 A
