Product Description:
GYD serial Thermal oil heater is a kind of new-typed heating equipment with heat energy conversion. It takes the electricity as power, changes it into the heat energy through the electrical organs, takes the organic carrier ( heat Thermal oil ) as medium, and continues to heat through the compulsive circulation of the heat Thermal oil driven by high-temperature oil pump, so as to meet the heating requirements of users. In addition, it could also satisfy the requirements of set temperature and temperature controlling accuracy.
Product Application:

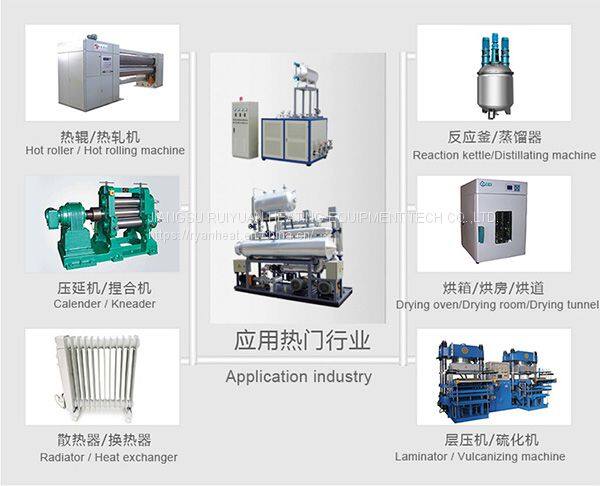

For non-woven fabrics, chemical industry, chemical fiber, rubber, composite, sanitary fittings and other industries.
Specifications:
1.All welded construction
2.Thermal Oil Heater: PID Temperature Controller (FUJI Electric PXR5/9)
3.Expansion tank shipped loose for mounting at the highest point in the piping system
4.Isolation gate valves and strainer
5. High temperature precision (± 1° C)
6. Horizontal centrifugal pump& Low-pressure (
7.SSR(Solid State Relay) control on heater circuits
8.Pressure test and Functional test of system prior to shipment
Details:
1. The primary circulating pump provides the flow in the system to take the heat from the electric heater and transfer it to the users.
2. Electric Thermal Oil Heater can reach 320° C(600° F), HOS are custom designed for many process
3. applications such as Roller, Presses, Mold, Jacketed Vessel, Exchanger, Mixers, etc.
4. HOS series thermal fluid system is the most compact temperature control system.

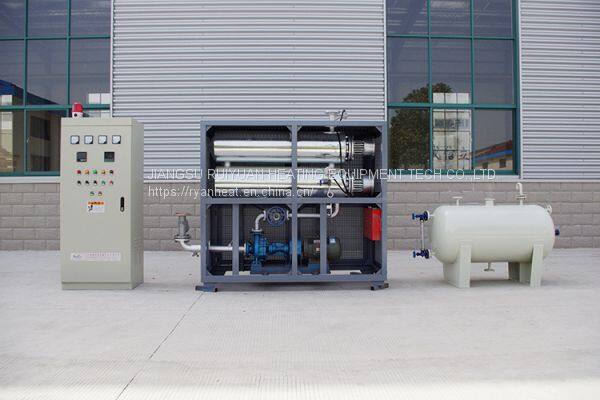

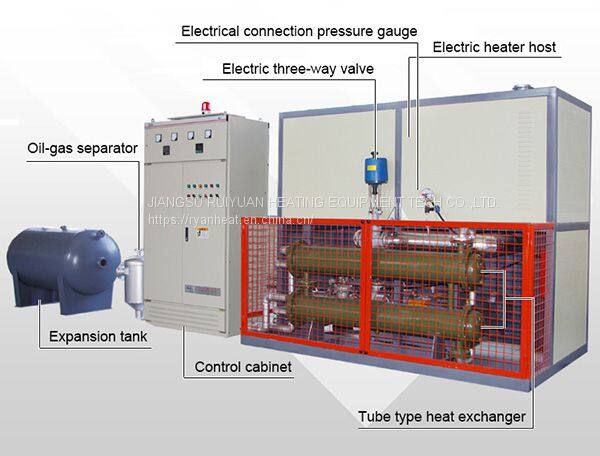

The whole system includes an electric heater, centrifugal pump, expansion tank, control center, strainer, stop valves,platinum resistance thermometer sensor, pressure gauge with electric contact,alumina silicate fibre insulation and connecting piping mounted on a welded steel base.
