Home > Products > carbon inside series > 316L stainless steel filaments twist thread 12micron*275filaments*3plies for carry low current for electroc signal-XT11923

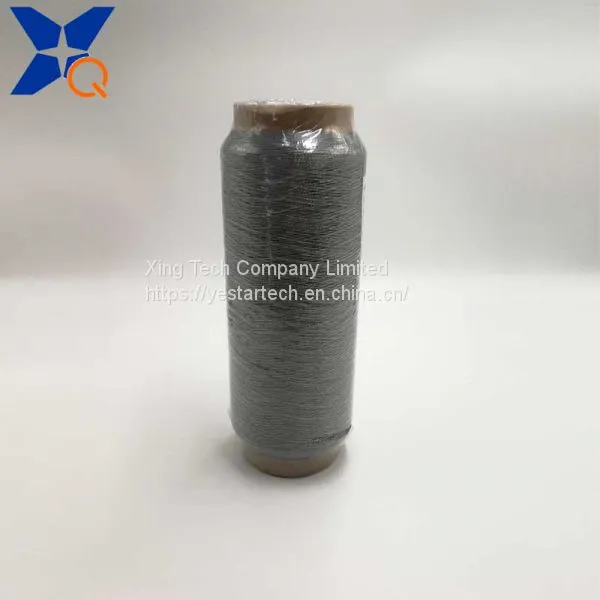

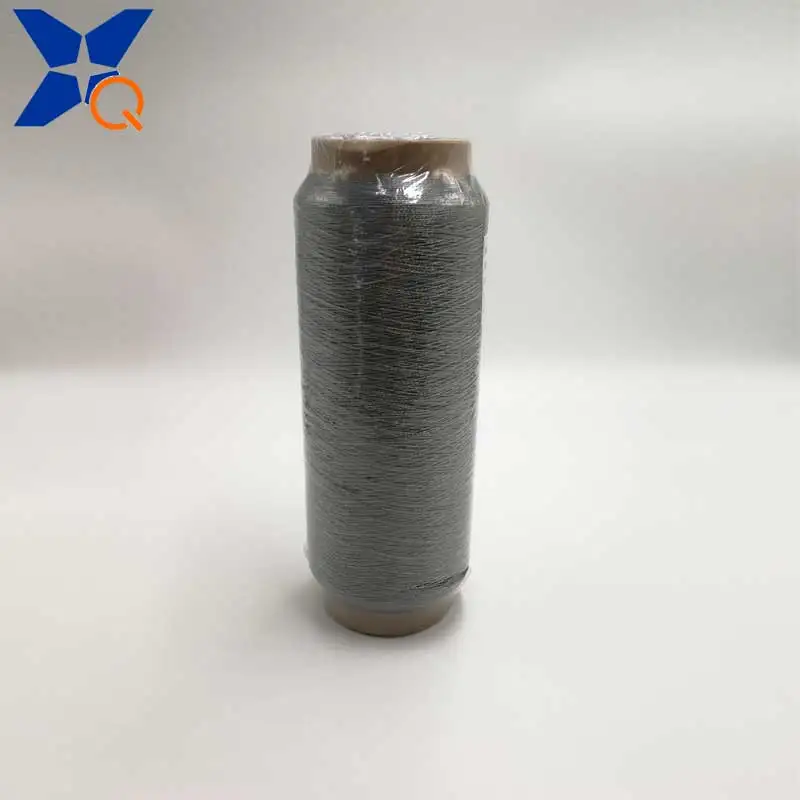

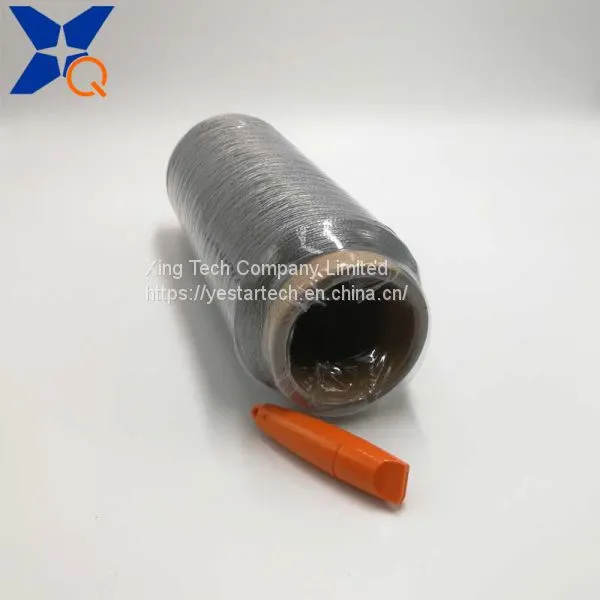

316L stainless steel filaments twist thread 12micron*275filaments*3plies for carry low current for electroc signal-XT11923
- 5000 Kilogram / Kilograms per Month
- Shanghai
- T/T PayPal Other
- 15 days
-
Blue green Ne21/2plies 10% stainless steel blended 90% polyester for knitting touch screen gloves-XT11269
-
Deep blue Ne21/2plies 10% stainless steel blended 90% polyester for knitting touch screen gloves-XT11927
-
Orange Ne21/2plies 10% stainless steel blended 90% polyester for knitting touch screen gloves-XT11928
-
Purple Ne21/2plies 10% stainless steel blended 90% polyester for knitting touch screen gloves-XT11929
-
Ne32/1 20% stainless steel blended 80% polyester for shielding electromagnetic wave radiation for knitting mattress ticking-
-
0.2mm/108Denier polyester filaments reflective Luminous thread embroidery yarn
Product Details
| Brand Name: | Yestar | Place of Origin: | China | Model Number: | XT11923 |
| Use: | Spinning | Style: | Solid | Feature: | Other, Anti-Static, conductive |
| Pattern: | Raw | Fineness: | 12 micron*275filaments*5plies | Fiber Length: | CONTINUOUS |
| Fiber Type: | Staple |
Product Description
316L stainless steel filaments twist thread 12micron*275filaments*3plies for carry low current for electroc signal
Principal Component: Stainless steel of 304 or 316L, or Fe-Cr-Al-alloy
Descriptions: metal fiber twist thread is manufactured into flexible thread by twisting with a single strand or multiple strands of long fibers. It possesses stable resistivity, fine high temperature resistant and conductive performance.
Purpose:
1. Anti-static brushes
2. High temperature resistant sewing thread
3. Signal transmission line for flexible circuit , electronics
4. Conductive transmission line
5. Heating wire.
6. Intelligent cloths(wearable textiles)
Spec.:
Specification | Weight per Meter(g) | Breaking Load(N) | Elongation (%) | Average Resistance(ohm) |
14μm×90×1 | 0.12 | 25 | 1.10% | 61 |
12μm×90×2 | 0.17 | 44 | 1.10% | 42 |
12μm×100×1 | 0.095 | 24 | 1.10% | 59 |
12μm×100×2 | 0.19 | 41 | 1.10% | 38 |
12μm×100×3 | 0.28 | 69 | 1.10% | 22 |
12μm×275×1 | 0.26 | 59 | 1.10% | 27 |
12μm×275×2 | 0.54 | 75 | 1.10% | 14 |
12μm×275×3 | 0.78 | 125 | 1.10% | 9 |
12μm×275×4 | 1.05 | 130 | 1.10% | 7 |
12μm×275×5 | 1.3 | 160 | 1.10% | 5 |
12μm×275×6 | 1.5 | 180 | 1.10% | 4 |
8μm×1000×1 | 0.42 | 69 | 1.10% | 16 |
8μm×1000×2 | 0.85 | 108 | 1.10% | 8 |
12μm×1000×1 | 0.95 | 100 | 1.10% | 7 |
12μm×1000×2 | 1.9 | 340 | 1.10% | 4 |
Aslo could produce Nm11/2plies or Nm11/3plies pure 316L stainless steel staple fiber spun yarn.
32bobbins/carton, net weight:32kg/carton, dimension of carton: 56cm*56cm*38cm.
By sea, by general air transportation, by DHL/TNT/UPS/FedEx.
Various spec. could be customized.
a) Could carry low current for LED parts?
Of course, it is 316L metal, could do.
b) Could used for touchscreen gloves worn in winter?
Could not., because it is a little rigid. Should use stainless steel staple fiber spun yarn for sewing gloves, it is softeness.
