GYXTW GYXTW53 Armored Fiber Cable For Outdoor Duct Underground Optic Fiber Cable

Application:

1.Access network   2.Bureaus network   3.Metropolitan network  4.Aerial & conduit/duct application

GYXTW single-armored cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

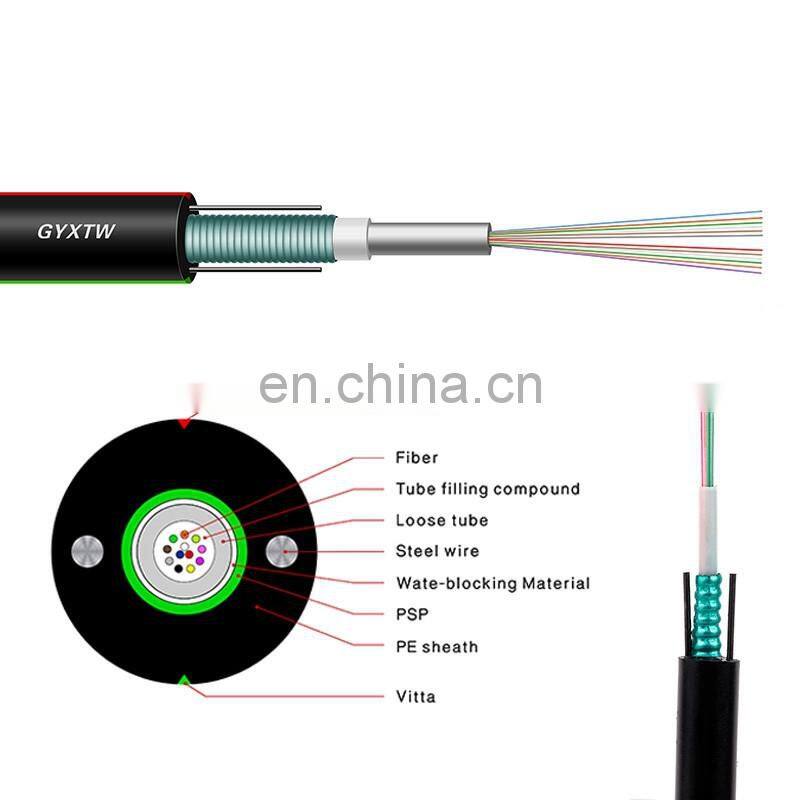

In the GYXTW53 cable, singlemode/multimode fibers are positioned in the loose .tube, which is made of high modulus plastic materials and filled with filling compound.two PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

Advantage:

1.Low dispersion and attenuation

2.Light weight, small diameter, easy to lay

3.Good tensile strength and crush resistance performance

4.Good moisture-resistance, water blocking, and flexibility

5.Good mechanical and temperature resistant performance

Characteristics:
1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2.Critical protection to fibers,based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube.
3.Special compact structure to avoid the loose tube shrinkage.
4.Excellent crush resistance and flexibility.
5.PSP enhances the cable crush-resistance, impact-resistanceand moisture-proof.
6.Two parallel steel wires ensure tensile strength.Small diameter, light weight and installation friendliness with long delivery length.
7.Excellent ultraviolet prevention with PE sheath.
8. Small diameter, light weight and installation friendliness

Standards:
Comply with standard YD/T 769-2010
