GYTA53 12 24 48 Core Double Jacket Steel Wire Armored Duct Direct Buried Outdoor Optical Fiber Cable
- Shanghai or Shenzhen
- T/T Credit Card
You May Like
-
GYXTW Loose Tube Steel Wire Armored Single Mode Fiber Optic Cable 4 6 8 12 24 Core Outdoor Duct Optical Cable
-
Fiber Optic Cable Supplier Outdoor Armoured Duct Fiber Optic Cable 12 24 48 72 96 Core Steel Wire Aerial Cable
-
GYTS 12 24 48 72 36 Core Single Mode Multimode Outdoor Underground Duct Optical Fiber Cable
-
GYTA 8 12 16 24 32 36 48 Core Outdoor G652D Single Mode Armored Aerial Duct Underground Fiber Optical Cable
-
Best Sale GJFJV G652D Multimode Simplex Indoor Optic Fiber Cable Factory Price
-
24 Cores Multimode 50/125 OM2, Riser, FRP Strength Member, Non-unitized, Tight-Buffered Distribution Indoor Fiber Optical Cable
Product Details
| Brand Name | Shuanglin | Place of Origin | Hunan, China | |
| Model Number | GYTA53 |
Product Description
GYTA53 12 24 48 Core Double Jacket Steel Wire Armored Duct Direct Buried Outdoor Optical Fiber Cable
1.Long-distance communication,LAN,Moisture-proof and rodent-proof

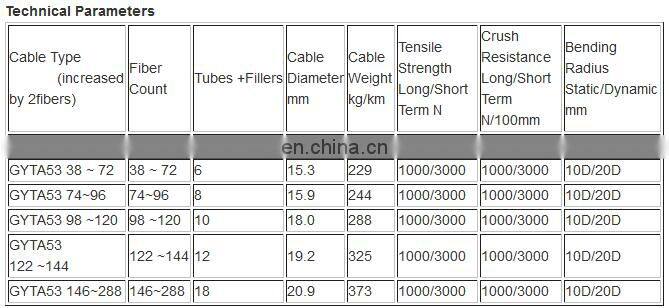

2.Technical Data
3.Adopted to Outdoor distribution.

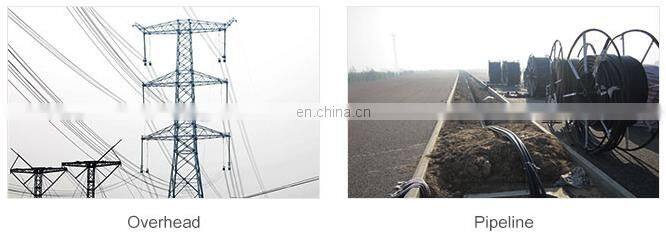

4.Suitable for aerial duct and buried method.
Features:
1) Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission, mechanical and environment performance.
2) Aluminum tape coated with PE inner sheath and steel tape coated with PE outer jacket provides excellent water blocking performance.
3) Good water blocking material prevents the cable from longitudinal water penetration.
4) Double jacket design enhances the performance of crushing and water blocking.
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
excellent mechanical and environmental characteristics.
3. Double sheath structure makes cable have nice moisture resistance and crush resistance performance. 4. Small cable diameter, light cable weight, easily to install.
Description:
The Fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and
fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core.which is filled with the filling compound to protect it from water ingress.Then the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath
Advantage:
1.Good mechnical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.Steel wire used as the central strength member
6.Loose tube filling compound
7.APL moisture barrier
8.100% cable core filling
9.PSP enhacing moisture−proof
10.Water−blocking material
Standards:
GYTA53 Fiber Optical Cable Comply with standard YD/T901-2001 as well as IEC 60794-1
Operating /Storage Tempeature:-40°c +70°c

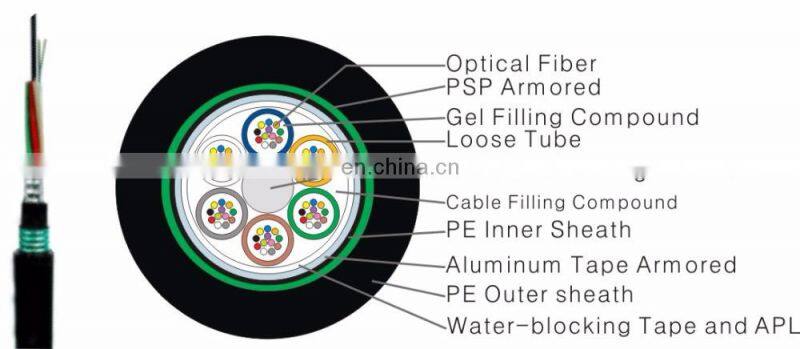

Cable Struscture:
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales
people for more detailed information.

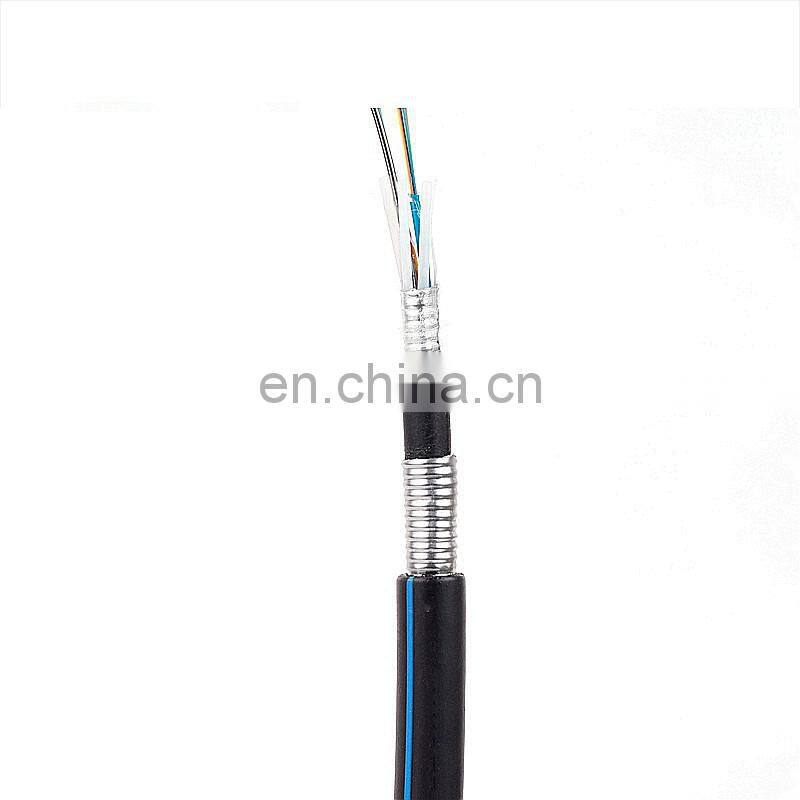

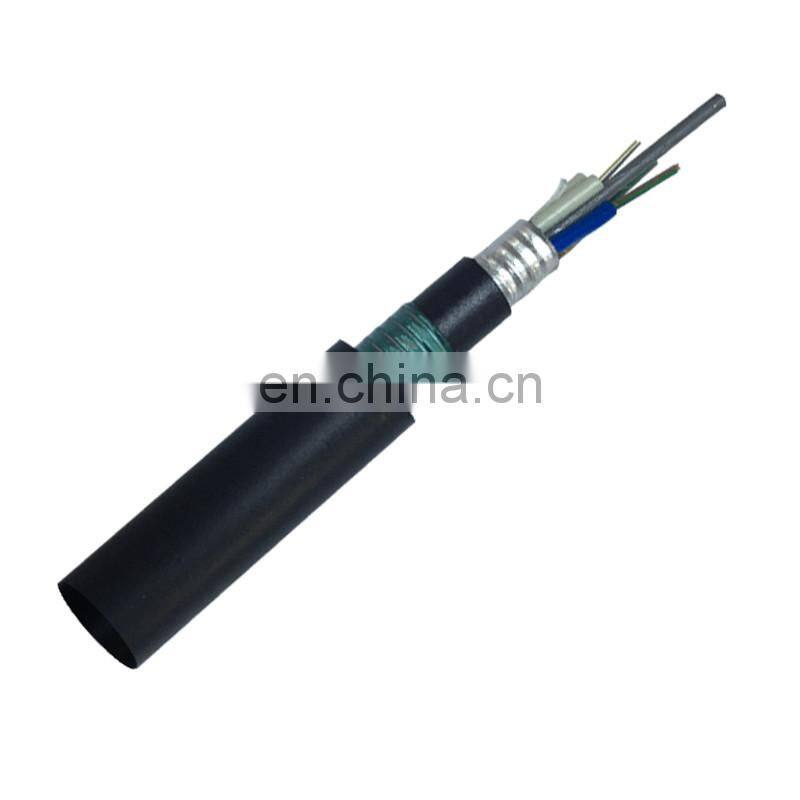

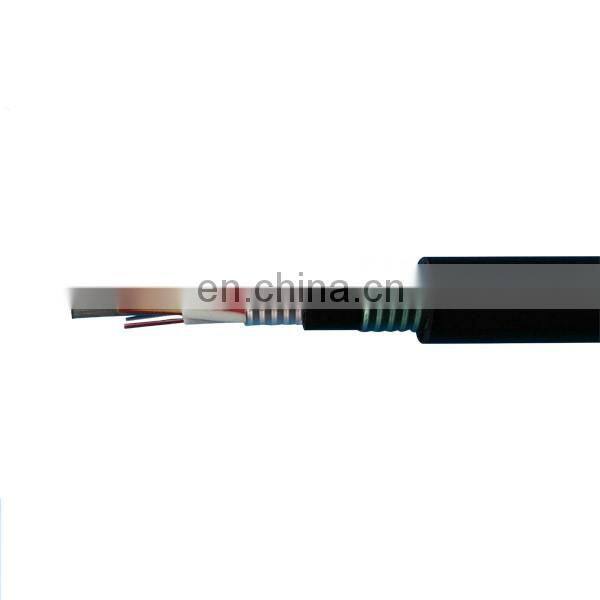

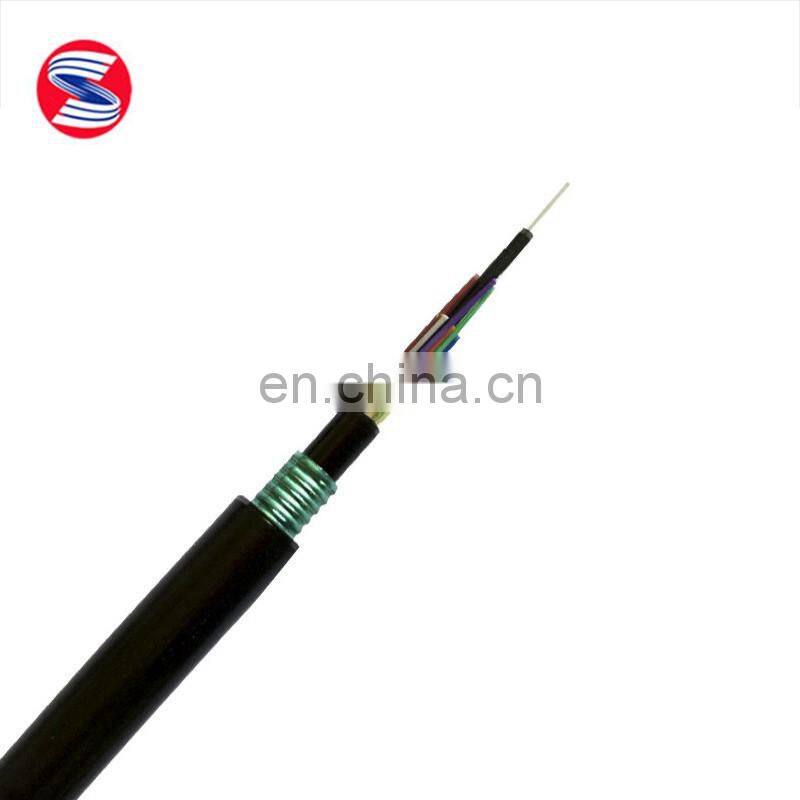

Sample Pictures:
Hunan Shuanglin Communication Technology Co.,Ltd. is one of the biggest manufacturer of fiber optic cable in China.
The company establishes industrial bases in up to 10 provinces of China and in South America, Europe, South Africa, Mid East, Southeast Asia, and marketing technological service branches in over 30
countries and regions around the world, supplying products in over 80 countries and regions.
The company has passed a lot of international management certificates such as UL, ROHS, ISO9001, ISO14001, OHSAS18001 and so on.
Follow up the clients'demands; make greater efforts to create more values for them, maintain long-term strategic cooperation with all larger Telecom Carriers, integrators and clients at home and abroad.
More Products you can visit our website: http://sl-fibercable.en.china.cn
Why Choose Us:
1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
Re.We usually quote within 12 hours after we confirm the technical data of your products.
2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.
3.What are your terms of payment?
Re.30% in advance,and 70% before shipment
4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.
5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
6.Can you send me a free sample?
Re.Yes,We are willing to send free sample,if you would like to pay the shipping costs.
7.Do you accept OEM or ODM?
Re.Yes,we're factory. any your customized requirements we can do our best to help you realize.
