H 3064 H 3064 OH H 3964 H 3164 H 3164 OH H 3264 H 3264 OH, Adapter Sleeve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HPC or Natural or OEM
Place of Origin:
China
Model Number:
H 3064 H 3064 OH H 3964 H 3164 H 3164 OH H 3264 H 3264 OH
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
H 3068 H 3068 OH H 3968 H 3168 H 3168 OH H 3268 H 3268 OH, Adapter SleeveNegotiableMOQ: 1 Piece -
H 3072 H 3072 OH H 3972 H 3172 H 3172 OH H 3272 H 3272 OH, Adapter SleeveNegotiableMOQ: 1 Piece
-
H 3076 H 3076 OH H 3976 H 3176 H 3176 OH H 3276 H 3276 OH, Adapter SleeveNegotiableMOQ: 1 Piece
-
H 3080 H 3080 OH H 3980 H 3180 H 3180 OH H 3280 H 3280 OH, Adapter SleeveNegotiableMOQ: 1 Piece
-
H 3084 H 3084 OH H 3984 H 3184 H 3184 OH H 3284 H 3284 OH, Adapter SleeveNegotiableMOQ: 1 Piece
Brand Name
HPC or Natural or OEM
Place of Origin
China
Model Number
H 3064 H 3064 OH H 3964 H 3164 H 3164 OH H 3264 H 3264 OH
Please contact with us via sale01@hady.Ltd directly for detail requirement
or
whatsapp/wechat +86 136 0603 6591 , Skype: hadyhuang for rush case support.
| Principal dimensions | Weight | Accesories included | |||||||
| Part number | d1 | d | d3 | B1 | B2 | G | Locking Nut | Locking Device | |
| Kg | Part Number | Part Number | |||||||
| mm | |||||||||
| H 3064 | 300 | 320 | 380 | 171 | 42 | M 320x5 | 24,600 | HM3064 | MS3064 |
| H 3064 OH | 300 | 320 | 380 | 171 | 42 | M 320x5 | 22,000 | HM3064 | MS3068-64 |
| H 3964 | 300 | 320 | 380 | 140 | 42 | M 320x5 | 21,500 | HM3064 | MS3064 |
| H 3164 | 300 | 320 | 400 | 226 | 42 | M 320x5 | 34,900 | HM3164 | MS3164 |
| H 3164 OH | 300 | 320 | 400 | 226 | 42 | M 320X5 | 32,000 | HM3164 | MS3164 |
| H 3264 | 300 | 320 | 400 | 258 | 42 | M 320x5 | 39,300 | HM3164 | MS3164 |
| H 3264 OH | 300 | 320 | 400 | 258 | 42 | M 320x5 | 35,000 | HM3164 | MS3164 |

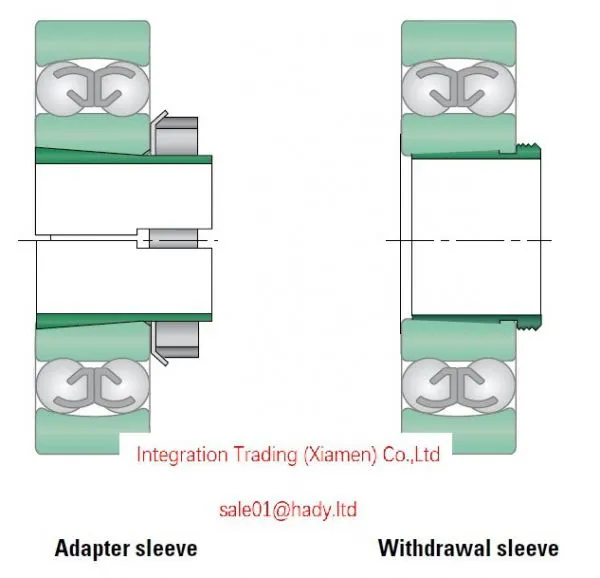

Adapter sleeves are used to locate tapered bore bearings on cylindrical shafts.
This allows less accurate machining of the shafts and ease of location.
Adapter sleeves are available in metric or inch bore sizes - the external taper is
1:12.
See pages from 90100a to 90100m for tolerances.
Hydraulic sleeves are available from 200mm bore diameter. Suffix: OH
Dimensions in accordance with ISO 2982-1995
Details part number:
- Suffixes OH: sleeve
including oil supply
ducts and oil grooves.
Adapter sleeves
with bore size 220mm and larger
can also be supplied with a locking
clip.
Suffix MS
