51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings

51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings thumbnail-1
51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings thumbnail-2
51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings thumbnail-3
51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings photo-1
51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings photo-2
51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M, Single Double Row Thrust Ball Bearings photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HPC or Natural or OEM
Place of Origin:
China
Model Number:
51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M
Contact Supplier Request Quote Chat Now
Integration Trading (Xiamen) Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HPC or Natural or OEM
Place of Origin China
Model Number 51128 M 51228 M 51130 M 51230 M 51330 M 51430 M 51132 M 51232 M 52232M 62332M 52234M
Number of Row Single Row
Seals Type Single Row, Double Rows
Outside Diameter 180, 240
Bore Size 140, 150

Please contact with us via sale01@hady.Ltd directly for detail requirement

or

whatsapp/wechat +86 136 0603 6591 for rush case support.



 Principal dimensions Basic load ratings Speed limits Weight Radius Dimensions
Part  number Bore Outer Height Dynamic Static Grease Oil

d D H C Co rpm Kg rs min D1 d1 M

mm kN 1 min−1 mm mm
51128 M 140 180 31 107,0 377 1300 1800 0,90 2,0 142 178 0,850
51228 M 140 200 46 215,0 669 950 1400 2,00 4,5 143 197 1,900
51130 M 150 190 31 109,0 402 1200 1700 1,00 2,2 152 188 0,900
51230 M 150 215 50 257,0 795 900 1300 5,21 5,6 153 212 2,800
51330 M 150 250 80 377,0 1200 670 900 9,00 15,7 154 245 9,000
51430 M 150 300 120 668,0 2242 - 650 42,00 4,0 154 295 20,000
51132 M 160 200 31 112,0 427 1200 1700 1,00 2,3 162 198 1,000
51232 M 160 225 51 247,0 803 850 1200 3,20 6,5 163 222 3,200
52232M 140 225 90 247 803 850 1200 12,20 1,5 1,1 163 20
62332M 140 250 140 470 1570 630 850 26,20 2,1 1,1 154 31
52234M 150 240 97 269 874 800 1100 15,20 1,5 1,1 173 21


Thrust ball bearings are available in single and double acting versions. They sustain axial loads only, and therefore should not be used where radial loads are present.



The thrust loading should not drop below a minimum axial load, maintaining contact between the balls and the track when centrifugal forces are present.



They are manufactured in the following series:  511, 512, 513, 514, 522, 523

and 524.



Dimensions in accordance with ISO 104-2002 Single-acting thrust ball bearings

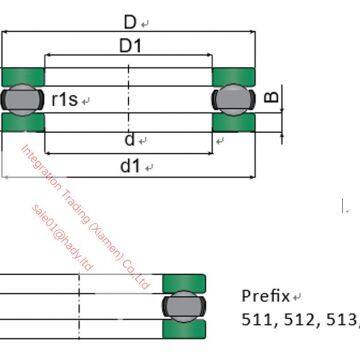

Single acting thrust ball bearings are used to carry thrust loads in only one direction and cannot carry radial loads. They are made up of a shaft washer,  a flat housing washer and a ball and cage assembly. These bearings can be easily mounted by separately fitting each washer.

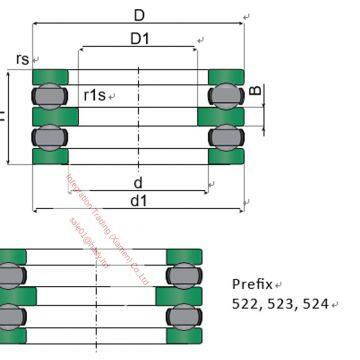

Double-acting thrust ball bearing,These bearings can carry thrust loadings in both directions. They are fitted with an extra thrust washer and two ball and cage assemblies.


Minimum load



The thrust ball bearing requires a minimum axial load, so that the rolling elements maintain rolling contact and sliding is minimized. “Fam” can be obtained from formula:

Fam = M [ n Max/1000 ]2 [N]

where:

Fam = minimum thrust load (N)

M = Factor for minimum load

n = speed in RPM
