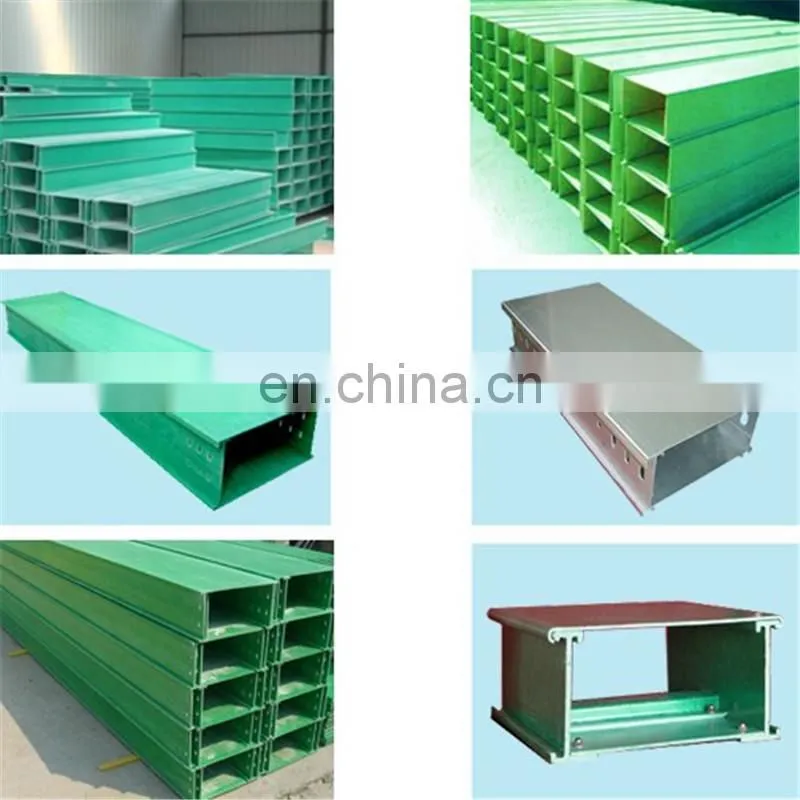

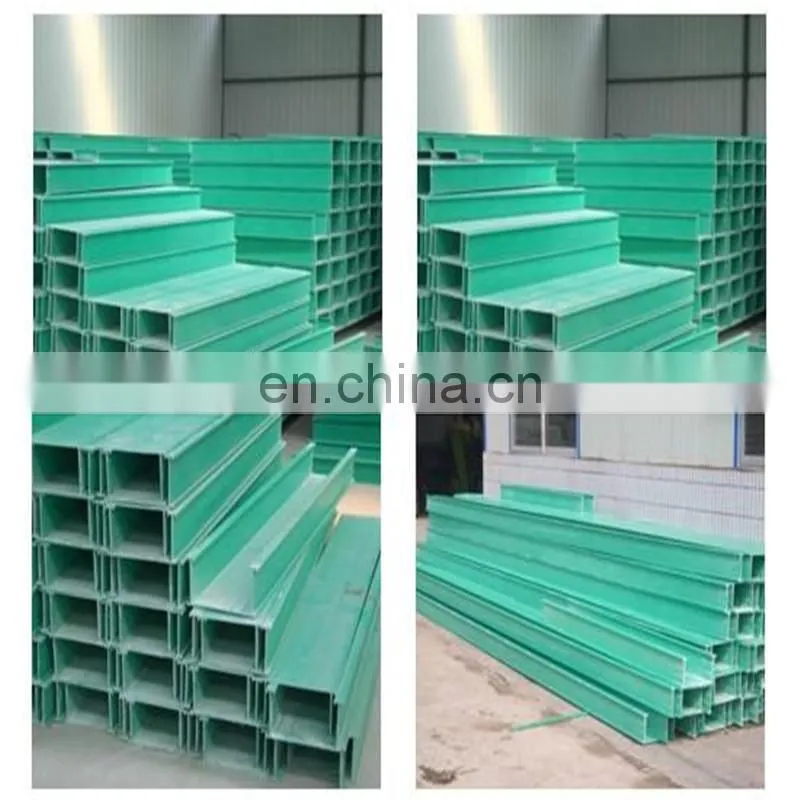

FRP cable tray :

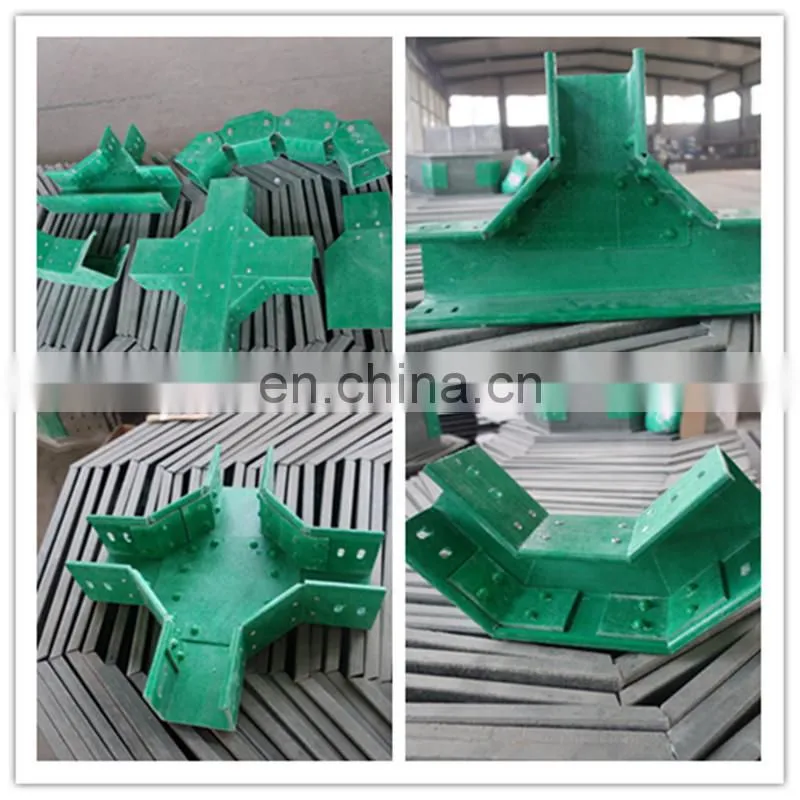

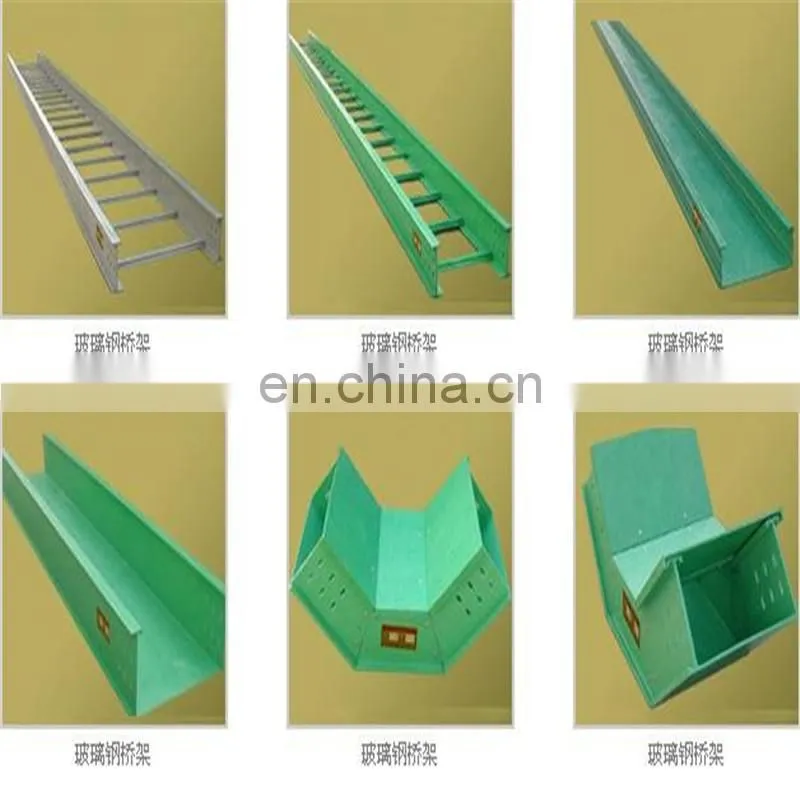

The full name of the rigid structure system (hereinafter referred to as the bridge) is composed of a groove, a tray type or a cascade type, a curved line ,a three-way, a four-way componment ,and a bracket (arm bracket) and a hanger.FRP cable tray has both rigidity of metal bridge and toughness of FRP bridge. It has good corrosion resistance and anti-aging performance.It can be widely applied to petrolum industry,chemical industry,elextronic power,light industry,television,telecommunications and so on.
The FRP cable tray produced by our company adopts the relatively advanced FRP technology at home and abroad,and is continuously manufactured by mechanization.Therefor,it not only has the advantages of bridge structure manufactured by domestic peers,but also has a stable size and can be arbitrarily selected.The length can be cover 8 meters,with higher strength ,stiffness and corrosion resistance.
Features:
| High strength yet light weight | Helps save on transportation |
| Corrosion resistance | Won't rot,rust or corrode |
| Fire-retardant and nonconductive | Helps create a safer environment |
| Dimensionally stable | Won't shrink,swell,wap or bow |
| Virtually maintenance-free | Durable and wealther -resistant for a longer life cycle |
| Easy to fabricate and install | Can be cut ,drilled and assembled with standard tools |
| Non-leaching | Does not require environmentally hazardous preservatives |
Performance indexes of box material of fiber-reinforced unsaturated polyester resin:
| Index | Unit | Value |
| Density | G/cm3 | 1.75~1.95 |
| Water Absorbency | mg | <20 |
| Thermal deformation temperature | ℃ | 200~204 |
| Impact strength of simply supported beam | KJ/m2 | 70~90 |
| Bending strength | Mpa | 150~180 |
| Insulation resistance(normal state) | Ω | >=1.0×1013 |
| Insulation resistance(immersion in water for 24h) | Ω | >=1.0×1012 |
| Power frequency dielectric strength | MV/m | >=12.0 |
| Dielectric dissipation factor(1MHz) | MHz | <=0.0015 |
| Relative permittvity(1MHz) | MHz | <=4.5 |
| Arc resistance | S | >=180 |
| Proof tracking index(PTI) | V | >=600 |
| Fire resistance property | Grade | FVO |
| Gas toxicity | Grade | ZA1 |
| Curing temperature | ℃ | 130~140 |
| Pentration degree | <5 | |
| Content of glass fiber | 25% | |
| Material shrinlage | 0.1%~0.05% | |
| Anti-stretch intensity | >60 |
Size:
| Types | b(mm) | h(mm) | Th(mm) |
|
ZBQ-C ZBQ-P ZBQ-T |
50 | 25 | 3 |
| 50 | 3 | ||
| 100 | 50 | 3 | |
| 75 | 3 | ||
| 100 | 3 | ||
| 150 | 75 | 3.5 | |
| 100 | 3.5 | ||
| 125 | 3.5 | ||
| 150 | 3.5 | ||
| 175 | 3.5 | ||
| 200 | 75 | 4 | |
| 100 | 4 | ||
| 125 | 4 | ||
| 150 | 4 | ||
| 200 | 4 | ||
| 250 | 75 | 4 | |
| 100 | 4 | ||
| 125 | 4 | ||
| 150 | 4 | ||
| 200 | 4 | ||
| 300 | 100 | 4.5 | |
| 125 | 4.5 | ||
| 150 | 4.5 | ||
| 200 | 4.5 | ||
| 350 | 100 | 4.5 | |
| 125 | 4.5 | ||
| 150 | 4.5 | ||
| 200 | 4.5 | ||
| 400 | 75 | 5 | |
| 100 | 5 | ||
| 125 | 5 | ||
| 150 | 5 | ||
| 175 | 5 | ||
| 200 | 5 | ||
| 500 | 100 | 5.5 | |
| 150 | 6 | ||
| 200 | 6.5 | ||
| 600 | 100 | 6.5 | |
| 150 | 7 | ||
| 200 | 7.5 | ||
| 800 | 100 | 7 | |
| 150 | 7.5 | ||
| 200 | 8 |
1.Good after-sales service and technical support.
2.Our company is involved in process design ,produce ,sale,installation and training .Guarantee the quality and delivery time.
3.Moderate price.
Beijing ZLRC Environmental Protection Equipment Co.Ltd is a professional large scale supplier of all types of water&plumbing systems products ,whose group headquarters is located in Beijing and Shijiazhuang area,our main products include PPR pipe and fittings,HDPE pipe and fittings,PVC pipe and fittings,valve,water meter etc,with development of over 10 years,our company is widely known as providing quality products and attentive service,which has won recognition and praise of both domestic and foreign customers,peers and experts.
1.Q:Are you trading company or manufacturer?
A:We are factory.
2.Q:Do you provide samples? is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of the freight.
3.Q:How long is your delivery time?
A:Generally it is 10 days if the goods are in stocks,or it is 30 days if the goods are not in stock,it is according to quantity.
4.Q:What is the regular shipping port?
A:Tianjin port.
5.Q:What is your terms of payment?
A:Payment <=1000USD,100% in advance.Payment>=1000USD,30% in advance,the balance should be paid before shipment.
