Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine

Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine thumbnail-1
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine thumbnail-2
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine thumbnail-3
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine thumbnail-4
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine thumbnail-5
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine photo-1
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine photo-2
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine photo-3
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine photo-4
Automatic Animal Feed Pellet Machine Aquatic Feed Processing Line Steel Feed Machine photo-5
US$ 6000 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
dingrun
Place of Origin:
China
Model Number:
DSE65, DSE70, DSE75, DSE85, DSE90, DSE95, DSE120
Contact Supplier Request Quote Chat Now
Jinan Dingrun Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or customized
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name dingrun
Place of Origin China
Model Number DSE65, DSE70, DSE75, DSE85, DSE90, DSE95, DSE120
Type Feed Pellet Machine
Certification CE ISO SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty one year
Weight 1800
Dimension(L*W*H) 17000*1200*2200mm
Condition New
Voltage 380V 50HZ or customized
Power(W) 22kw,30kw,45kw,55kw,75kw,90kw,120kw,
Product Description
floating fish fodder making equipment floating fish food production plant

1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Dingrun provide basic fish food formula according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the fish feed production line (depending on your require)

Flow chart diagram:
Grinding→mixing→extruding→drying→flavoring→cooling→packaging
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.

                                  Technical parameter for floating fish food production plant

Model
Installed Power
(kw)
Power Consumption (kw)
Capacity
(kg/h)
Dimension
(m)
DSE65 processing line
74
52
120-180
17*1.2*2.2
DSE70 processing line
95
70
200-300
20*1.5*2.2
DSE75 processing line
110
82
250-400
26*1.5*2.2
DSE85 processing line
139
104
400-800
28*3.5*4.3
DSE90 processing line
132
75
800-1200
28*3.5*4.3
DSE95 processing line
165
90
1500-2000
35*3.5*4.3
DSE120 processing line
469
380
2000-2500
45*20*22
 DSE135 processing line
712
570
3000-3500
50*20*25
Raw material:

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

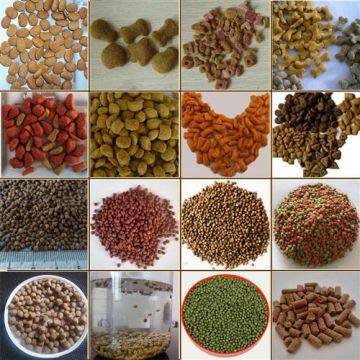

Final product:

fish feed pellet /color customized/floating and sinking type/length customized
diameter from 0.2mm to 20mm

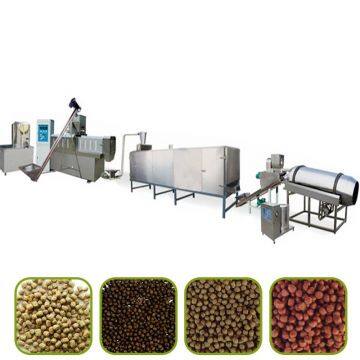

Equipment list in the floating fish fodder making equipment :

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

1)mixer of floating fish fodder making equipment floating fish food production plant

Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.
Type
Vertical and horizontal type
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel

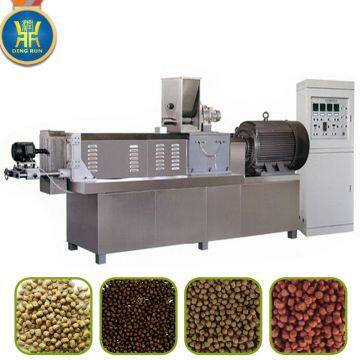

2)extruder of fish feed machine floating fish feed pellet machine

Name
Twin screw extruder
Usage
To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould
Model
DSE65, 70, 75, 90, 95, 120, 135
Motor
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity
100kg/h to 10 ton/h
Material
Screw materials 38CrMoAl
stainless steel, carbon steel
Dry type twin screw extruder for fish feed

capacity from 100kg/h to 1 ton/h

Wet type twin screw extruder for fish feed

capacity from 200kg/h to 10 ton/h

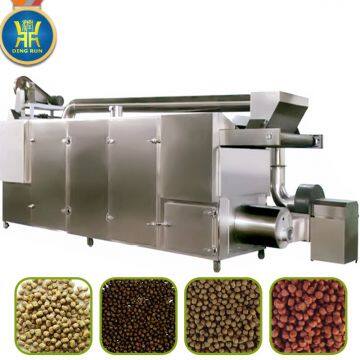

3)oven of fish feed machine floating fish feed pellet machine

Name
Dryer (oven)
Usage
the expanded food go through the "s" passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Model
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel
Electrical heating dryer


Gas or Diesel fired heating dryer


4)flavoring of fish feed machine floating fish feed pellet machine

Name
Flavoring machine
Usage
To mix the oil and flavors on the surface of the fish feed
Type
single and double flavoring drum
Motor
0.75kw
Capacity
100kg/h to 10 ton/h
Material
stainless steel

5)packaging of fish feed machine floating fish feed pellet machine

Name
Packaging machine
Usage
To pack the fish feed with required weight
Type
Automatic
Flowing Process
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material
stainless steel, carbon steel
Our advantages
Our Service

1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
    how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
   how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.

Our Company
Packing & Delivery

 Packing and delivery

 •  Inside package is plastic film, outside is wooden or plywood case(based on the customers'

     need).

 •  Only plastic film nude packing with wooden pallet.

 •  We can supply fumigation package and certificate.

 •  Shipping, train, express or upon clients' demands.

FAQ

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.
