DMG GLIDEMEISTER TWIN 42 Turning & Milling Machine

MFG.year 2003

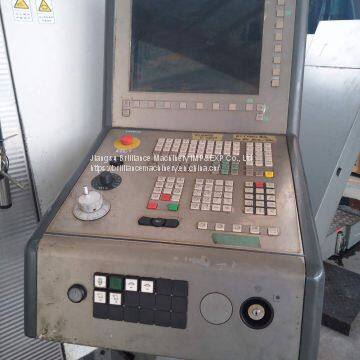

Controller SIEMENS

Turning length 650mm

Turning diameter 120mm

Circulation diameter 250mm

Spindle distance 900mm

Travel x1 300mm

Travel z1 650mm

Travel x2 180mm

Travel z2 650mm

Travel y1 +/-40mm

Travel counter spindle x3 175 mm

Travel counter spindle z3 670 mm

Spindle bore 42mm

Spindle motor power 25kw

Main spindle speed 35-7000rpm

Max torque 200Nm

Counter spindle bore 42mm

Counter Spindle - Spindle speeds 35-7000rpm

Counter spindle - Max torque 200Nm

C axis 2x

C-axis rapid traverse 2000rpm

C-axis torque 150Nm

Rapid traverse X+Z - axes 30m/min

Rapid traverse Y-axis 15m/min

Rapid traverse counter spindle x3=15m/min

Rapid traverse counter spindle z3=30m/min

Tool turret 2x12pos

Number of driven tool stations2x12

Shank diameter 30mm

Spindle taper DIN 69880

Max speed of the driven tools 4000rpm

Torque 20 Nm

Total power requirement 65 kVA

Internal coolant supply

Chip conveyor

Dimension 6150mm×2460mm×2630mm

Weight 10400kg
