Brass DN8 1/4inch Mini Intelligent Electric Operated Ball Valve With Indicator And Manual

One.Product data:

A20-N20-B2-B DN8 DN8 1/4inch brass mini intelligent electric Operated Ball Valve with indicator and manual

Technical Parameters:

Specifications:

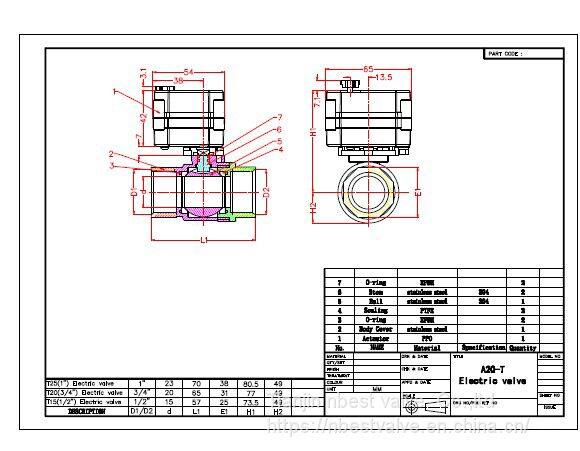

Dimension figure:


Wiring diagramCR2 01 Wiring Diagram ( 2 wires control )

·RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position
·BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
﹡Suitable Working Voltage: DC5V/DC12V/DC24V

﹡Exceeding the working voltage is forbidden

CR2 02 Wiring Diagram ( 2 wires control – Spring return  in case of the power failure)

·When SW is closed , the valve open. the actuator automatically power off after in place

·When SW is open, the valve closed, the actuator automatically power off after in place
﹡Suitable Working Voltage: AC/DC9-35V

﹡Exceeding the working voltage is forbidden

CR3 01 Wiring Diagram (3 wires control )

·RD & GR connect with positive, BK connect with negative

·When OPEN( RD) & SW connected , the valve open, the actuator automatically power off after in place , valve remains fully open position

·When CLOSE(GR) & SW connected, the valve closed, the actuator automatically power off after in place, valve remains fully closed position.

﹡Suitable Working Voltage: DC5V，DC12V，DC24V

﹡Exceeding the working voltage is forbidden

CR3 02 Wiring Diagram (3 wires control )

·RD connect with positive, the BK & GR connect with negative

·SW CLOSED, the valve OPEN, the actuator automatically power off after in place.

·SW OPEN, the valve CLOSED, the actuator automatically power off after in place.

﹡Suitable Working Voltage: DC9V-35V

﹡Exceeding the working voltage is forbidden

CR3 03 Wiring Diagram (3 wires control)

·RD& GR connect with positive, the BK connect with negative。

·SW CLOSED, the valve OPEN,  the actuator automatically power off after in place

·SW OPEN, the valve CLOSED,  the actuator automatically power off after in place.

﹡Suitable Working Voltage: AC/DC9-35V/AC110-230V

﹡Exceeding the working voltage is forbidden

 CR3 04 Wiring Diagram (3 wires control)

·RD & GR connected with positive, and the BK connected with negative

·When RD & SW connected, the valve closed, the actuator automatically power off after in place , remains fully closed position

·When GR & SW connected, the valve open, the actuator automatically power off after in place , remains fully open position.

﹡Suitable Working Voltage: DC5V，DC12V，DC24V，AC/DC9-35V

﹡Exceeding the working voltage is forbidden

CR5 01 Wiring diagram ( with feedback signal)

1RD connect with positive, the BK connect with negative，the valve closed, the actuator automatically power off after in place .

2 BK connect with positive, the RD connect with negative，the valve open, the actuator automatically power off after in place .

3.BL & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully

Suitable Working Voltage:：DC12V,DC24V

Exceeding the working voltage is forbidden

CR502 Wiring Diagram ( 5 wires control – Spring return)

·When SW is closed , the valve open. the actuator automatically power off after in place

·When SW is open, the valve closed, the actuator automatically power off after in place   BL & WT are connect when the valve open fully, YW & WT are connect when the valve cl  osed fully

﹡Suitable Working Voltage: AC/DC9-24V，AC/DC110V-230V,

﹡Exceeding the working voltage is forbidden

CR7 01 Wiring Diagram ( 7 wires control with feedback signal )

---RD connect with positive

---GR connect with SW and negative wiring

--- BK connect with negative wiring

---SW open. the valve open, and keeping fully open.

 ---SW closed. the valve closed, and keeping fully closed.

----BL & GY connect with the valve’s fully open signal wiring

--- YW & WT connect with the valve’s fully closed signal wiring.

﹡Suitable Working Voltage: DC9V-35V

﹡Exceeding the working voltage is forbidden

※ Feedback with load ability：

① The Max. off voltage: DC36V AC220V

② The Max. off current: ≦0.4A
