Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Sheet & Plate > Quality Assurance Mild Steel Medium Shipbuilding Steel Plate
US$ 599 - 699
MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
Angang
Place of Origin:
Henan, China
Model Number:
Shipbuilding plate
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wear Resistant Steel Plate HBW 480-525 HBW 320-400US$ 500 - 800MOQ: 1 Ton -
Wear Resistant Steel Plate HBW 480-525US$ 500 - 800MOQ: 1 Ton
-
HBW 320-400 Wear Resistant Steel PlateUS$ 500 - 800MOQ: 1 Ton
-
Wear Resistant Steel PlateUS$ 500 - 800MOQ: 1 Ton
-
Shipbuilding Steel PlateUS$ 599 - 699MOQ: 1 Ton
Brand Name
Angang
Place of Origin
Henan, China
Model Number
Shipbuilding plate
Length
1-12m
Thickness
6-200mm, 3~300mm
Type
Steel Plate
Width
1500-3500mm
Surface Treatment
Coated
Technique
Hot Rolled
Standard
AISI, ASTM, BS, DIN, GB, JIS
Grade
AH32, DH32, EH32
Special Use
Wear Resistant Steel
Product Description

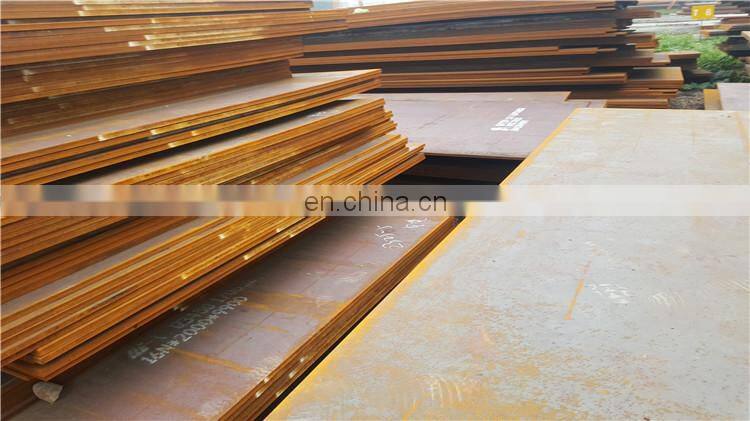

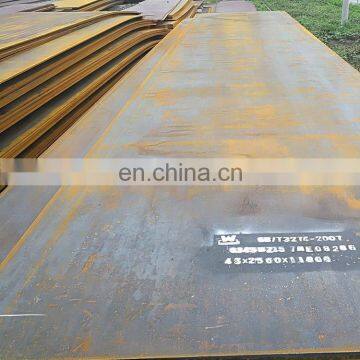

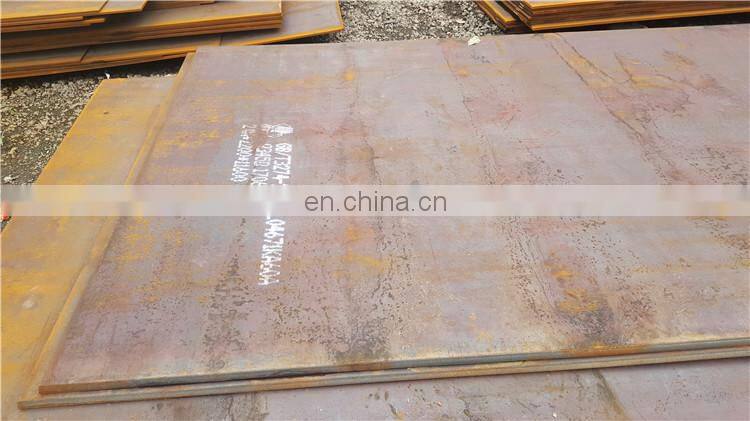

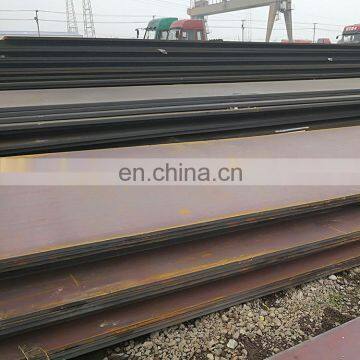

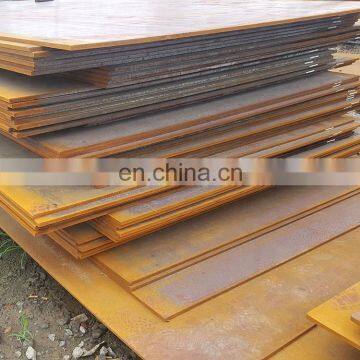

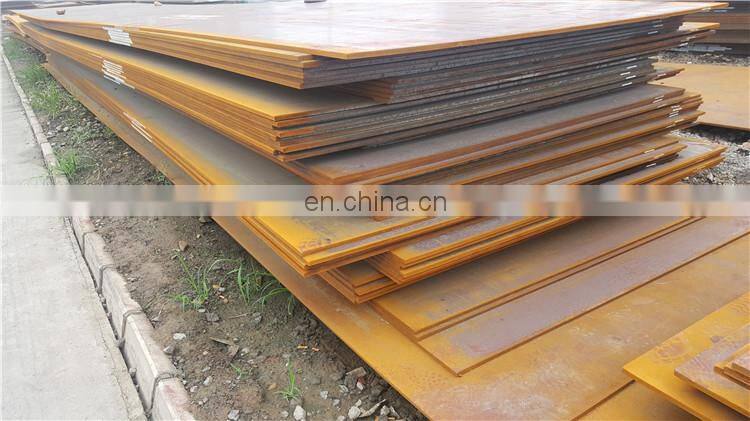

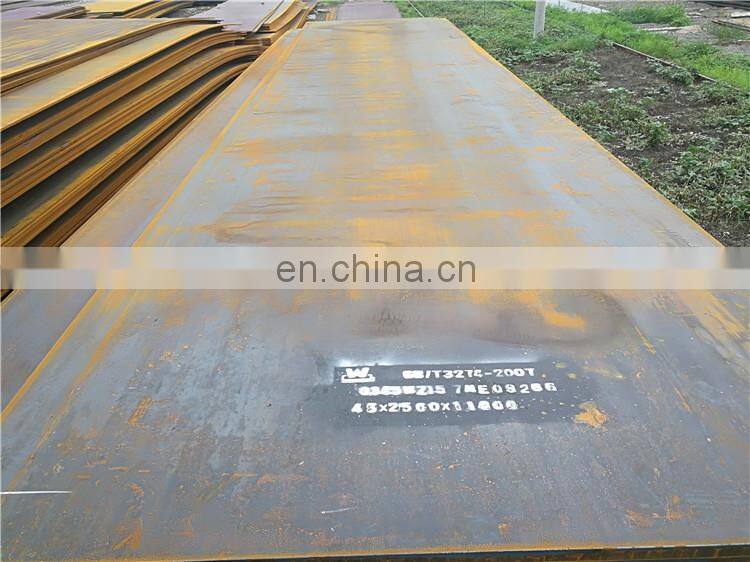

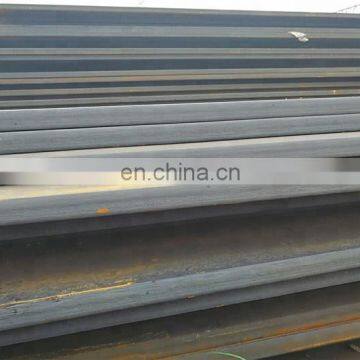

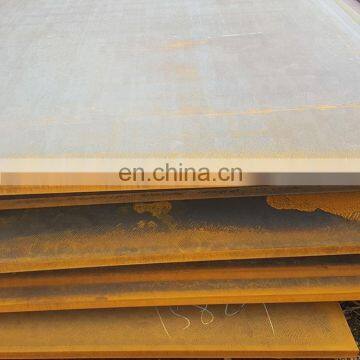

Quality Assurance Mild Steel Medium Shipbuilding Steel Plate
Available Shipbuilding Plate
| Grade | Execution standard | Thickness (mm) | Width (mm) | Condition |
| A/B(Z25-Z35) | ABS,CCS,BV ,LR,GL, KR,NK,RINA,DNV, GB712-2000( structural steel using for ships and ocean engineering) | 6-40 | 1500-4100 | AR/CR/NR/N |
| 40-60 | CR/NR/N | |||
| 60-80 | N | |||
| D(Z25-Z35) | 6-60 | CR/NR/N | ||
| 60-80 | N | |||
| E(Z25-Z35) | 8-80 | N | ||
AH32/AH36 (Z25-Z35) DH32/DH36 (Z25-Z35) | 42894 | CR/NR/N | ||
| 8-50 | CR/NR/N/TMCP | |||
| 50-60 | CR/NR/N | |||
| 60-80 | N | |||
| EH32/EH36 (Z25-Z35) | 8-50 | TMCP/N | ||
| 50-80 | N | |||
AH40/DH40/EH40 (Z25-Z35) FH32/FH36/FH40 (Z25-Z35) | 8-50 | TMCP | ||
| S355K2,S355NL | EN10025-2(unalloy structural steel) EN10025-3(welded structural steel) | 8-130 | 1500-4100 | N/NR |
Chemical composition and mechanical properties
| Type | C | Si | Mn | P | S | Als | Yield MPA | Tensile MPA | Elongation |
| ≤ | ≤ | ≤ | ≤ | ≥ | ≥ | %≥ | |||
| A | 0.21 | 0.5 | ≥2.5C | 0.035 | 0.035 | 235 | 400-520 | 22 | |
| B | 0.21 | 0.35 | 0.8-1.2 | 0.035 | 0.035 | 235 | 400-520 | 22 | |
| D | 0.21 | 0.35 | 0.6-1.2 | 0.035 | 0.035 | 0.015 | 235 | 400-520 | 22 |
| E | 0.18 | 0.35 | 0.7-1.2 | 0.035 | 0.035 | 0.015 | 235 | 400-520 | 22 |
| AH32 | 0.18 | 0.5 | 0.9-1.6 | 0.035 | 0.035 | 0.015 | 315 | 440-570 | 22 |
| DH32 | 0.18 | 0.5 | 0.9-1.6 | 0.035 | 0.035 | 0.015 | 315 | 440-570 | 22 |
| EH32 | 0.18 | 0.5 | 0.9-1.6 | 0.035 | 0.035 | 0.015 | 315 | 440-570 | 22 |
| AH36 | 0.18 | 0.5 | 0.9-1.6 | 0.035 | 0.035 | 0.015 | 355 | 490-630 | 21 |
| DH36 | 0.18 | 0.5 | 0.9-1.6 | 0.035 | 0.035 | 0.015 | 355 | 490-630 | 21 |
| EH36 | ≤0.18 | ≤0.50 | 0.9-1.6 | ≤0.035 | ≤0.035 | ≥0.015 | 355 | 490-630 | 21 |
| AH40 | ≤0.18 | ≤0.50 | 0.9-1.6 | ≤0.035 | ≤0.035 | ≤0.015 | 390 | 510-660 | 20 |
Production
Packaging & Shipping
1 ) 20ft container: 26tons (Can load 5.8M Max)
2) 40ft container: 26tons (Can load 11.8M Max)
3) more than 100tons:can pack by bulk vessel
4)as your requirement
