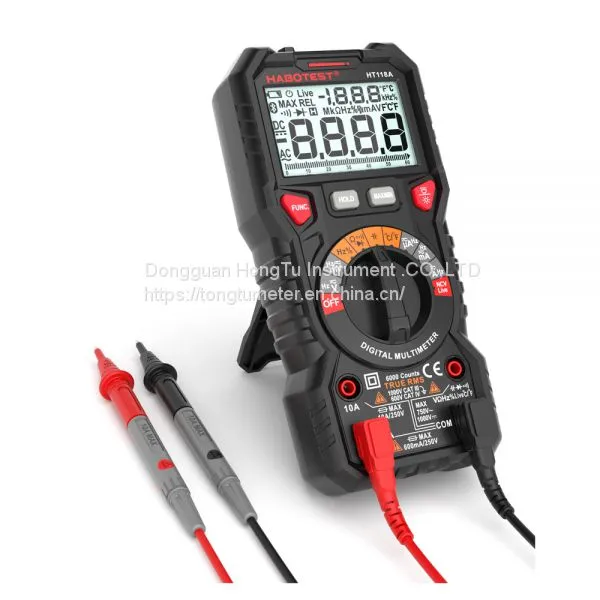

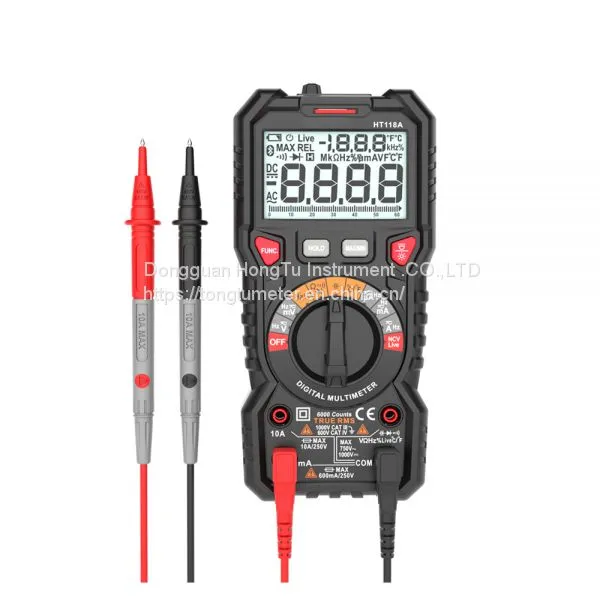

High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital

High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital thumbnail-1
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital thumbnail-2
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital thumbnail-3
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital thumbnail-4
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital photo-1
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital photo-2
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital photo-3
High-precision Digital Analog Multimeter With Led 6000 Count Measurement Multimetro Digital photo-4
US$ 13 - 14 MOQ: 40 Sets
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
China
Model Number:
HT118A
Contact Supplier Request Quote Chat Now
Dongguan HongTu Instrument .CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HOTOTECH
Place of Origin China
Model Number HT118A
Operating Temperature -40℃~1000℃
Dimensions 188mm*88mm*58mm
Measuring Capacitance Range 10nF TO 10mF
Measuring Resistance Range 600Ω TO 60MΩ
Measuring Voltage Range 6V/60V/600V/1000V
Measuring Current Range 600uA/6000uA/60mA/600mA
HT-118A
6000 Counts Digital Multimeter WIth T-RMS/Autorange


Product Description
product feature

-resistance measure up to 60mΩ with continuity detection
-large dual backlight diaplay with 6000 counts
-voltege measurement
-up to 10MHz frequency detection
-Auto power of
-low battery indication
-double color backlight
-the data hold


Specifications

Specifications
Range
Accuracy
HT118A
DC Voltage
600mV
±(0.5%+3)
6V/60V/600V/1000V
±(0.5%+3)
AC Voltage
600mV
±(1.0%+5)
6V/60V/600V/750V
±(1.0%+5)
DC Current
600uA/6000uA/60mA/600mA
±(0.8%+3)
6A/10A
±(1.2%+3)
AC Current
600uA/6000uA/60mA/600mA
±(1.0%+3)
6A/10A
±(1.5%+3)
Capacitance
10nF/100nF/1uF/10uF/100uF/1mF/10mF
±(4.0%+3)
100mF
±(5.0%+5)
Resistance
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
±(0.8%+3)
Frequency
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
±(1.0%+3)
Duty
1%~99%
±(1.0%+2)
Display
LCD dual display
Temperature(℃/℉)
-40℃~1000℉
±(1.0%+3)
-40℃~1832℉
±(1.0%+3)
Counts
6000 Counts
Auto/Manual range
Auto
Detailed Images

--Automatic shutdown
--intelligent full automatic range
--small and Protable
--easy to use


--Resistance and continuity
--True rms measurement
--easy to get started
--Household

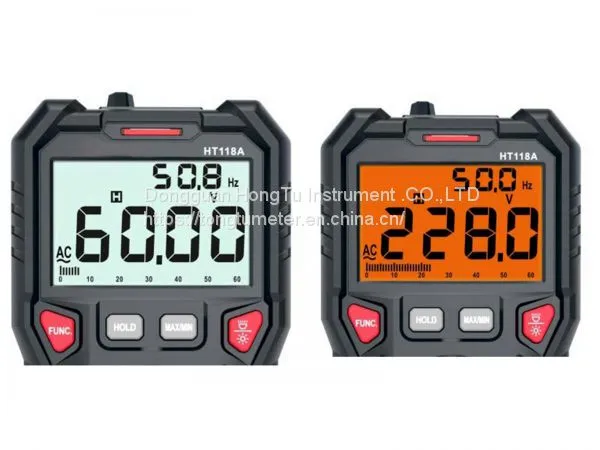

Backlight LCD Display


Double color backlight


General
Power supply:2xAA batteries
Product size:188mm*88mm*58mm
Product weight:Approx.350g
Safety rating:EN61010-1,-2-030
                     EN61010-2-033
                     EN61326-1
                     CATIII 1000V
                     CATlV 600V


Packing & Delivery
CARTON package

We are very nice service to satisfy your shopping experienc


We have professional and sturdy packaging to get more perfect products.

Our Company

Dongguan HongTu Instrument information ,specializes in developiong and producing helmet impact testing machine and some testing machine ,electrical instrument .

visit customers

Our customers come to our company not far away, talk, visit and try products.
Very happy.

Exhibition

we attended the exhibition in Guangzhou and Shanghai.

FAQ
-Do we support OEM or ODM?
-Do we have a cheap price?
-Are our products high quality products?
-Do we have a good team?
-Does our product support global after-sales service?
-Are our products certified?

every answer is "YES"


Product Tags: Multimeter Digital-Multimeter , Digital analog multimeter , multimetro digital , analog multimeter , mini digital multimeter , pocket Multimeter
