Commercial automatic fruit juicer machine orange / Industrial professional juice extractor

Standard Export Wood Pack Machinery

About the use and scope of application

The crusher juicer fruit and vegetable juicer is suitable for a variety of fresh fruit and vegetable beating separation. Products such as orange meat, grapes, kiwi, mulberry, bayberry, peach (nuclear), etc. can be used to achieve jam juice, separate the core, fruit seeds and thin skin, and also can cut vegetables (cut) Tomato, pepper, celery (cut) and other vegetable juices are obtained, and vegetable gluten is separated. It is an ideal machine for making jam, juice and vegetable juice, and is an important equipment for food processing enterprises.

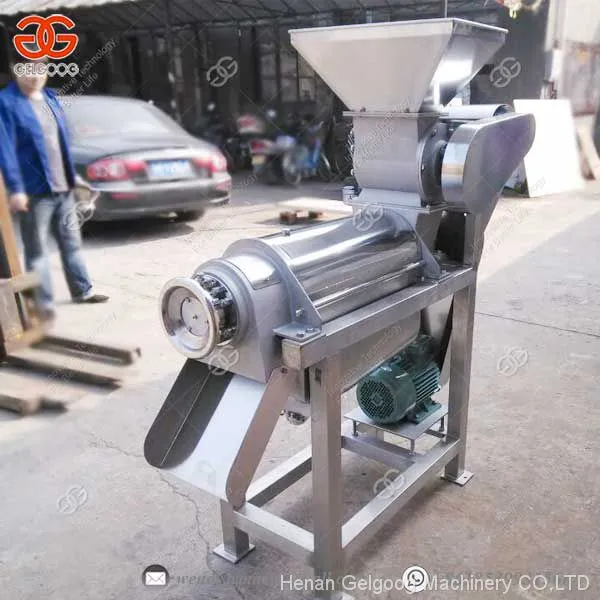

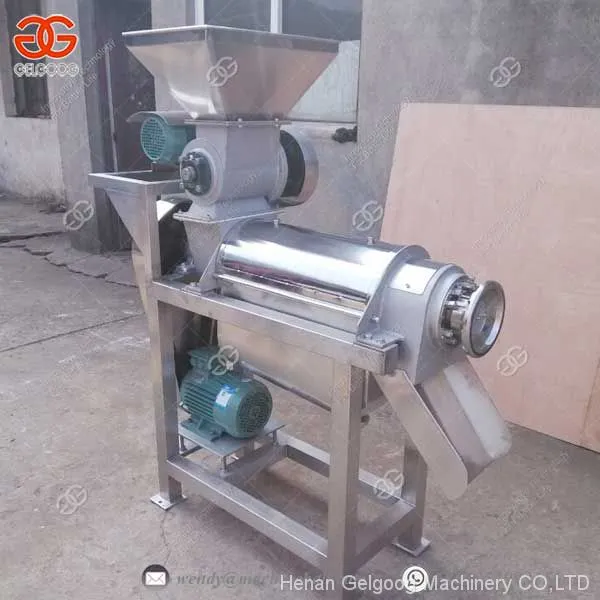

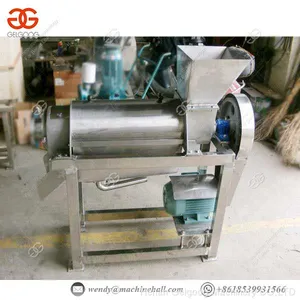

The motor drives the spindle to rotate through a pair of pulleys. The tripod is mounted on the spindle. The beater plate is on the tripod. The screen, funnel and slag are mounted on the lower bracket. The upper inner tube and the feeding hopper are loaded on the bracket, and the entire upper bracket is hingedly connected, and can be opened to check the quality of the pulp.

All the places in contact with the materials are made of stainless steel and high-quality edible rubber, which has good corrosion resistance, no pollutants and food hygiene. This machine can change the different beating speeds and obtain satisfactory results by changing the screen size of different specifications and adjusting the lead angle of the scraper. The machine has the advantages of simple operation, convenient cleaning, safety and hygiene, continuous feeding, wide application range, etc. It is an ideal equipment for fruit and vegetable processing.

About handling, installation and commissioning

1. The equipment should not be subjected to shock or severe vibration when it is shipped;

2. When the beater is installed, it is recommended to fix it with the anchor bolt. When the ground quality is good, it can be fixed with the expansion screw;

3. After the installation is completed, it is necessary to remove the dirt inside the machine and check that the spindle rotates flexibly and there is no jamming phenomenon;

4. The bearing housing is filled with suitable oil for lubrication of the bearing, and each shift is afterwards; (Note: The oil in the bearing housing must be replaced frequently! Operation steps: first open the oil drain hole at the bottom of the bearing housing, drain the dirty oil Then, inject oil from the upper part of the bearing housing.) 5. After the power is turned on, the motor must be emptied to check the steering of the motor to ensure that the steering of the motor is consistent with the steering mark of the machine.

About maintenance, use and maintenance

1. Before starting the feeding, the standby device should be put into operation normally, and the feeding should be uniform; 2. If abnormal noise and vibration are found during work, it should be stopped and checked before being used;

3. When the machine needs to be cleaned, the front cover can be opened, the right-handed tensioning screw can be removed, and the main shaft part can be removed;

4. If it should not be cleaned for a long time, remove the accumulated water and store it in a dry and ventilated room.
