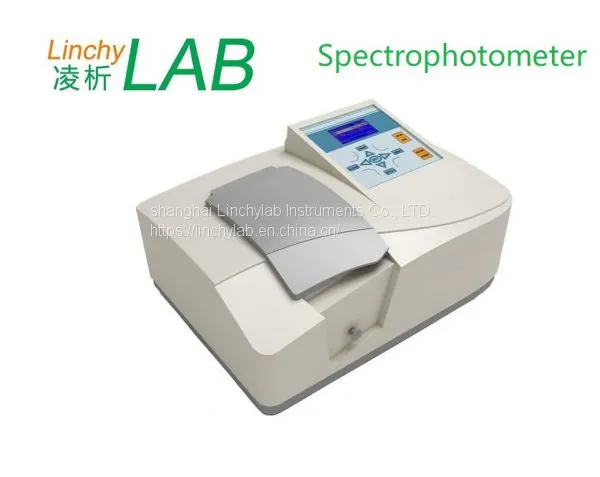

UV/VIS Spectrophotometer
3100 series are designed as a general purpose spectrophotometers for budget focused labs and education. Great price yet packed with features and Quality! Small in size, auto setting wavelength, setting up standard curves, quantitative measurement.
Highlights
1. Good operation interface
Auto ZERO and blanking, auto setting wavelength, auto calibrating black and wavelength, auto switching lamps and filters.
2. Easy to change languages
Switching English and Chinese version in main menu.
3. Various optional accessories
Sample chamber can use 5-100mm cuvette.
4. Imported key component
Imported deuterium and tungsten lamp avoid to optical adjustment after replacing lamps. Low stray light and better photometric accuracy.
Functions
1. Abs, Transmittance, Energy
2. Factor, standard curve, concentration
Optional software functions
1. Wavelength scanning, kinetics, DNA/protein measurement
2. Multi-wavelength measurement, data processing, report printing, etc.
Specifications
Model |
V-3100 |
UV-3100 |
Wavelength Range |
320 ~1100nm |
190~1100nm |
Spectral Bandwidth |
4nm |
|
Optical System |
Single Beam, Grating 1200lines/mm |
|
Wavelength Accuracy |
±0.8nm |
|
Wavelength Repeatability |
≤0.2nm |
|
Photometric Range |
0~200%T, -0.3~3A, 0~9999C, 0~9999F |
|
Photometric Accuracy |
±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T) |
|
Photometric Repeatability |
≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) |
|
Stray Light |
≤0.1%T (@220 Nal,360nm NaNO2) |
|
Stability |
≤0.002A/h (500nm,0A) |
|
Noise |
±0.2%T(0%T)；±0.5%T(100%T)；±0.001A (@500nm) |
|
Baseline Flatness |
±0.003A |
|
Detector |
Silicon Photodiode |
|
Display |
3-inches 128*64dots LCD |
|
Output |
USB2.0 RS-232 |
|
Power Requirements |
AC90-250V, 50/60Hz |
|
Dimension |
430*320*195mm |
|
Weight |
10kg |
12kg |
