Brand Name Yunyi
Place of Origin China
Model Number YR31

Description nitrogen pressure regulator



YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

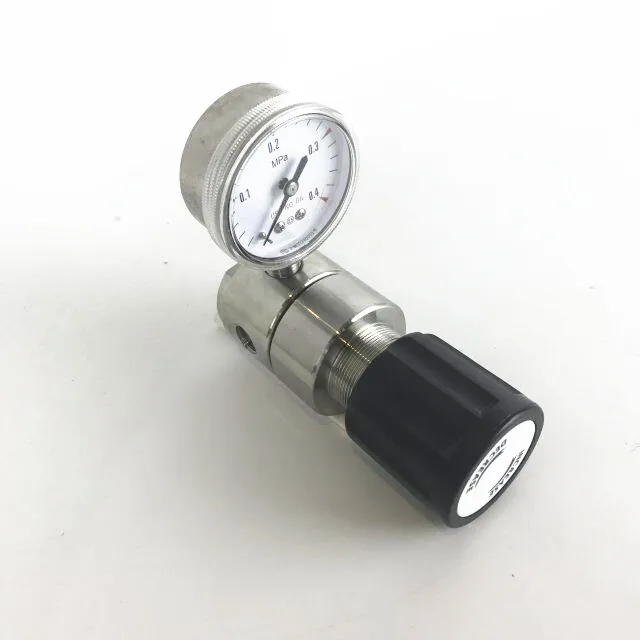

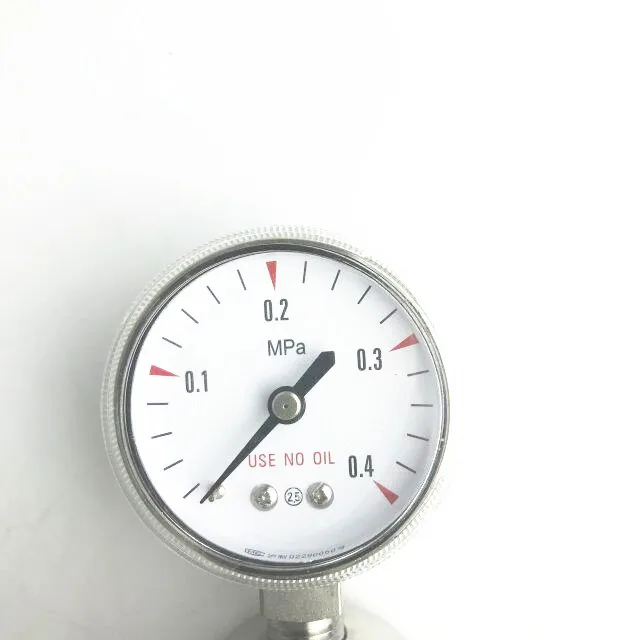

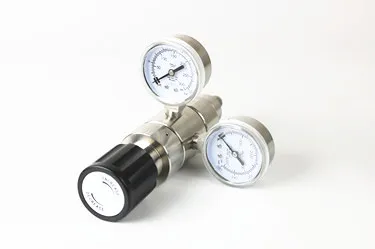

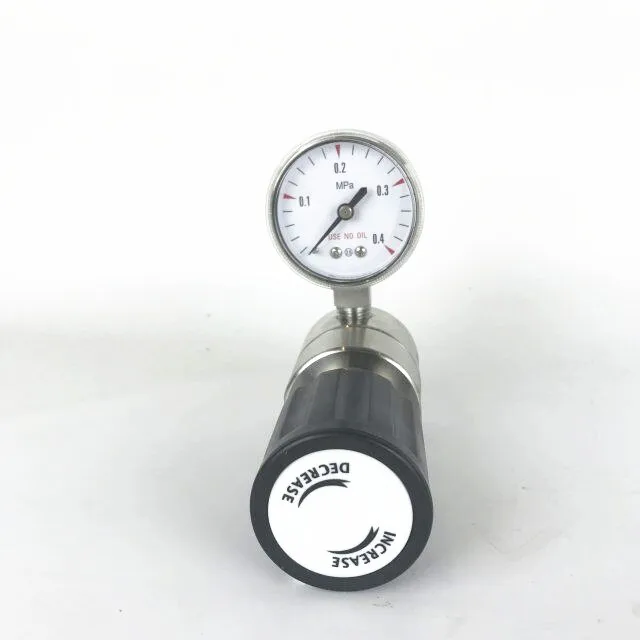

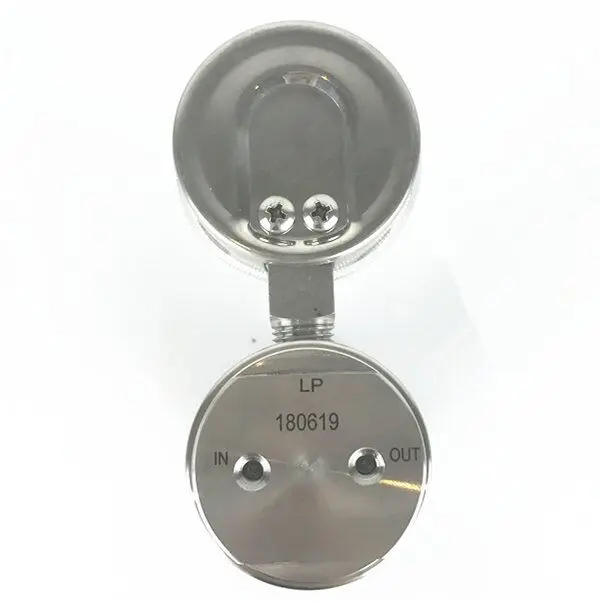

Detailed Images nitrogen pressure regulator



adjustable oxygen pressure regulator with gaugeadjustable oxygen pressure regulator with gaugeadjustable oxygen pressure regulator with gaugeadjustable oxygen pressure regulator with gauge



 adjustable oxygen pressure regulator with gauge

Specification nitrogen pressure regulator



Material316 stainless steel
Max inlet pressure6000psi(413.7bar)
Outlet pressure range0 to 2500psi(172.4bar)
Discharge coefficient(Cv)0.025  0.06(standard) 0.2  0.5
Weight1.55kg
Max using temperature

℃(℉):Teflon:66(150) PCTFE:80(175) PEEK:

   260 (500).

Max inlet pressurepsi(bar ):Teflon:3600(248.2)  PCTFE:6000(413.7) PEEK:3  600(248.2).



Features nitrogen pressure regulator



1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.

2. The design of piston structure is compact.

3. Proper material adopts 316L stainless steel.

4. Installed with plate can be chosen.

5. Can be equipped with 20um filter at the entrance.

6.Pls make sure the using temperature, pressure,medium before choosing the product.

7. All of the 316L stainless steel meets the ASTM standard.

8.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.



Applications nitrogen pressure regulator



Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment



Selection Guide nitrogen pressure regulator



Model

Valve material

Inlet pressure

Outlet pressure

Pressure gauge

Inlet port

Outlet port

YR31

l 316L

0-6000psig

0-3000psig

0-1500psig

0-1000psig

0-4000 psig

0-2000 psig

0-1000 psig

0- 500 psig

l With gauge (mpa)

l With gauge (psig)

l Without gauge

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom
