high pressure calibrator
Description high pressure calibrator
Pressure gauge calibration also known as a pressure gauge calibration pump,The pressure gauge calibrator is movement of the piston rod pressure increases,So as to achieve the aim of compression.
Pressure gauge calibration device is used for testing the pressure source of general pressure gauge, pressure test can reach 60 MPA, inspection vacuum degree can reach -0.08 MPA.
In laboratory or measuring room generally fit precision pressure gauge (high precision can reach 0.25 magnitude) to detect the ordinary pressure gauge (precision is 1.6 or 2.5).

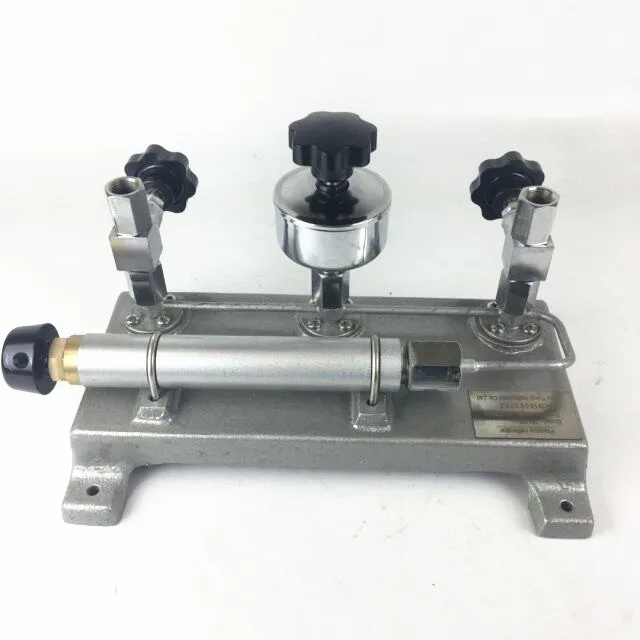

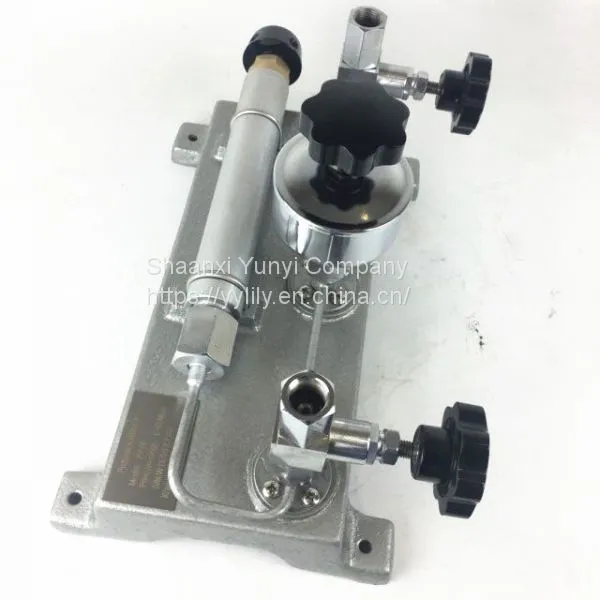

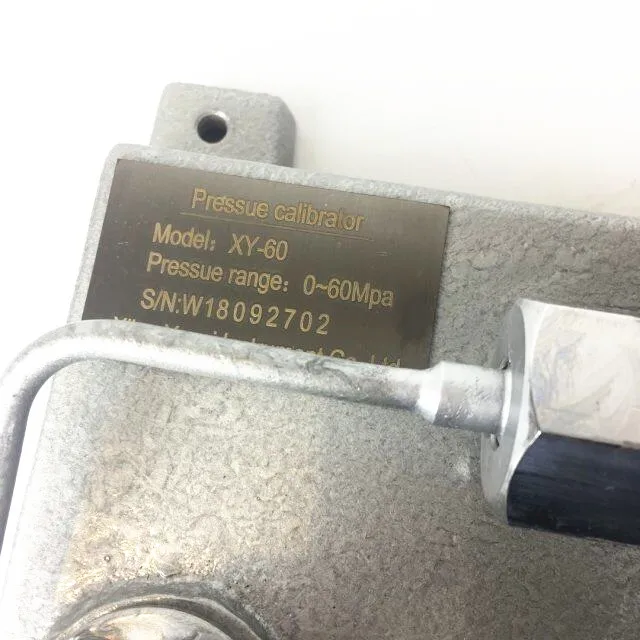

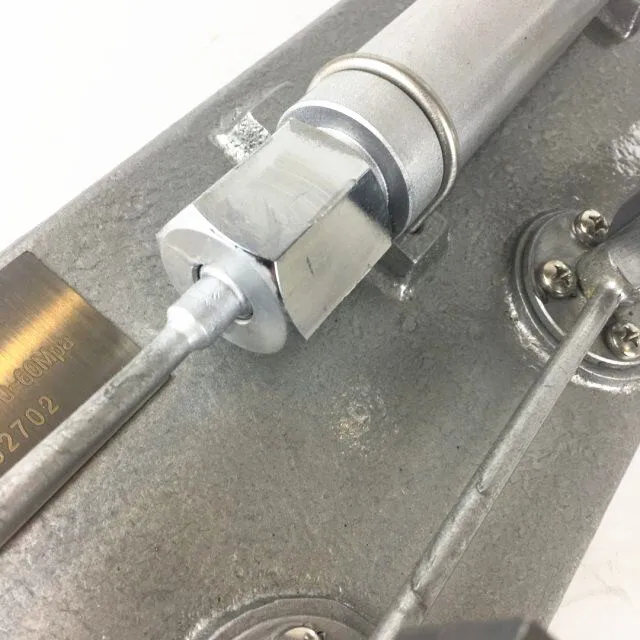

Detailed Images high pressure calibrator
Specification high pressure calibrator
model number |
range |
medium |
XY-6 |
-0.082-6MPa |
Transformer oil |
XY-60 |
0-60MPa |
Medicinal castor oil |
XY-80 |
0-80MPa |
Medicinal castor oil |
range |
0~6Mpa |
0~60Mpa |
vacuum |
-0.088~0 Mpa |
----- |
connector |
M20×1.5(M14×1.5) |
M20×1.5(M14×1.5) |
The minimum adjustable range: 0.1Mpa
Volume: 350 * 230 * 180mm
Weight: 15kg
Features high pressure calibrator
1. Max pressure range is 80mpa
2. Working medium is oil
3. Factory price
4. Fast delivery
Applications high pressure calibrator
Pressure gauge calibration device is used for testing the pressure source of general pressure gauge,Used in laboratory, industrial pressure calibration
Selection Guide high pressure calibrator
1. What's pressure range do you need?
2. What's thread connection type do you need?
3. What's qty do you need?
