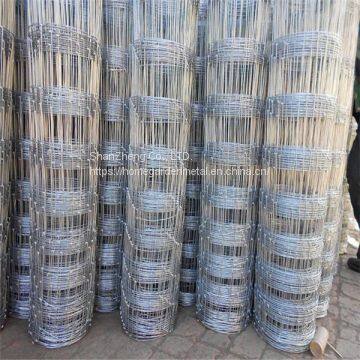

Cattle fence
Cattle fence ( field fence, farm fence)

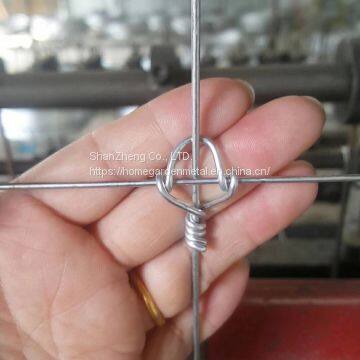

Cattle fence has four wrap hinge joint, in which two vertical stay wires wrap together to from hinged joint.
This knot acts as a hinge that gives under pressure, then springs back into shape.
This provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks.
Vertical wires are individually cut and wrapped for maximum strength and flexibility.
Hinge joint fence is always called farm fencing.
Material |
Hot dipped galvanized steel wire |
Middle Wire Diameter |
1.6/1.8/2.0/2.5mm |
Top and bottom Wire Diameter |
2.0/2.5/3.0mm |
Field Fence Height And Length |
Height:1.05m to 2.40m Length: 50m/100m/150m |
Field Fence Feature |
1. Hot dipped galvanized, strong corrosion resistance 2. High utility value 3. High tensile strength 4. Long life 5. Easy installation 6. Easy for transport 7. Good ventilation |
Field Fence application |
Animals Field (like deer, horses, cattle, goat), Farmland, lawns and gardens |
Light duty fence |
Middle duty fence |
Heavy duty fence |
Extra heavy duty fence |
|
Wire diameter(mm) |
Wire diameter(mm) |
Wire diameter(mm) |
Wire diameter(mm) |
|
Top and bottom wire diameter |
2.0 |
2.5 |
3.0 |
3.7 |
Other horizontal wires and vertical wires |
1.6 |
2.0 |
2.5 |
3.0 |
Hinge joint field fence types |
Fence height(mm) |
Horizontal wires number |
Distance between the vertical wires(mm) |
Mesh opening number-mesh height(mm) |
Roll length(m) |
1050/13/15 |
1050
|
13 |
150 |
6-75,6-100 |
50,100,150 |
1250/15/15 |
1250
|
15 |
150 |
6-75,8-100 |
50,100,150 |
1550/18/15 |
1550
|
18 |
150 |
6-75,11-100 |
50,100,150 |
1550/15/15 |
1550
|
15 |
150 |
11-100,3-150 |
50,100,150 |
1850/20/15 |
1850
|
20 |
150 |
6-75,11-100,2-150 |
50,100,150 |
1850/16/15 |
1850
|
16 |
150 |
10-100,3-150,2-200 |
50,100,150 |
1950/17/15 |
1950
|
17 |
150 |
11-100,3-150,2-200 |
50,100,150 |
2000/21/15 |
2000
|
21 |
150 |
6-75,11-100,3-150 |
50,100,150 |
2400/23/15 |
2400
|
23 |
150 |
6-75,11-100,3-150,2-200 |
50,100,150 |
Packaging:
Each roll packed with plastic film then bluk into container
Each roll packaed with plastic film with pallet
As per customers requirements.
