Model: CHD1200

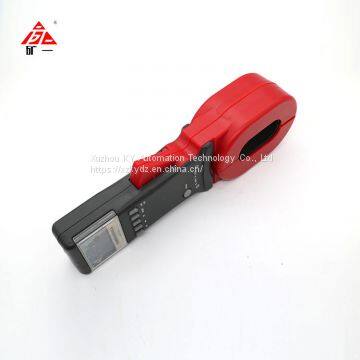

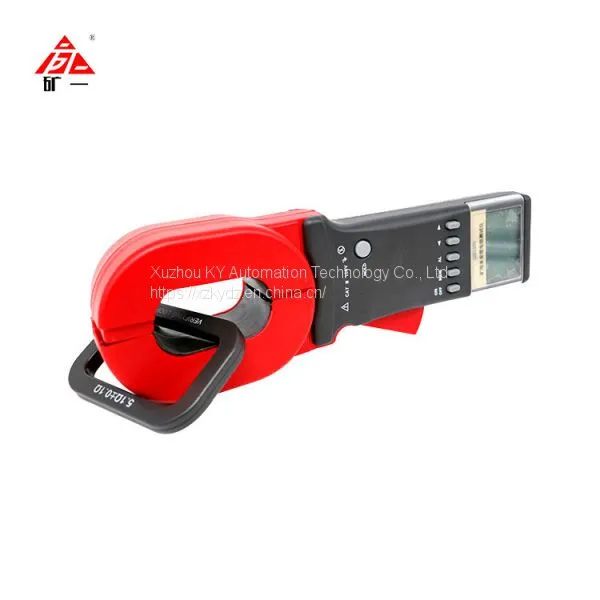

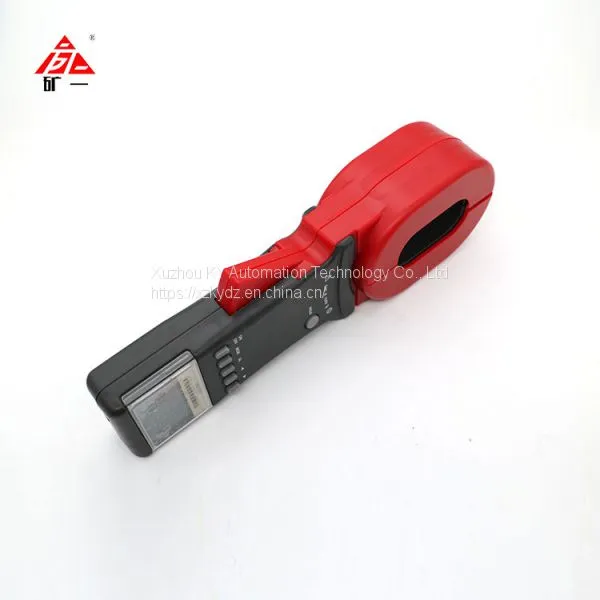

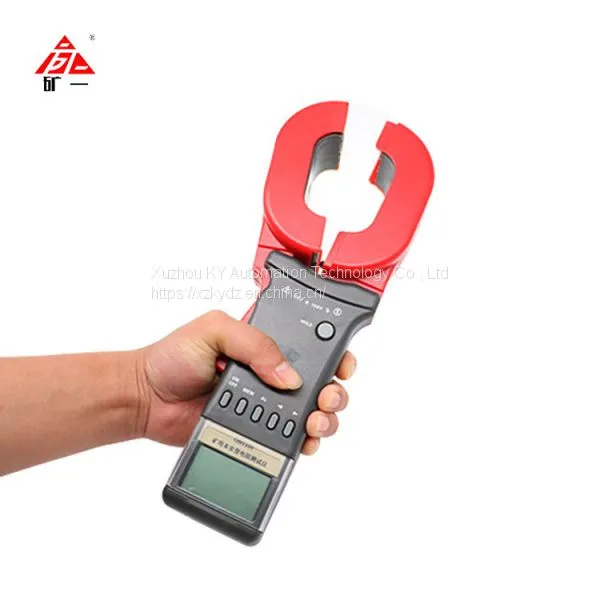

Description: CHD1200 Mining Intrinsic Safe Resistance Test Instrument
MA number: MFA150190 (National safety sign for coal mining products).
KA number: KFA150020 (National safety sign for mining products).
ExibI: 320150858 (Intrinsic safe and explosion-proof products certificate)
ExiaII: CMExC17.4383
Patent No. ZL 2015 2 0977177.7
Introduction:
1. Applicable for grounding resistance and circuit resistance measurement in mining, industrial park, electricity, telecom, meteorological, oilfield, architecture and industrial motor equipment fields.
2. It can do measurement directly and no need to disconnect grounding wire or prepare auxiliary electrode.
3. Applicable for the combustible and explosive gas place.
4. Measured value is the comprehensive value of grounding body resistance and grounding wire resistance.
Technology parameters:
1. Measuring range, resolution and intrinsic error.
Measuring range |
Resolution |
Intrinsic error |
0.1Ω～49.9Ω |
0.1Ω |
± (truth-value×1%+0.1Ω) |
50.0Ω～99.5Ω |
0.5Ω |
± (truth-value×1.5%+0.5Ω) |
100Ω～199Ω |
1Ω |
± (truth-value×2%+1Ω) |
200Ω～395Ω |
5Ω |
± (truth-value×5%+5Ω) |
400Ω～590Ω |
10Ω |
± (truth-value×10%+10Ω) |
600Ω～1200Ω |
20Ω |
± (truth-value×20%+20Ω) |
2. Resistance range: 0.01~1200Ω
3. Resistance resolution: 0.001Ω
4. Data storage: 99 sets
5. Sound-light alarm: yes. “AL” button to open or shut up.
6. Alarm critical value range: 1-199Ω
7. Power: 6V DC, alkaline dry cell
8. Working temperature and humidity: -20℃ to 55℃,10%RH to 90%RH.
9. LCD display size: 47mm×28.5mm
10. Jaw size: long jaw 65mm×32mm; circular jaw Φ32mm.
11. Jaw expanding size: long jaw 35mm; circular jaw 32mm.
12. Weight: long jaw 1160g; circular jaw 1120g (Battery included)
13. Dimension: long jaw: 285mm×85mm×56mm (L×W×H);
Circular jaw: 260mm×90mm×66mm (L×W×H).
14. Explosion-proof sign: Exia II BT3 Ga
15. Degree of protection: double insulation
16. External magnetic field
17. Single measurement time: 0.5s
18. Measuring frequency of resistance: >1 KHz.
