Help Center160A Copper Conductor Busbar With Current Collector
Related Products
-
250A Copper Busbar for Overhead Crane Hoist Power RailUS$ 12.69 - 36.69MOQ: 10 Pieces -
400A Copper Crane Parts Conductor Rail With CollectorUS$ 12.69 - 36.69MOQ: 10 Pieces
-
160A Aluminum Busbar of Conductor Bars SafetyUS$ 9.8 - 13.26MOQ: 10 Pieces
-
200A Safe Conductor Rail Shrould BusbarUS$ 9.8 - 13.26MOQ: 10 Pieces
-
250A Insulated Conductor Rails for Overhead CraneUS$ 3.69 - 18.69MOQ: 10 Pieces

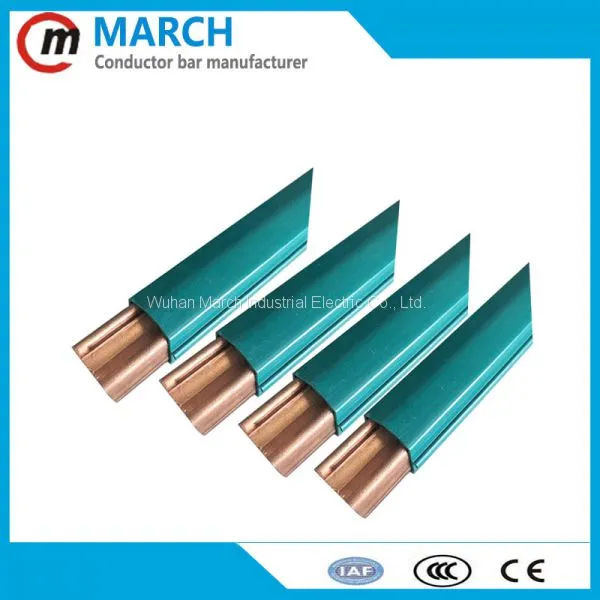

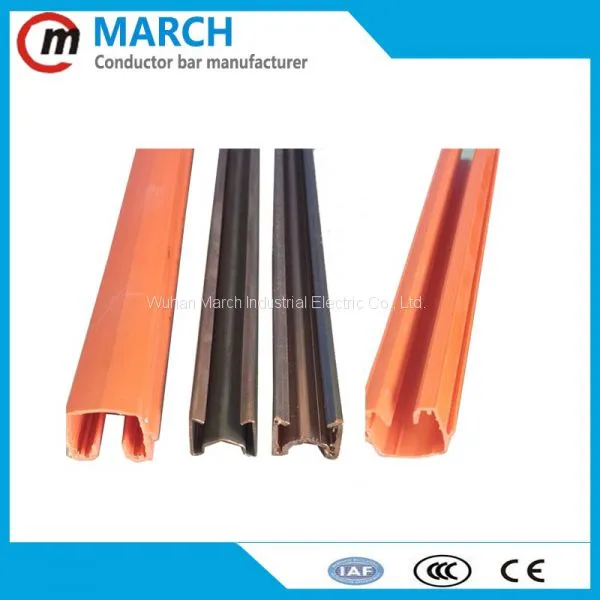

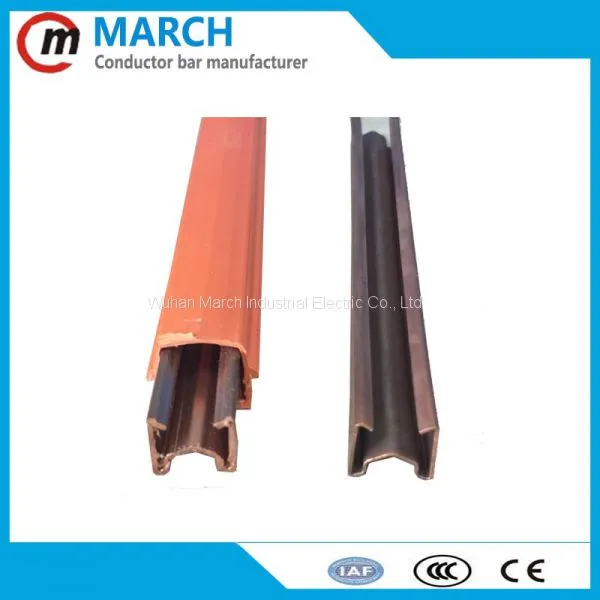

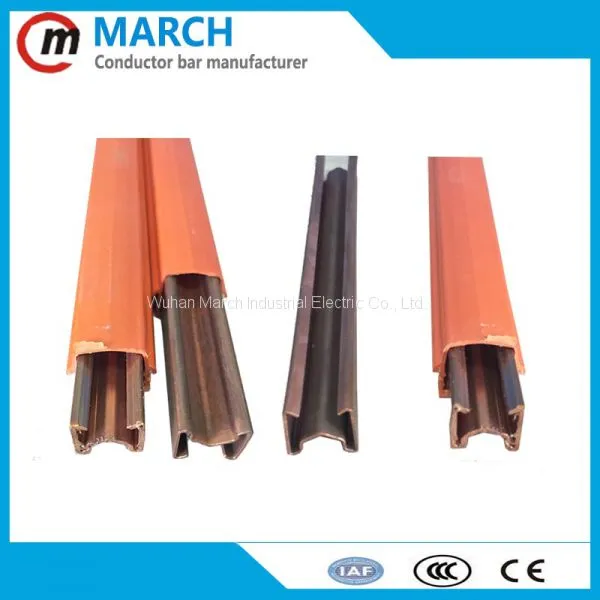

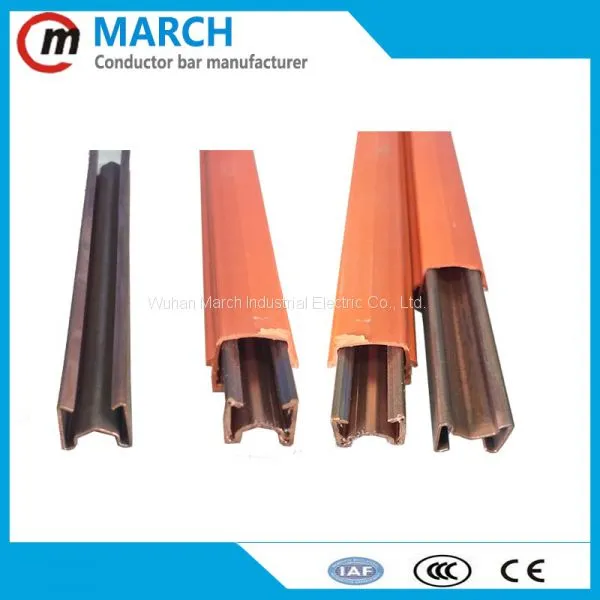

PVC housing insulated copper conductor bus bar
copper bars
Model |
Rated Current (A) |
Sectional Area |
Max Voltage |
Full Load Permissible Temperature |
Weight (KG) |
Part No. |
|||
AC/V |
DC/V |
Standard Phase Cover |
Standard Ground Cover |
Medium Heat Cover |
|||||
MCCBII-160A-CU |
160 |
50 |
550 |
700 |
25℃ |
2.89 |
22001 |
22002 |
22003 |
MCCBII-250A-CU |
250 |
63 |
550 |
700 |
25℃ |
3.21 |
22011 |
22012 |
22013 |
MCCBII-400A-CU |
400 |
83 |
550 |
700 |
25℃ |
4.63 |
22021 |
22022 |
22023 |
Stand Length : 4.5 m
Application environment : Suitable for use in the open air and the sea environment , offen use , avoid the growth of the oxide and verdigris
Features:
1.Quick and Easy Assembly
2.Excellent Ellectrial Conductivity
3.CAD/CAM designed for Stable Quality
Applications:
1.Overhead Cranes,Monorails
2.Automated Storage and Retrieval Systems
Descriptions:
1.Expansion Sections not Required for Runs Less than 150m.
2.Minimum Bending Radius(Horizontal Only):1.5m.
3.Permissible Ambient Temperature:-34°C ~85°C(Standard Cover),-80°C ~125°C(Medium Heat Cover)
4.The main part of the Insulated Conductor System is conductor bars.You also need the following components to make up standard conductor bar systems:
Joints; Joint Covers; Hanger Clamps; Brackets; Power Feeds; End Covers; Current Collectors; Expansion Sections,etc.
50A-500A Insulated conductor busbar Current collector
| Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
| 50 | 1 | - | - | - | 0.4 | Copper/Graphite |
| 100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
| 200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
| 250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
| 500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact area : 360mm2 &1088 mm2
Shoe Pressure :0.007 k/mm2
Allowed Wearing : 5mm & 8mm
Max Speed: 200 m/min
Spring Load Weight :2.5KG & 8KG
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 Working days after confirm the order
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
