High Standard Cold Rolled Seamless Hydraulic Steel Pipe
- T/T Credit Card
You May Like
-
ASTM A106 Gr..b Seamless Cylinder Using Cold Rolled Steel Tube
-
Hydraulic Cylinder Precision BKS Cold Rolled Seamless Steel Pipe
-
Wholesale Price Cylinder Using Seamless Steel Hydraulic Cylinder Pipe
-
Cold Drawn Seamless Steel Din2391 St52 Tube for Hydraulic Cylinder
-
Wholesale Price Cylinder Using Precision Seamless Steel Pipe
-
Wholesale Price Cylinder Using Cold Rolled Seamless Tube
Product Details
| Place of Origin | Shandong, China | |||
| Thickness | 3, 30 | Application | Hydraulic Pipe | |
| Technique | Cold Drawn | |||
| Alloy Or Not | Non-alloy | |||
| Secondary Or Not | Non-secondary | |||
| Section Shape | Round |
Product Description

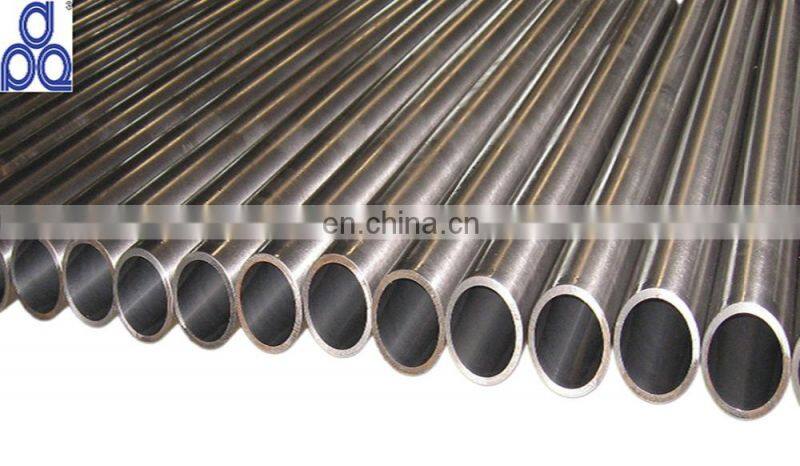

Competitive price cold rolled seamless gas cylinder pipe
Yantai Xinpeng Steel Pipe Co,.Ltd. is one of the best suppliers of the precision tube and hydraulic cylinder tube in North of China. Since 2002 cold drawn machine set importing, Xinpeng become a big precision steel pipe manufacturer with 500Mt month productivity in the next 12 years.
Products widely used in the hydraulic cylinder of the heavy machinery, Cranes, excavator, forklifts and the Petrol industry.
product description
Product Item | AISI 1020 precision seamless steel cold drawn rolled tube |
Outer Diameter | 30mm~250mm |
Wall Thickness | 2mm~30mm |
Material Grade | 10#-45#, 16Mn, Q195-Q345, ST35-ST52, STB35-STB42, 20#, 45#, 16Mn, Q345, ST35, St45, St52, St52.4, STB42, 16Mn,St52,10#-45#,ST35-ST52 |
Standard | ASTM, DIN, ASTM A1020-2002, DIN 2391 |
Application | Hydraulic Pipe, Hydraulic cylinder, automobile, oil drilling, textile machinery |
Certificate | ISO9001:2015 |
Process Method | Cold Drawn/ Cold Rolled |
Surface Finish | Annealed, Pickled |
Package | According to the customer’s requirement |
Delivery Time | 10days more or according to the customer’s requirement |
Price Item | FOB CIF EXW |
Payment | T/T(30% in advance, 70% against the BL Copy) and L/C at sight or as negotiation |
ID tolerance | H8,H9b H10 or as customized |
Surface roughness | Ra0.2~0.8µm |
Finally supply condition | BK BKS BKW NBK GBK |
ID size | ID deviation (mm) | |||
H7 | H8 | H9 | H10 | |
30 | +0.021 0 | +0.033 0 | +0.052 0 | +0.084 0 |
>30~50 | +0.025 0 | +0.039 0 | +0.062 0 | +0.100 0 |
>50~80 | +0.030 0 | +0.046 0 | +0.074 0 | +0.120 0 |
>80~120 | +0.035 0 | +0.054 0 | +0.087 0 | +0.140 0 |
>120~180 | +0.040 0
| +0.063 0 | +0.100 0 | +0.160 0 |
>180~250 | +0.046 0 | +0.072 0 | +0.115 0 | +0.185 0 |
>250~315 | +0.052 0 | +0.081 0 | +0.130 0 | +0.210 0 |
>315~400 | +0.0527 0 | +0.089 0 | +0.140 0 | +0.230 |

Our Certificate

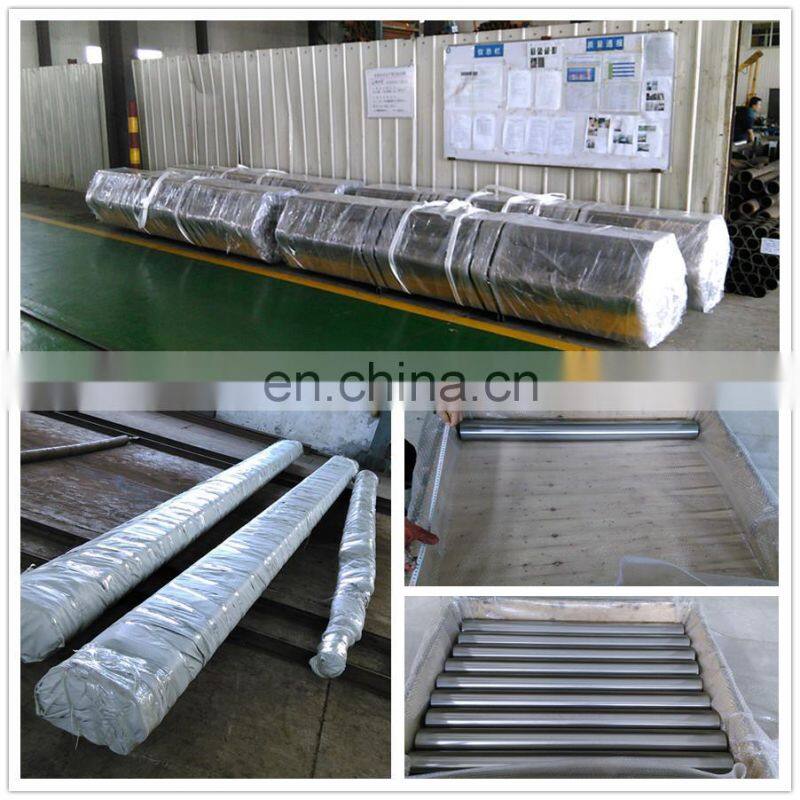

Packaging and delivery
(1)Delivery time: In 20 days or according to client's requires
(2)Trade terms: EXW/FOB/CIF etc
(3)Payments: T/T or L/C or according to client's requires
(4)Port: Yantai or Qingdao
(5)MOQ: 5 metric tons or at customer's demands
(6)Packing: we usually bundle with steel strips ,branding parcel or wooden box outside ,or according to the customer’s acquirement

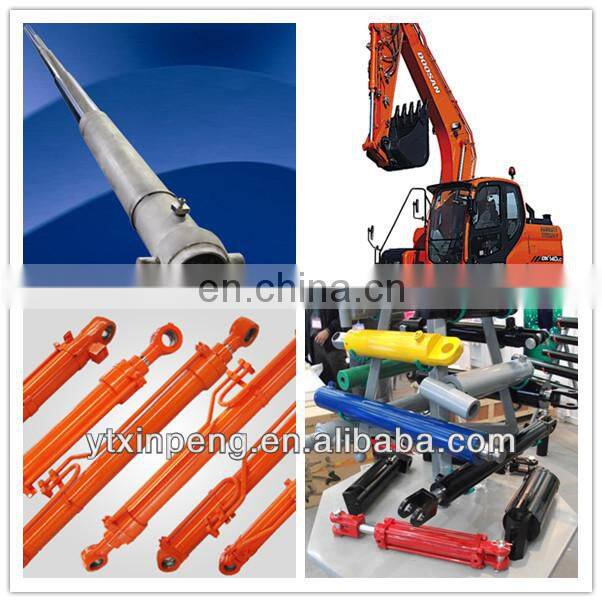

Application
widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestry machinery, etc.

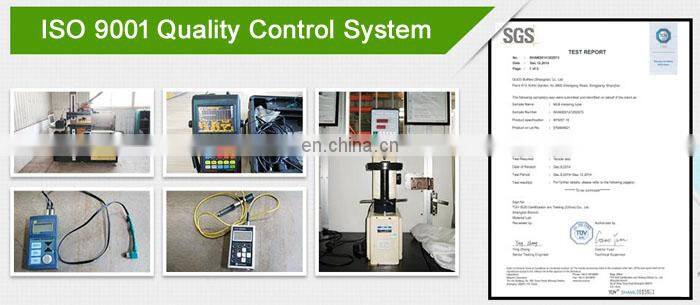

About our testing
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
2.100% Dimension & Visual Examination |
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
6.Straightness Test (optional) |
7.Roughness Test (optional) |
8.Intergranular Corrosion Test(optional) |
9.Impact Test (optional) |
10.Grain Size Determinations (optional) |
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
FAQ
1.Are you a trading company or manufacturer?
Yes, we are the professional manufacturer of precision seamless steel pipe since the year 1992.
2. How can I get the price?
We usually quote within 24 hours after we get your inquiry by telling us the material, out diameter,
wall thickness length, quantity and application of the steel pipe which you need. If you are very urgent
to get the price, please inform us in email so that we will regard your inquiry priority.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. we will provide you
the sample for free, however we could only make sure the same material, the dimension will be
much similar as your request but not same. And customer should afford the charge of shipment.
4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
5. What is your terms of delivery?
We accept FOB CIF EXW CFR.
