KFP-50 Foam Concrete Machine

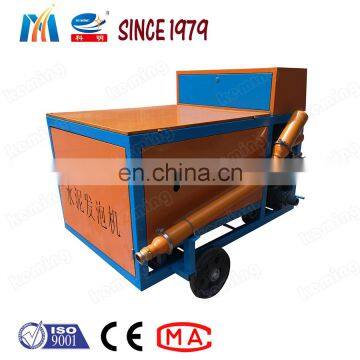

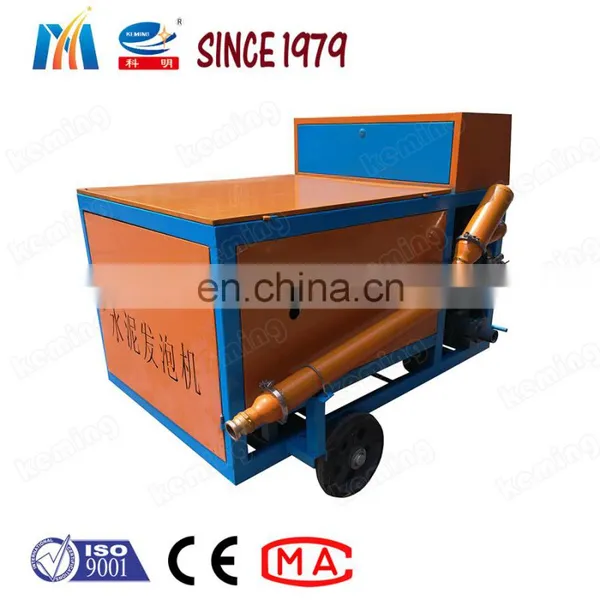

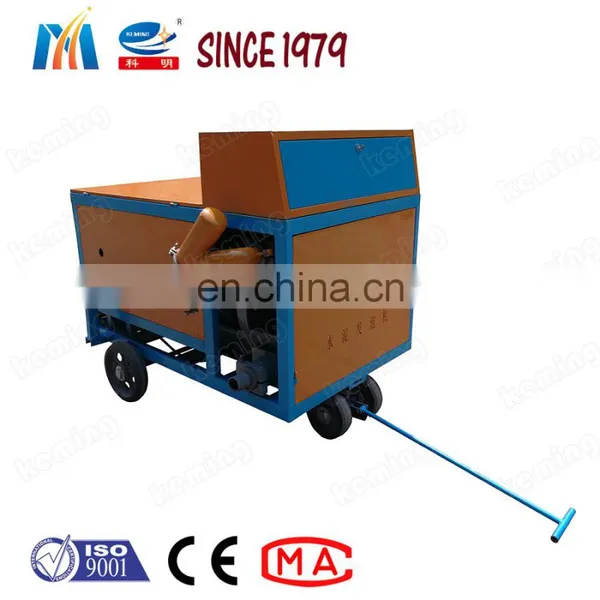

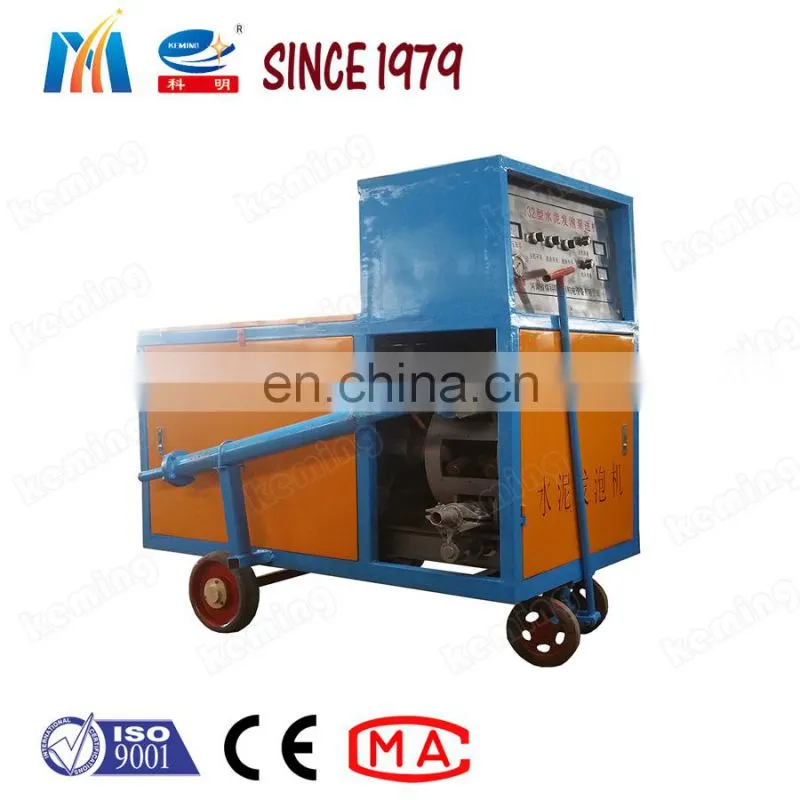

Concrete Foam Generator Cellular Lightweight Concrete Pump
Features:
1.KFP-50 series Concrete Foaming Machine combines feeding machine, water adding device, mixing system, foaming system, delivery system into one machine.
2.The machine shell is made of high strength and precious steel plate and painted at high temperature of 280℃, ensuring long service life.
3.Small size,light weight, convenient transport and loading.
4.Automatic mixing of cement slurry, automatic foaming of foaming agent, automatic delivery of foaming concrete.
5.Frequency converter control of main pump, and digital display of delivery output.
6.Even and steady output of cement slurry, uniform density of foam concrete, stable quality.
7.Delivery system adopts the most advanced hose pumping system, with simple operation, low fault rate, less wearable parts, convenient maintenance,and low cost.
8.The machine saves production costs and improves economical returns.Compared with similar products, the machine can save 50~100kg cement per cubic meter product.
9.Professional technician team, excellent after-sales service, perfect technical guide.
Application:
1.Take cement and coal ash as raw material to make foam concrete.
2.Insulating layer, bedding course, floor heating, filling projects of foam concrete roofing.
3.Other products of foam concrete.
Technical Parameters:
Items |
Unit |
KFP-50 foam concrete pump |
Rated voltage |
V |
380 |
Main motor |
KW |
5.5 |
Output |
m3/h |
10 |
Vertical delivery dist. |
m |
70 |
Horizontal delivery dist. |
m |
600 |
Particle size |
mm |
≤15 |
Max. air pressure |
Mpa |
2.0 |
Output pressure |
Mpa |
1.5 |
Dimensions (length*width*height) |
mm |
1500*800*1300 |
Main machine weight |
Kg |
500 |
Total weight |
Kg |
960 |
|
|
|

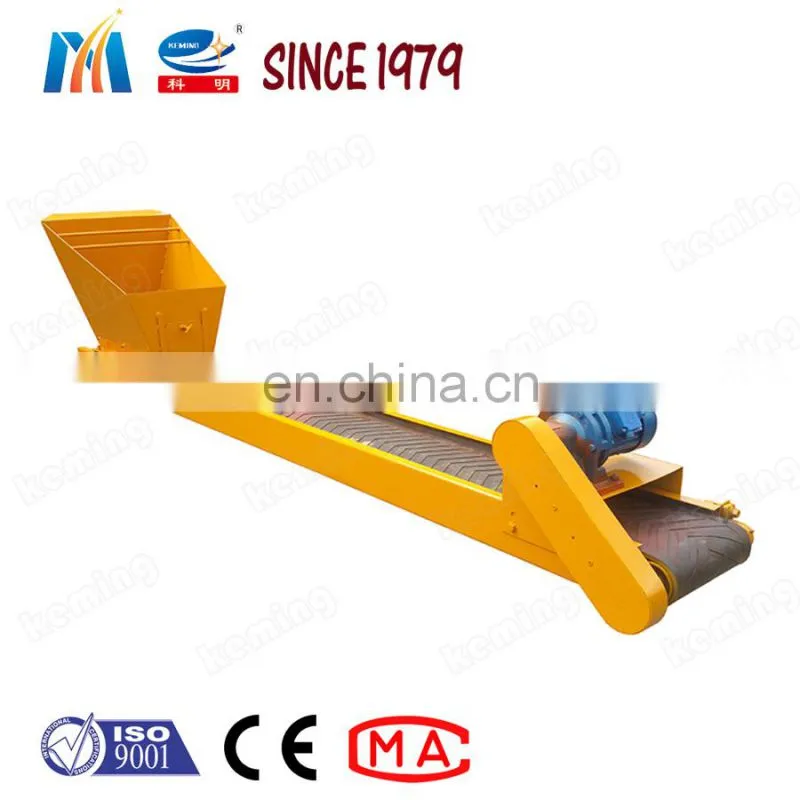

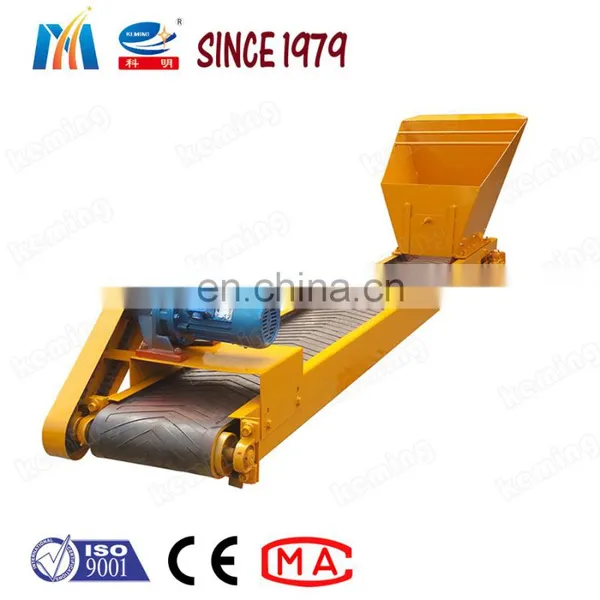

KFP-32 Foam Concrete Pump * KH32 hose pump * Foam generator * Mixer * Belt feeder
|
KFP-50 Foam Concrete Pump * KH50 hose pump * Foam generator * Mixer * Belt feeder |
|
|
|
KFP-70 Foam Concrete Pump * KH50 hose pump * Foam generator * Mixer * Belt feeder |
KFP-100 Foam Concrete Pump * KH65 hose pump * Foam generator * Mixer * Belt feeder |
|
|
|
KFP-120 Foam Concrete Pump * KH65 hose pump * Foam generator * Mixer * Belt feeder
|
KFP-150/180/200 Foam Concrete Pump * KH75/100 hose pump * Foam generator * Mixer * Belt feeder |
|
|
|
KFP-65-20A Foam Concrete Pump * KH65 hose pump * Foam generator * Mixer * Screw feeder |
KFP-65-40A Foam Concrete Pump * KH65 hose pump with air compressor * Foam generator * Mixer * Screw feeder |
Henan Coal Scientific Research Institute Co., Ltd. was established in March 1979. In 1999, it was ranked among the first batch of 242 coal research institutes, and implemented localized management by Henan Province. In 2006, it was transformed successfully into a scientific and technological enterprise, and renamed officially as Henan Coal Scientific Research Institute Co., Ltd.
Achievements: As one of the standard setting unit of national shotcrete equipment industry, the company has obtained more than 170 research and development achievements, more than 110 technical consulting services, 82 technology awards and15 national invention patents and utility model patents.
Application: mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Main Products: wet/dry shotcrete machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine, plastering machine etc.
---Foam Concrete Pump. Cement Foaming Machine
1. Q: Which model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: cement, cement&sand, or other materials
- Capacity (-m3/h) :
- Max aggregate size (-mm) :
- Volume weight (-kg/m3) :
- Delivery distance (horizontally / vertically) :
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, some parts may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
