KBJ30

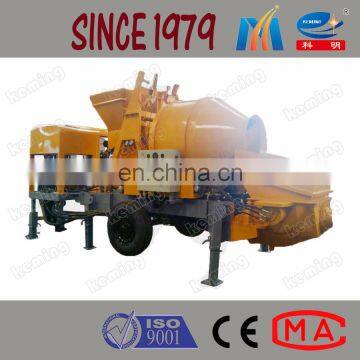

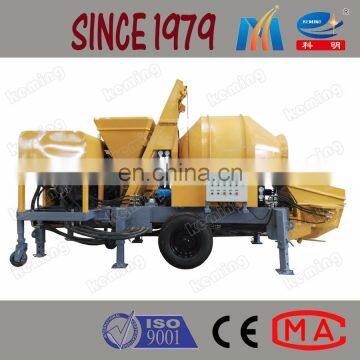

Self-loading Concrete Mixer Pump Mini Concrete Mixer and Pump
Introduction:
1. KBJ Small Concrete Mixer Pump
2. KBJ Mini Concrete Mixer Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
3. Concrete mixer is driven by two mixing motor and grinding wheel rotation, with uniform mixing, thorough discharging and stable performance.
4. Concrete pump has double cylinder hydraulic pump system with reliable performance.
5. Concrete Mixer Pump spare parts are from high quality products of famous brand.
Features:
1. compact structure, flexible movement, easy operation and simple maintenance.
2. remote control with high automatic degree and easy operation, saving labor cost.
3. independent mixing system with even mixing performance and high working efficiency.
4. double cylinder hydraulic pump system with high pumping speed and high working efficiency.
5. Advanced S-tube distribution valve, well sealing techinc, good sealing performance.
6. Centralized lubrication system, low consumption of equipment parts, less maintenance cost.
Application:
1. pump concrete, fine aggregates such as fine stone and mortar etc.
2. pump heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. pump plain concrete and fiber concrete in engineering construction.
4. pump refractory and thermal insulation material.
5. pump afforestation soil in ecological environment construction.
6. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
Technical Parameters:
Model |
/ |
KBJ concrete mixer pump |
Theoretic output |
M3/h |
30 |
Theoretic outlet pressure |
Mpa |
7 |
Theoretic delivery height |
m |
80 |
Theoretic delivery distance |
m |
400 |
Delivery pipe inner diameter |
mm |
Φ125 |
Hopper volume |
L |
400 |
Rated voltage |
V |
~380 |
Main motor power |
Kw |
37 |
Main system max. oil pressure |
MPa |
34 |
Distributing system oil pressure |
MPa |
23 |
Mixing system oil pressure |
MPa |
14 |
Max. Mixing speed |
r/min |
32 |
Oil tank volume |
L |
500 |
Max. aggregate diameter |
mm |
≤30 |
Concrete slump |
mm |
80~200 |
Outer dimension (L*W*H) |
mm |
4200*1950*1800 |
Weight |
Kg |
3000 |
Details:
Henan Coal Scientific Research Institute Co., Ltd. was established in March 1979. In 1999, it was ranked among the first batch of 242 coal research institutes, and implemented localized management by Henan Province. In 2006, it was transformed successfully into a scientific and technological enterprise, and renamed officially as Henan Coal Scientific Research Institute Co., Ltd.
Achievements: As one of the standard setting unit of national shotcrete equipment industry, the company has obtained more than 170 research and development achievements, more than 110 technical consulting services, 82 technology awards and15 national invention patents and utility model patents.
Application: mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Main Products: wet/dry shotcrete machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine, plastering machine etc.
1.Q: Which model should we choose?
A: Many models are provided for your choice. Before suitable model is recommended, please tell us the application, materials, output and pressure you want.
2. Q: Can we have customized model?
A: Yes. Customized model is available according to your actual requirements.
3. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills.
And, we provide online and onsite technical training if necessary.
4.Q: What should we do if there are some problems with the machine?
A: You can refer to the Operate Instruction or call our 24-hour service hotline.
Also, our engineers are available to service overseas.
5.Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
6.Q: How about the package?
A: We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
7.Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for this order.
8.Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
