Home > Products > Industrial High Pressure Humidifier > 8 L/min, 70 Bar Commercial High Pressure Misting Machine for Cooling/ Dust Removal/ Odor Control
8 L/min, 70 Bar Commercial High Pressure Misting Machine for Cooling/ Dust Removal/ Odor Control
- 3000 Set / Sets per Month
- Ningbo
- T/T Credit Card
- Industrial Atomizing Humidifier
- Brass Misting System Cooling Fog High Pressure Misting Nozzles
- Copper High Pressure Pipe Male Adapter Connector for Humidifying Mist System
- Brass Ring Elbows for Pipe Joints for Humidification Spray System
- Brass Cutting Sleeve Tee for SS Pipe Connector for Humidifying Mist System
- Tube Nozzle Brass Terminal Connector with Single Hole for Atomizing Humidification Spray System
Product Details
Brand Name: | BOTUO, BTLN | Place of Origin: | Zhejiang, China | Model Number: | BM4-5-1.1-Z-C |
Material: | Metal | Usage: | Garden | Metal Type: | Brass |
Sprayer Type: | Pump |
Product Description
Commercial High Pressure Misting Machine for Cooling/ Dust Removal/ Odor Control
♦♦ Description of High Pressure Misting Machine
Our company specializes in producing good quality misting systems for Residential/ Hobby, Commercial, Industrial and Agriculture applications. Our total misting products include variety of Mist-fog Nozzles, Connectors, High Pressure Humidifiers, Mist Fans, Portable Misting Systems. With the stable performance, they are widely used to cool Stadiums, Pavilions, Fairs, Cafe, Restaurants, Hotels & Resorts.
The high pressure misting machine’s flow rate ranges from 2L/min to 25L/min, pressure from 50bar to 110bar. It can run up to 400 pieces of 0.15mm misting nozzles.

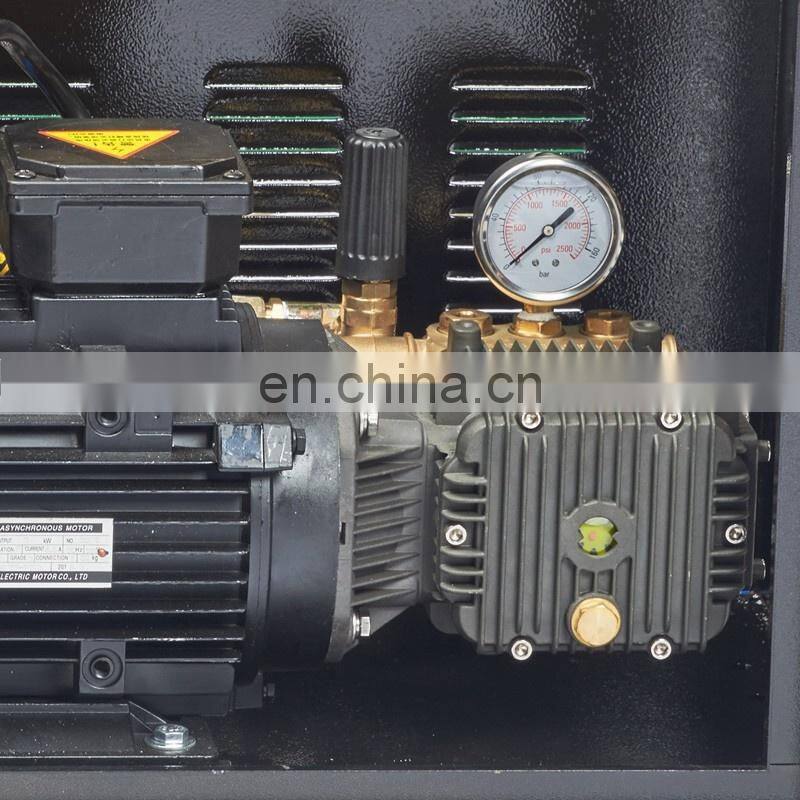

The high pressure misting machine utilizes commercial high pressure plunger pump, which is more durable & credible. The built-in solenoid valve and low water cut off valve will protect the machine.
This high pressure misting machine sprays fine mist, which can be used for cooling down the temperature, humidification control, dust removal or odour improve, even the landscaping.
♦♦ Specification of High Pressure Misting Machine
Item | High Pressure Misting Machine |
Model | BM4-8 |
Machine Type | High Pressure Sprayer |
Sprayer Type | High Pressure Pump |
Condition | New |
Operation | Timer Control |
USAGE | Landscaping, Cooling, Humidification, Dust Suspension, Odor Control |
Flow Rate | 8 L/min |
Pressure | 110 Bar Max. |
Power | 220V/50HZ/ 1.5KW |
Size | 3/8" |
Operation | Timer Control |
Fog Droplet | 5-30 Microns |
Nozzle (0.15mm) No. | 180 pcs |
Cooling Degree | 6-12 ℃ |
Frame | Metal Housing with Fin |
Weight | 50 kg |
Dimension | 72cm x 45cm x 51cm |
Application | Cafe, Restaurant, Supermarket, Backyard, Greenhouse, Oil Station |
After-Service | Available 24x7 |
Warranty | 1 Year |
♦♦ Tech Para.
Model | Flow | Pressure | Power | Speed | Nozzles No. | ||
L/min | bar | psi | W | rpm | 1510BS | 2010BS | |
BM4-1 | 1 | 70 | 1100 | 0.35 | 1450 | 22 | 11 |
BM4-2 | 2 | 70 | 1100 | 0.35 | 1450 | 45 | 22 |
BM4-4 | 4 | 70 | 1100 | 0.55 | 1450 | 88 | 44 |
BM4-8 | 8 | 70 | 1100 | 1.5 | 1450 | 180 | 90 |
BM4-12 | 12 | 70 | 1100 | 2.2 | 1450 | 260 | 130 |
BM4-15 | 15 | 70 | 1100 | 3 | 1450 | 326 | 165 |
♦♦ The High Pressure Misting Machine Contains
- Commercial High Pressure Pump
- Incoming Water Filter
- Stable Transformer
- Precise Timer Controller
- Aluminum Case, Copper Wire Electric Motor
♦♦ Feature of High Pressure Misting Machine
- Good Performance, Durable Quality
- Quiet Operation
- Built-in Solenoid Valve
- Built-in Low Water CUT OFF Valve
- Incoming Water Filter
- Color Metal Enclosure
- Fine Mist Droplet
- Timer Control, Automatic ON/ OFF
- Commercial Triplex Plunger Pump
♦♦ Functions of High Pressure Misting Machine
1. To lower the temperature
Residential Cooling, Outdoor Cooling, Commercial Place Cooling
2. To control the humidity
Industrial, Horticultural: Green house, Garden, Livestock Farming/ Poultry
3. To reduce the dust
Industry process, Bulk powder, Cement plant, Grain silo, Foundry dust, Fly ash control, Waste transfer, Recycling process
4. To Improve the odour
Waste transfer, Chemical plant, Livestock farming/ Poultry, Landfill
♦♦ Application of High Pressure Misting Machine
A. Humidification & Cooling
- Stadiums, Sports Field;
- Greenhouse, Mushroom, Flowers
- Pavilion, Exhibition Fair
- Variety of Stations Exit
- Brew, Woodworking, Cotton Plant, Textile Factory
- Cafe, Restaurant, Hotel & Resort
- Backyard, Swimming Pool, Club
B. Sterilizing, Dedusting, Mosquitos & Flies Killing
- Animal Husbandry Entrance Sterilization;
- Butchery, Food Industry Disinfection;
- Mosquitos & Flies Killing
- Dust Removal in Mine, Flour-mill, Construction Site
- Odor Control in Public
- Hygiene and Disease Control;
C. Landscaping & Special Effects
- Scenic Spot, Garden, Theme Park
- Villas, High-Grade Apartment
- Stage Special Effect, Music Festival
♦♦ Advantage & Benefits
1. Cost-Effectiveness
This high pressure misting machine can fulfill your many requests in different industries, it will save a lot of money, especially, we use high quality materials & components, it’s really cost-effective.
2. Stability & Dependability
This misting machine has the field-proven dependability, it can run 12 hours continuously a day. With the built-in safety mechanism, this machine will serve you for longer time.
3. Superior Service & Support
The support & assistance is available anytime, when you need, the professional response will be effected soon.
♦♦ Product
♦♦ Certificate
♦♦ Trade Details
MOQ | 5 sets High Pressure Misting Machine |
Sample | Sample available, but charged |
Port | Ningbo |
Packaging | Strong plywood box, standard, blank |
Payment | L/C at sight, T/T, Western Union |
Delivery | Within 2-4 weeks after receipt of payment |
Shippment | By air, by sea, by truck / train, express |
♦♦ Our Service
1. We have a strong team that can offer the best service for our customers.
2. Stable product quality, strict quality control.
3. Accredited entity, fast delivery.
4. Available 7x24 Technical Assistance & Support.
5. Reasonable replacement parts service.
♦♦ Our Company
Name | Taizhou Bo Tuo Lini Machinery Co., Ltd. |
Business type | Manufacturer |
Manufacture Experience | 20 years |
Area | 15000 sq.m. |
Production Capacity | 6000sets / Month |
Main Product | High Pressure Misting Machines, High Pressure Misting Machines, High Pressure Fog & Misting Systems, etc. |
Equipment | Modern precise CNC lathes, Drilling Machines, Grinding Machines, Hi-Tech Test Desks and other High Precision Inspection Tools |
Certificate | ISO 9001:2008 management systems, CE Certificate |
Company Advantage | 1. We have a 3A credit honored by state. |
Website |
http://btln.en.china.cn/
|
♦♦ Workroom
♦♦ Production Equipment
♦♦ Testing Equipment
♦♦ Contact Us
Add: 227, New Street, Taizhou 318055,P.R.China
Contacts: Alice
Mobile: +86-15950118900
Tel: 86-576-81819983
Skype: +86-15950118900
QQ: 965918602
Wechat/Whatsapp: +86-15950118900
