Heavy Duty High Pressure Plunger Triplex Pump For Misting Systems
- Ningbo
- T/T Credit Card
You May Like
-
Popular High Pressure Washing Industrial Triplex Pump
-
Dependable Triplex High Pressure Plunger Pump For Car Cleaning
-
Cheap Price High Pressure Washer Street Sweeper Plunger Pump For Car Wash
-
Triplex Plunger Pump for Car Wash 19lpm,100bar
-
Car Wash Pressure Pump 15Lpm,180bar
-
Triplex Plunger Pump for Car Wash 7.5lpm,100bar
Product Details
| Brand Name | BOTUO | Place of Origin | Zhejiang, China | |
| Model Number | TK | |||
| Fuel | Diesel | |||
| Usage | Water | Theory | Jet Pump | |
| Standard or Nonstandard | Standard | |||
Product Description
Heavy Duty High Pressure Plunger Triplex Pump For Misting Systems
♦♦ Description of High Pressure Plunger Triplex Pump
High Pressure Plunger Triplex Pump is designed for varieties of high pressure cleaning applications. The construction of the pump has die-cast crankcase, forged brass head, the internal components include solid ceramic-coated plungers, tapered roller bearing, one-piece connecting rod, and stainless steel checking valves.
The pump has the options of gearbox , belt drive, or coupling drive with electric motor, or gasoline, diesel engine.
♦♦ Specification of High Pressure Plunger Triplex Pump
Item | High Pressure Plunger Triplex Pump |
Model | TK-16.07-High Pressure Plunger Triplex Pump |
Flow Rate | 16.5 L/min (4.4 GPM) |
Pressure | 70 Bar (1015 PSI) |
Power | 4 HP (3KW) |
Rotation Speed | 1450 r.p.m |
Hollow Shaft | 24mm, 28mm Flange On |
Solid Shaft | 24 mm |
Inlet Port | 1/2" |
Discharge Port | 3/8" |
Lubrication | Oil Bath |
Oil Bath Lubrication | 1450, 1750, 2800, 3400 RPM. |
Warranty | 1 Year |
Application | High Pressure Cleaning, Fogging, Humidification, Odor Control |
♦♦ Tech Para.
| Model | Flow Rate | Pressure | Power | Rotation | Plunger | Stroke | |||
| L/min | GPM | bar | psi | hp | kw | rpm | mm | mm | |
| TK16.07 | 16.5 | 4.4 | 70 | 1015 | 4 | 3 | 1450 | 22 | 10 |
| TK 23.07 | 23.2 | 6.1 | 70 | 1015 | 5.5 | 4 | 1450 | 22 | 14 |
| TK 30.07 | 29.9 | 8 | 70 | 1015 | 7.5 | 5.5 | 1450 | 25 | 14 |
| TK 16.23 | 16.5 | 4.4 | 230 | 3335 | 10 | 7.5 | 1450 | 22 | 10 |
| TK 16.28 | 16.5 | 4.4 | 280 | 4060 | 13 | 9 | 1450 | 22 | 14 |
| TK 23.16 | 23.2 | 6.1 | 160 | 2320 | 10 | 7.5 | 1450 | 22 | 14 |
| TK 23.20 | 23.2 | 6.1 | 200 | 2900 | 13 | 9 | 1450 | 22 | 14 |
| TK 23.33 | 23.2 | 6.1 | 330 | 4785 | 20 | 15 | 1450 | 22 | 14 |
| TK 30.15 | 29.9 | 8 | 150 | 2175 | 13 | 9 | 1450 | 25 | 14 |
| Remark: | 1. Max. Pressure 350 bar | ||||||||
| 2. The Rotation speed has 3 versions, 1450, 1740, 2800 rpm | |||||||||
| 3. Hollow Shaft 24 mm; Solid Shaft 24mm | |||||||||
♦♦ Feature of High Pressure Plunger Triplex Pump
- Brass Manifold
- Ceramic Coated Plunger
- HP Seals
- Aluminum Alloy Crankcase, Anti-Corrosion, Heat Dissipation
- Forged Crankshaft, Hardened, Tempered Steel
- Aluminum Alloy Connecting Rod
- Connecting Flange Available
♦♦ Application of High Pressure Plunger Triplex Pump
This High Pressure Plunger Triplex Pump can be used in hot and cold pressure washers, engine driven pressure washers, pressure test equipment, industrial cleaning products, special duty applications.
- Food processing
- High Pressure Cleaning, Dust Suspension, Odor Control, Humidification
- Pharmaceutical & chemical industries
- Livestock, animal husbandry
- Car, Truck, Vehicles Washing
- High Pressure Sewer Jetting
- Others
♦♦ Advantage & Benefits
1. Cost-Effective & Profitable
Compared to other overseas companies, our pricing is more competitive, while the pump quality is very stable, durable, it has been proved by our valued clients around the world, therefore, to make the deal with us will become a profitable & pleased cooperation.
2. Stability & Dependability
We grasp all the technology of this High Pressure Plunger Triplex Pumps, and we utilize the highest quality materials & components, which makes this pressure pump durable & reliable.
3. Superior Service & Support
The technical support & assistance is available anytime, the quick-response will be effected. We will also find the most economical way to the spare parts requests.

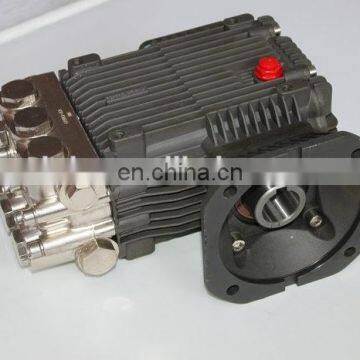

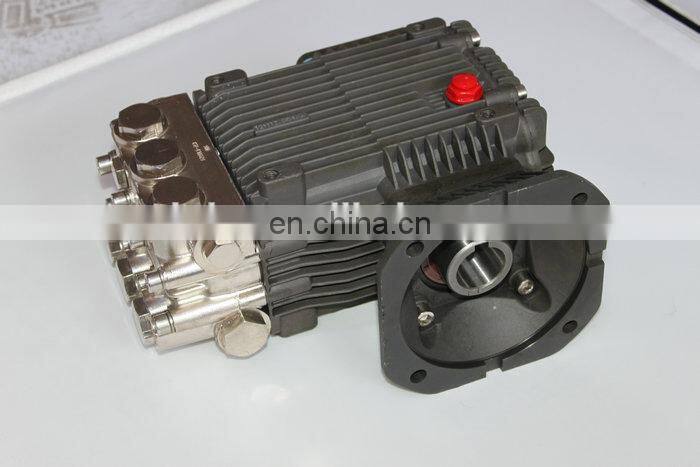

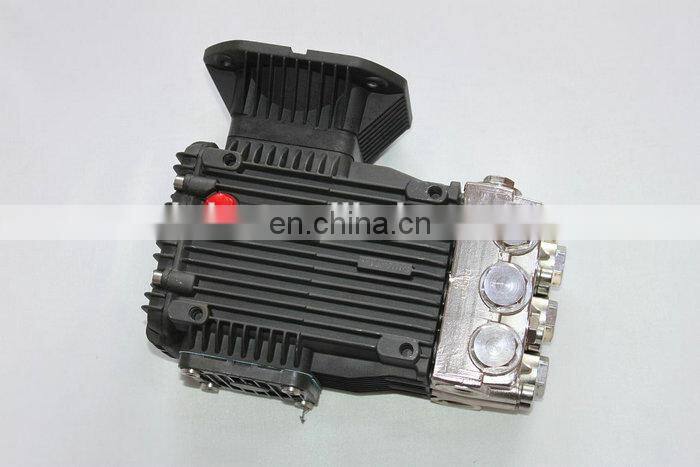

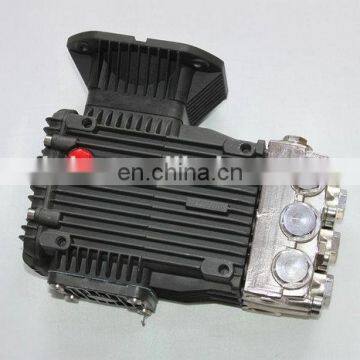

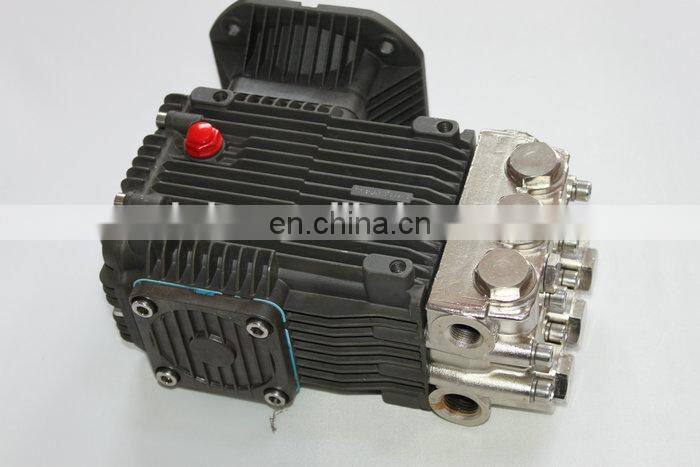

♦♦ Product
♦♦ Certificate
♦♦ Trade Details
MOQ | 10 sets High Pressure Plunger Triplex Pump |
Sample | Sample available, but charged |
Port | Ningbo |
Packaging | Standard Carton Box, Single In One Box |
Payment | L/C at sight, T/T, Western Union |
Delivery | Within 2-4 weeks after receipt of payment |
Shippment | By air, by sea, by truck / train, express |
♦♦ Our Service
1. We have a strong team that can offer the best service for our customers.
2. Stable product quality, strict quality control.
3. Accredited entity, fast delivery.
4. Available 7x24 Technical Assistance & Support.
5. Reasonable replacement parts service.
♦♦ Our Company
Name | Taizhou Bo Tuo Lini Machinery Co., Ltd. |
Business type | Manufacturer |
Manufacture Experience | 20 years |
Area | 15000 sq.m. |
Production Capacity | 10000sets / Month |
Main Product | High Pressure Plunger Triplex Pumps, High Pressure Washers, High Pressure Fog & Misting Systems, etc. |
Equipment | Modern precise CNC lathes, Drilling Machines, Grinding Machines, Hi-Tech Test Desks and other High Precision Inspection Tools |
Certificate | ISO 9001:2008 management systems, CE Certificate |
Company Advantage | 1. We have a 3A credit honored by state. |
Website |
http://btln.en.china.cn/ / |

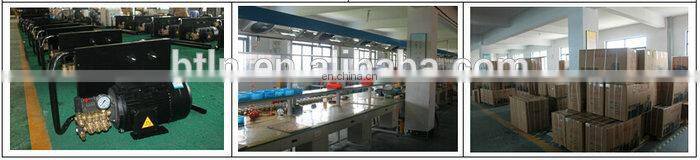

♦♦ Workroom

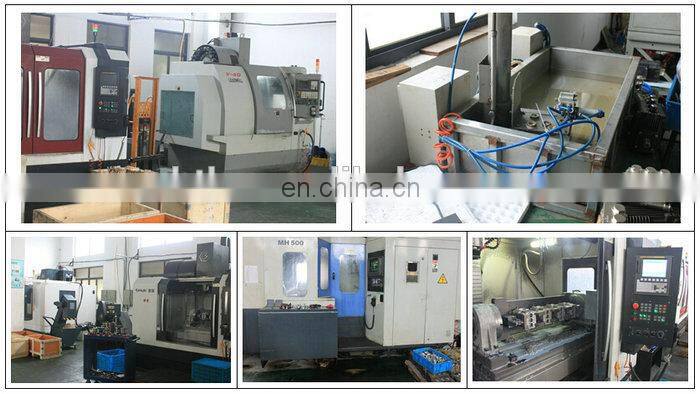

♦♦ Production Equipment
♦♦ Testing Equipment
