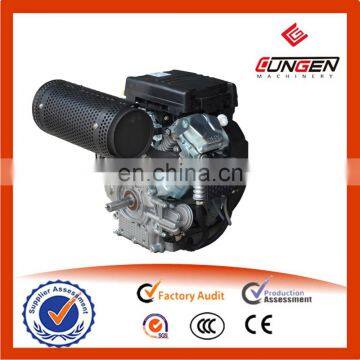

High Quality Double Cylinder 20hp Gasoline Engine 2V78 for Generator

High Quality Double Cylinder 20hp Gasoline Engine 2V78 for Generator thumbnail-1
High Quality Double Cylinder 20hp Gasoline Engine 2V78 for Generator thumbnail-2
High Quality Double Cylinder 20hp Gasoline Engine 2V78 for Generator photo-1
High Quality Double Cylinder 20hp Gasoline Engine 2V78 for Generator photo-2
US$ 480 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
Chungeng
Place of Origin:
Chongqing, China
Model Number:
2V78
Contact Supplier Request Quote Chat Now
Tenglong Shines Electro-Mechanics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chungeng
Place of Origin Chongqing, China
Model Number 2V78
Certification ISO9001, CE
After-sales Service Provided No overseas service provided
Warranty 1 year for key parts
Weight 43kg
Dimension(L*W*H) 455*396*450mm
Condition New
Fuel Gasoline
Start Kick Start
Cold Style Air-Cooled
Stroke 4 Stroke

High quality double cylinder 20hp gasoline engine 2V78 for generator

Product Description

Product Range:

1.Including 2.5hp-20hp gasoline engine

2.Side valve and OHV

3.3600RPM and 1800RPM

4.Recoil start and electric start

Fuel option:gasoline,diesel,kerosene

Product Features:

1.Small and portable                          2.Stable running

3.Compact structure                          4.Low fuel consumption

5.Easy and fast starting and installing

6.Low noise and small vibration

7.Rugged and reliable

8.Lightweight and good quality

The 2V78 Gasoline Engine Parameter

Engine Model

2V78

Engine Type

Double cylinder, 4-Stroke, Air-cooled,OHV

BorexStroke (mm)

78*67

Displacement(cc )

640

Compression Ratio

8:01

Max Output Power (kw/hp)

14.5/20

Engine Speed Rpm

3600

Rated Frequency(HZ)

60

Net Torque(N.m/rpm)

40/2500

PTO Shaft Rotation

Counterclockwise(from PTO shaft side)

Lubrication System

Forced Splash

Ignition system

Transistorized Magneto Ignition(No Touch)

Start System

Recoil Starter/Electric Starter

Governor System

Centrifugal Mechanical

Air Cleaner

Foam filter element

Fuel Tank Capacity

External fuel tank

Oil Capacity

1.4L

Dimension (L*W*H)mm

455*396*450

Net Weight(kg)

 43
