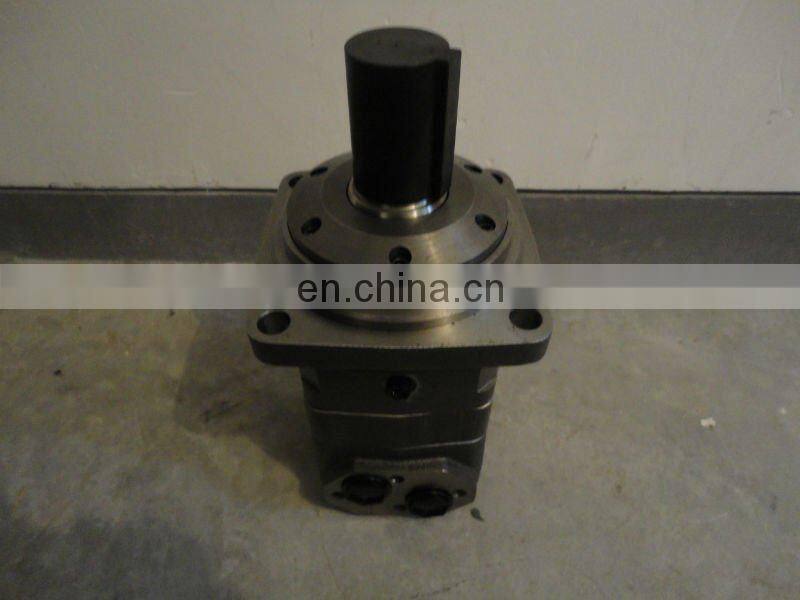

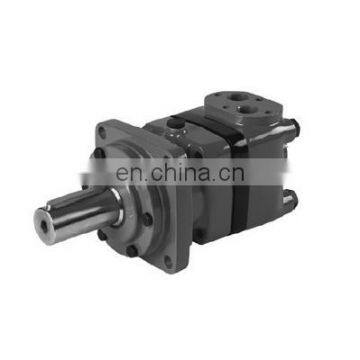

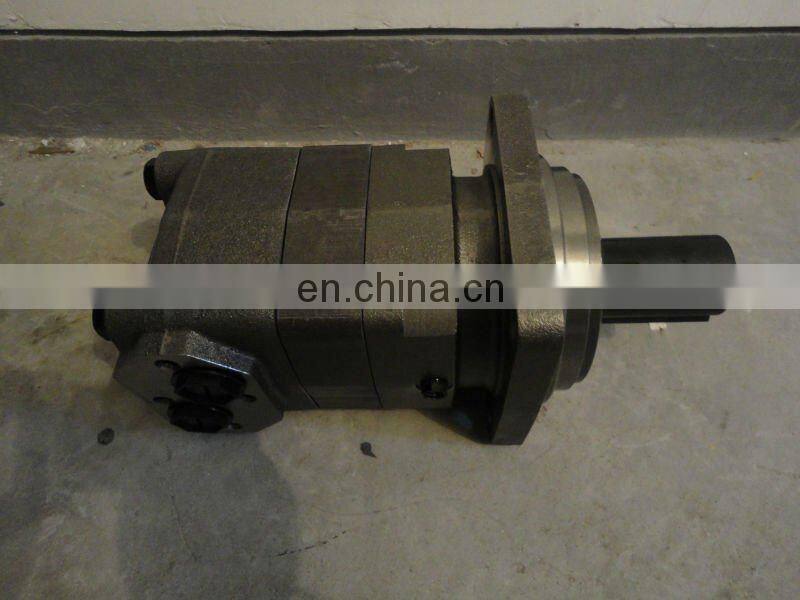

OMV of OMV315,OMV400,OMV500,OMV630,OMV800 cycloid gear hydraulic motor
- 20000 Unit / Units per Month
- Ningbo/Shanghai
- T/T Credit Card
- OMT of OMT160,OMT200,OMT250,OMT315,OMT400,OMT500 hydraulic gerotor motor
- OMP of OMP50,OMP80,OMP100,OMP125,OMP160,OMP200,OMP250,OMP315,OMP400 orbit hydraulic motor
- OMS of OMS80,OMS100,OMS125,OMS160,OMS200,OMS250,OMS315,OMS400,OMS500 orbital hydraulic motor
- Hot selling OMR of OMR50,OMR80,OMR100,OMR125,OMR160,OMR200,OMR250,OMR315,OMR375,OMR395 orbit hydraulic motor
- OSPB of OSPB50,OSPB80,OSPB100,OSPB125,OSPB160,OSPB200,OSPB315,OSPB400,OSPB500,OSPB630,OSPB800 hydraulic steering units
- OSPC of OSPC50,OSPC80,OSPC100,OSPC125,OSPC160,OSPC200,OSPC315,OSPC400 hydraulic steering units
Product Details
Brand Name: | Associated | Place of Origin: | Zhejiang, China | Model Number: | OMV315,OMV400,OMV500,OMV630 |
Type: | Hydraulic Motors |
Packaging Details
Standard export carton/plywood case
Product Description
OMV of OMV315,OMV400,OMV500,OMV630,OMV800 cycloid gear hydraulic motor
1. Compact in design with disc valving motor and geroler type
2. Orbital motor for heavy applications
3. Totally interchangeable with Danfoss, Eaton,and M+S etc.
4. Very competitive price
5. 1 year of warranty
6. Shaft with taper roller bearings ensures high static and dynamic bearing capacity
7. Orbit kit with rollers - Separate integrated valve
8. High volumetric and mechanical efficiency
9. Shaft diameter: 50 MM - Thread: 1" BSP
10. High pressure capacity shaft seal design
11. Design and manufacturing of the spline and drives give the motor durability
12. Wide variety of mounting flanges, shafts,ports and speed provides design flexibility
13. Direction of shaft rotation and speed can be controlled easily and smoothly
14. Best combination of high efficiency and ecnomy in medium duty applications
15. Short delivery time
16. Danfoss OMV model ranges:
151B0200 151B2050 151B2051 151B2052 151B2053 151B2054 151B2055 151B2056
151B2057 151B2058 151B2059 151B2060 151B2061 151B2062 151B2063 151B2064
151B2065 151B2066 151B2067 151B2080 151B2081 151B2082 151B2083 151B2084
151B2085 151B2150 151B2151 151B2152 151B2153 151B2154 151B2155 151B2156
151B2157 151B2158 151B2159 151B2160 151B2161 151B2162 151B2163 151B2164
151B2170 151B2171 151B2172 151B2173 151B2174 151B2183 151B2184 151B2185
151B2186 151B2187 151B2188 151B2189 151B2190 151B2191 151B2192 151B3000
151B3001 151B3002 151B3003 151B3004 151B3005 151B3006 151B3007 151B3008
151B3009 151B3010 151B3011 151B3012 151B3013 151B3014 151B3015 151B3016
151B3017 151B3018 151B3019 151B3020 151B3021 151B3022 151B3023 151B3024
151B3025 151B3026 151B3027 151B3028 151B3029 151B3030 151B3031 151B3032
151B3033 151B3034 151B3035 151B3036 151B3037 151B3038 151B3039 151B3040
151B3041 151B3100 151B3101 151B3102 151B3103 151B3104 151B3105 151B3106
151B3107 151B3108 151B3109 151B3110 151B3111 151B3112 151B3113 151B3114
151B3115 151B3116 151B3117 151B3118 151B3119 151B3120 151B3121 151B3122
151B3123 151B3124 151B3125 151B3126 151B3127 151B3128 151B3129 151B3200
151B3201 151B3202 151B3203 151B3204 151B3205 151B3206 151B3207 151B3208
151B3209 151B3210 151B3211 151B3212 151B4000 151B4001 151B4002 151B4003
151B4004 151B4005 151B4006 151B4007 151B4008 151B4009 151B4010 151B4011
151B4012 151B4021 151B4022 151B4023 151B4024 151B4025 151B4026 151B4027
151B4028 151B4029 151B4030 151B4031 151B4032 151B4033
Technical Specifications
Part no. | Displace. ml/r | Max. cont. press. bar | Max. cont. rpm | Max. cont. torque N.m | Max. cont. power Kw |
OMV315 | 314,5 | 200 | 510 | 92 | 42.5 |
OMV400 | 400,9 | 200 | 500 | 118 | 53.5 |
OMV500 | 499,6 | 200 | 400 | 146 | 53.5 |
OMV630 | 629,1 | 180 | 315 | 166 | 48.0 |
OMV800 | 801,8 | 160 | 250 | 188 | 42.5 |
