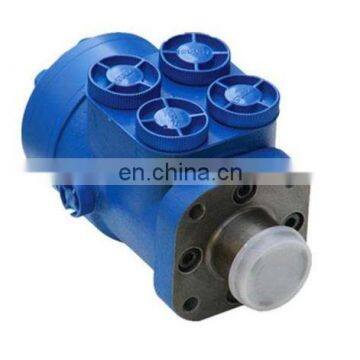

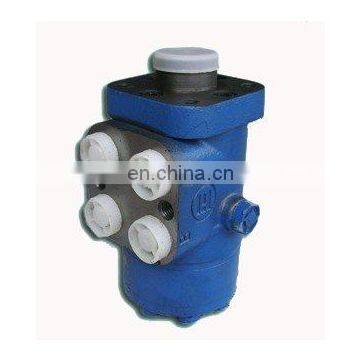

BZZ series of BZZ1-E80,BZZ1-E100,BZZ1-E125,BZZ1-E160,BZZ1-E200,BZZ1-E250,BZZ1-E280,BZZ1-E315,BZZ1-E400,BZZ1-E500 hydraulic steering unit
1. Totally interchangeable with Danfoss, Eaton and M+S original.
2. Consists of a rotary and rotary meter
3. Via a steering column the steering unit is connected to the steering wheel of vehicle
4. When the steering wheel is turned, oil is directed from the steering system pump via the rotary valve and rotary meter to the cylinder ports L or R (depend on the direction of turn)
5. The rotary meter the oil flow to the steering cylinder in proportion to the angular rotation of the steering wheel
6. The is used in steering low speed and heavy duty vehicles, such as engineering machinery,forklift,tractor,combine harvester and hydraulic rudder of ships etc.
7. Low cost and high reliability
8. No load reaction on the steering wheel comfortable
9. Manual operation available when the pump doesn’t work
10. Low control torque, continuous operation
11. According to the system, different function and pressure level valves available
12. Very competitive price
13. 1 year of warranty
14. Short delivery time
Technical Specificatons
Model | Displacement (ml/r) | Flow (l/min) | Max. inlet pressure(Mpa) | Max. continuous back pressure(Mpa) | Weight(Kg) | Overall length |
BZZ1,3-E80 | 80 | 6 | 16 | 2.5 | 5.0 | 160 |
BZZ1,3-E100 | 100 | 7 | 5.27 | 162.5 | ||
BZZ1,3-E125 | 125 | 9.5 | 5.43 | 165.5 | ||
BZZ1,3-E160 | 160 | 12 | 5.75 | 170.5 | ||
BZZ1,3-E200 | 200 | 15 | 6.08 | 175.5 | ||
BZZ1,3-E250 | 250 | 19 | 6.48 | 181.5 | ||
BZZ1-E280 | 280 | 21 | 6.78 | 186.5 | ||
BZZ1-E315 | 315 | 24 | 7.13 | 191.5 | ||
BZZ1-E400 | 400 | 30 | 7.78 | 201.5 | ||
BZZ1-E500 | 500 | 38 | 8.67 | 214.5 | ||
BZZ1-E630 | 630 | 48 | 9.72 | 231.5 | ||
BZZ1-E800 | 800 | 60 | 11.18 | 253.5 | ||
BZZ1-E1000 | 1000 | 75 | 12.8 | 279.5 |
